Success in water beverage production requires focus on maximum output and efficiency
Home / Product / Bottle Blowing Machine / Standard Blowing Machine / 1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine

1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

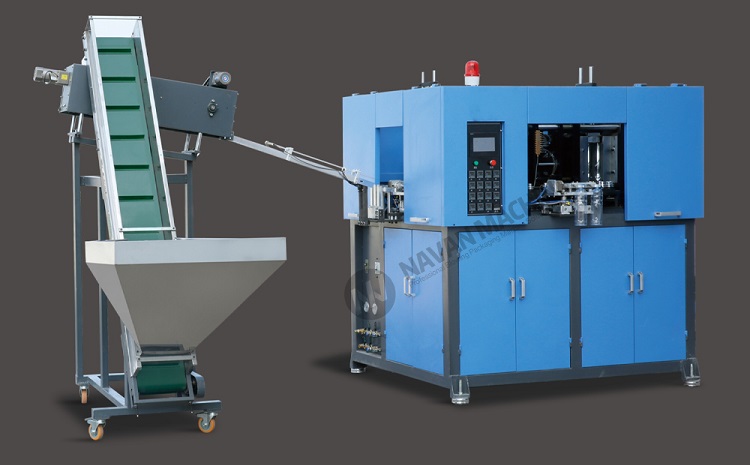

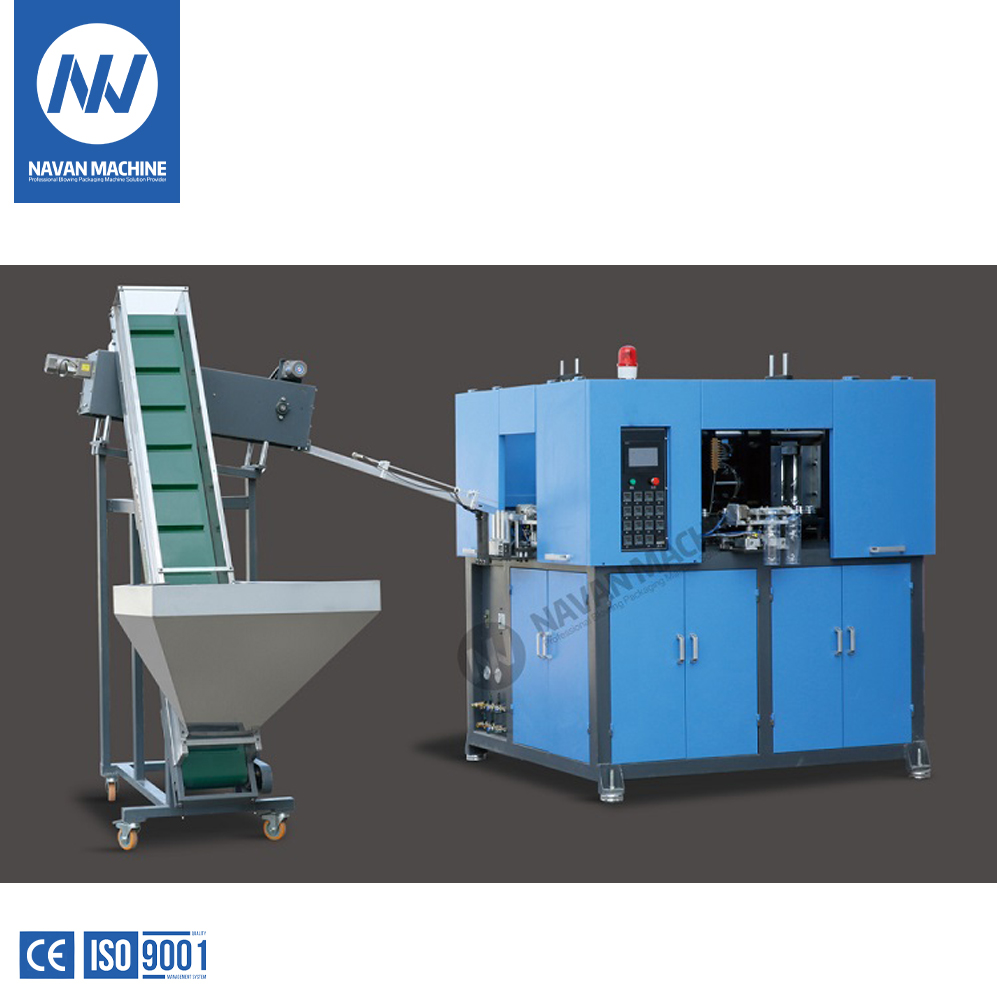

Blowing machine for small bottle for reference (one set of blowing machine + one set of preform loader)
Full automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.

Features
1, Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
2, The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3, The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4, The machine can be operated in the step-by-step mode and the semi-auto mode.
5, The machine is small with low investment, easy and safe to operate .

  • NB Series

  • NAVAN MACHINE

  • 8477309000

Capacity:
Please select
Bottle volume:
Please select
Application:
Availability:

1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine


Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine

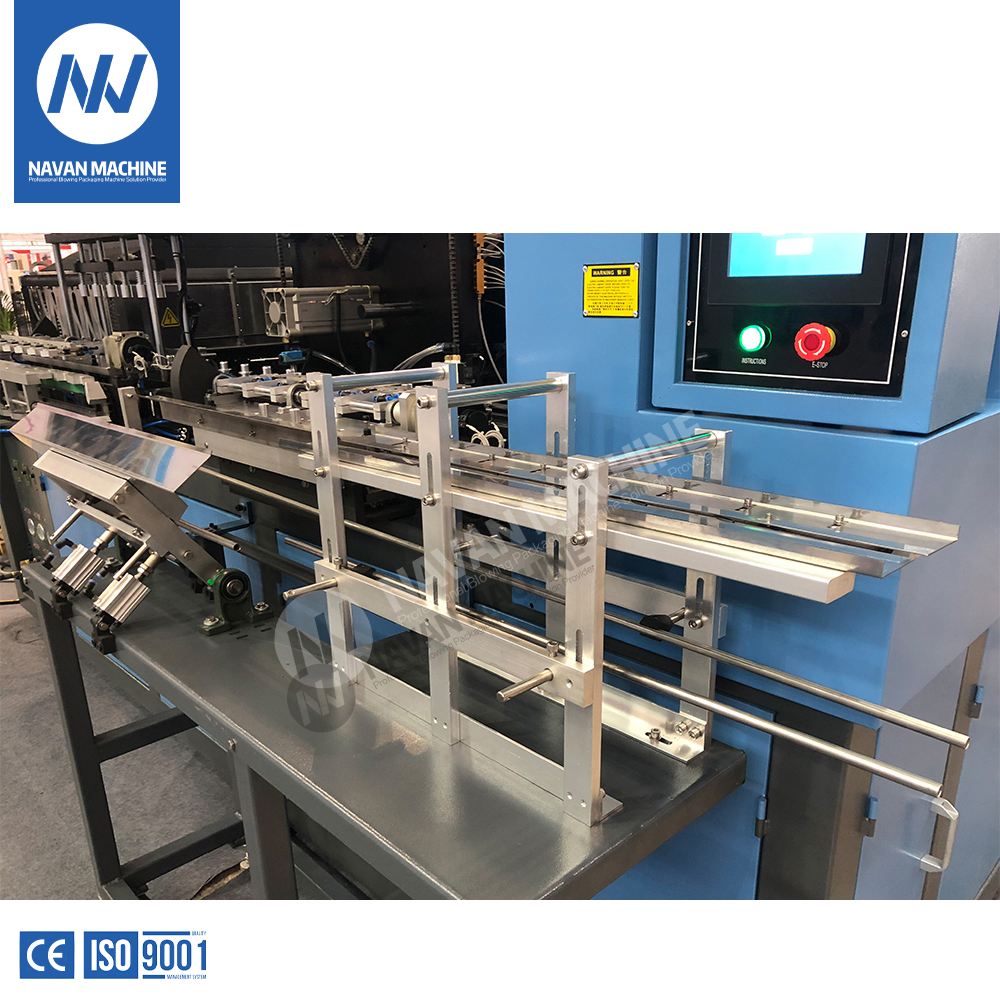

New Auto Preform Unscrambler System.

*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.

*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.

1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine

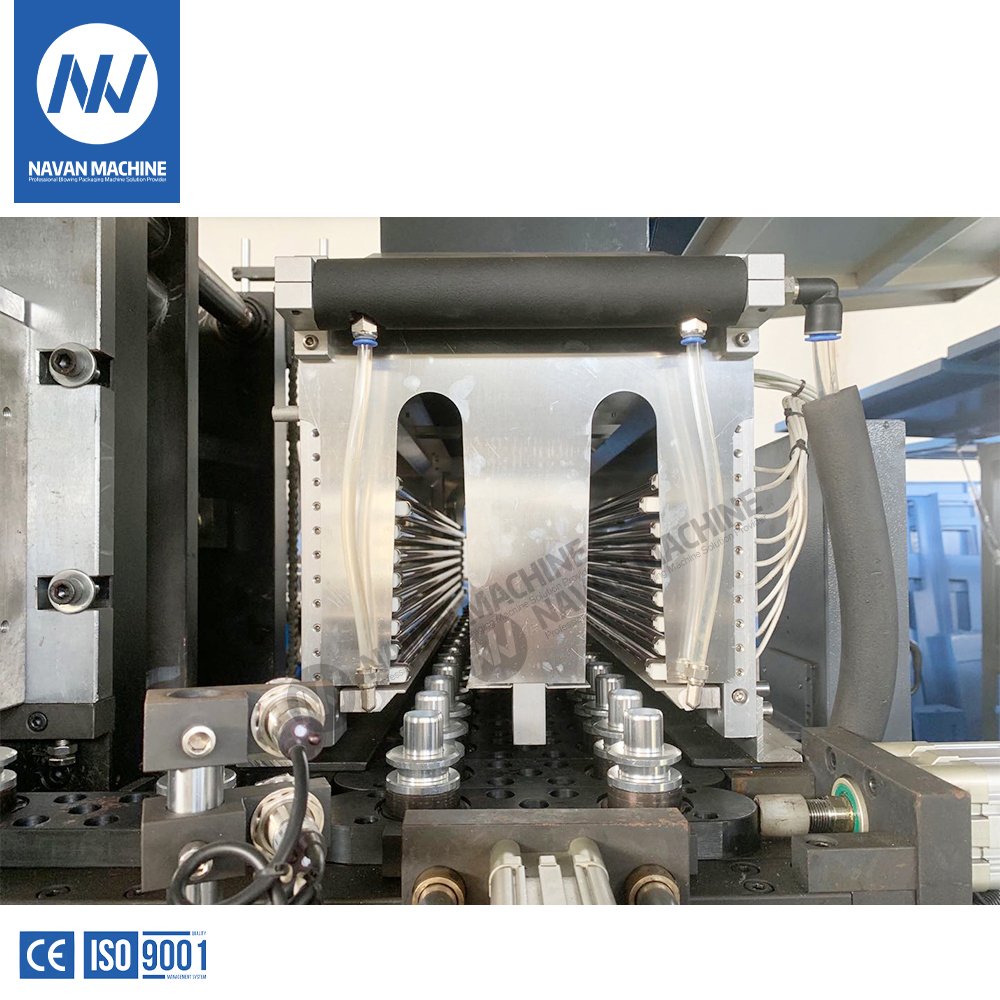

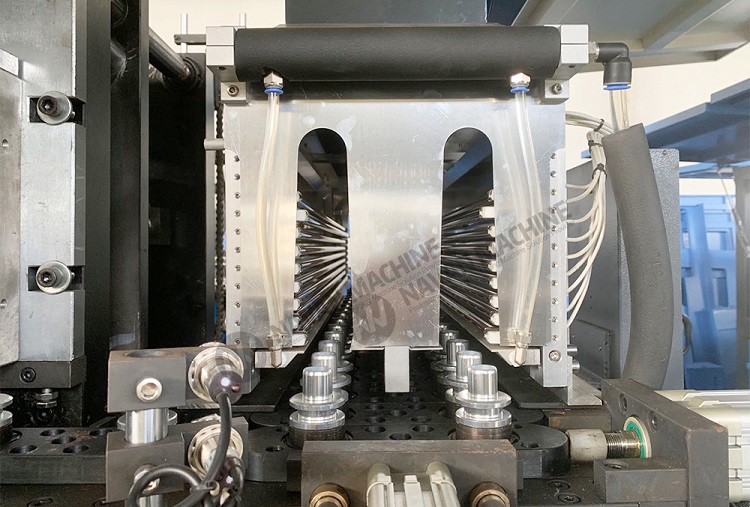

New Heating System.

*Perfect heating system design decrease power consumption.

*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.

1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine

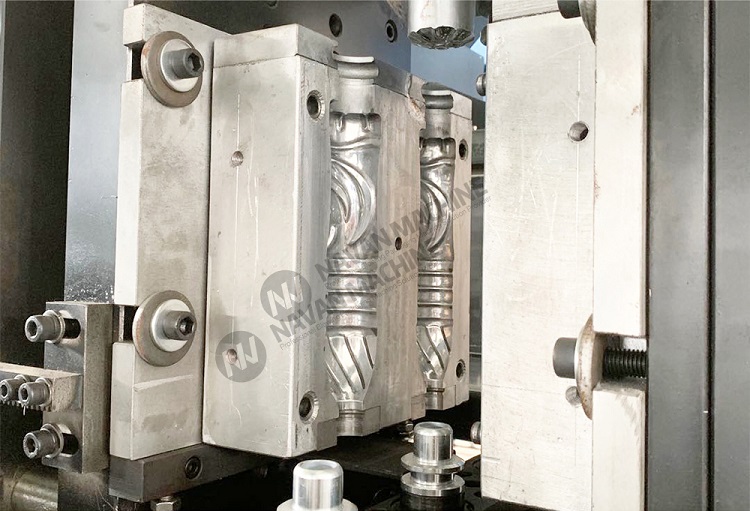

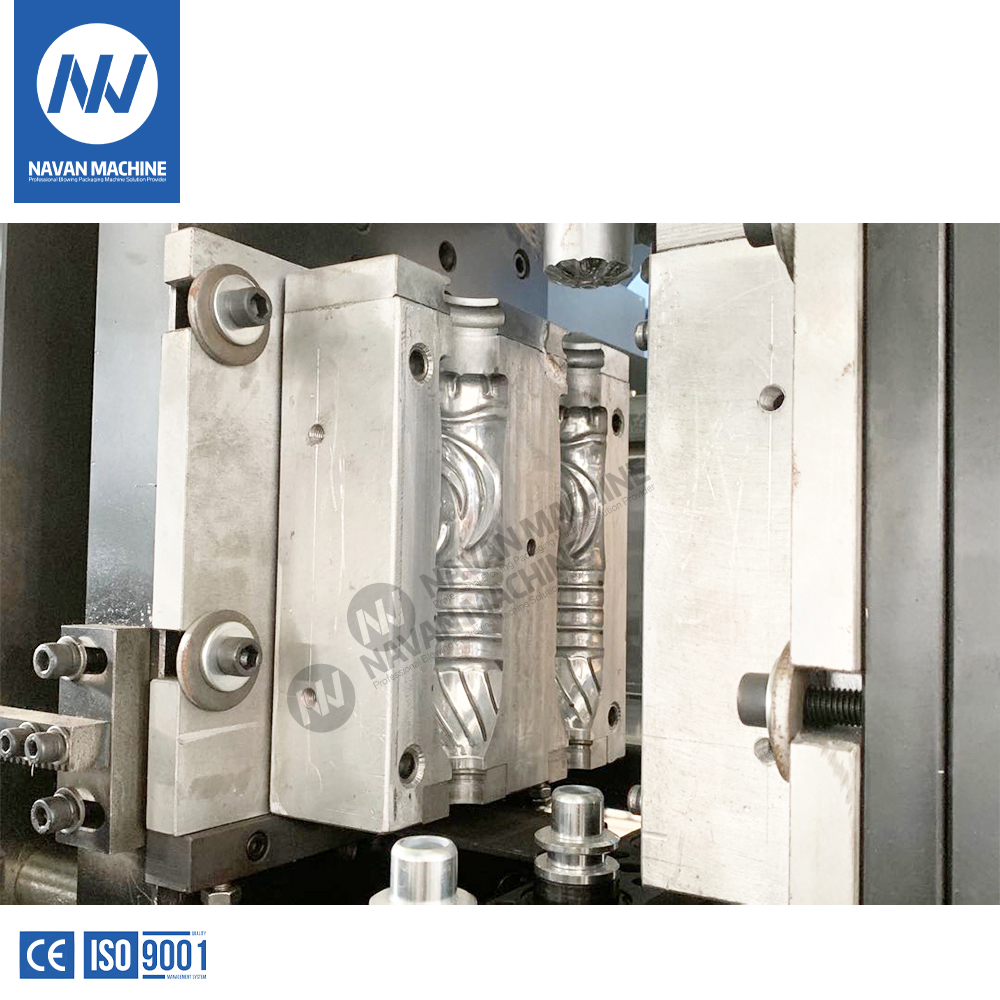

Easy To Change Bottle Shape.

*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.

1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine

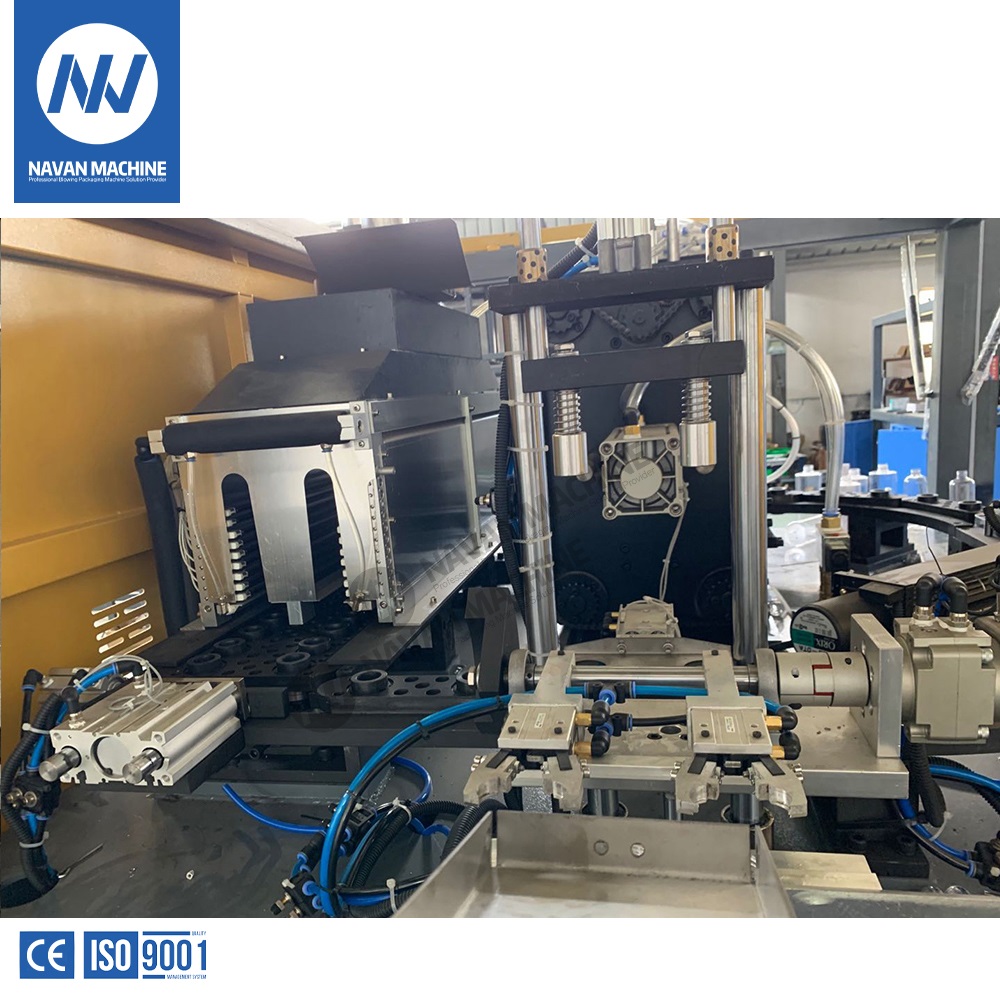

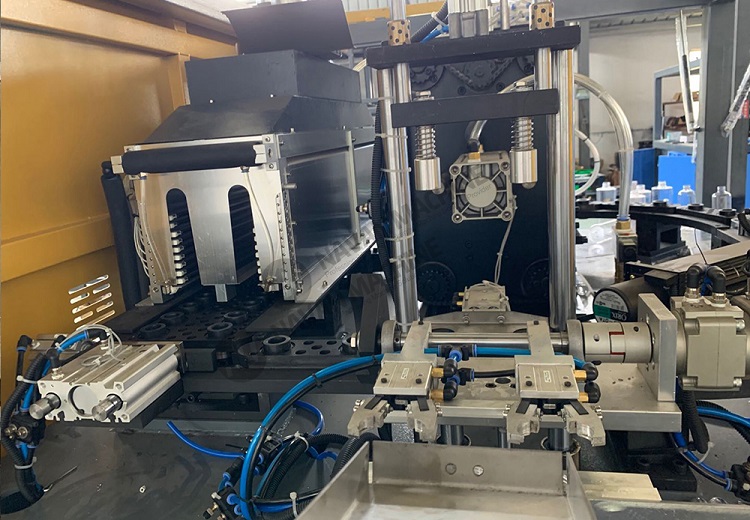

Servo Technology Innovation On Clamping System & Stretching.

* Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.

* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.

1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine

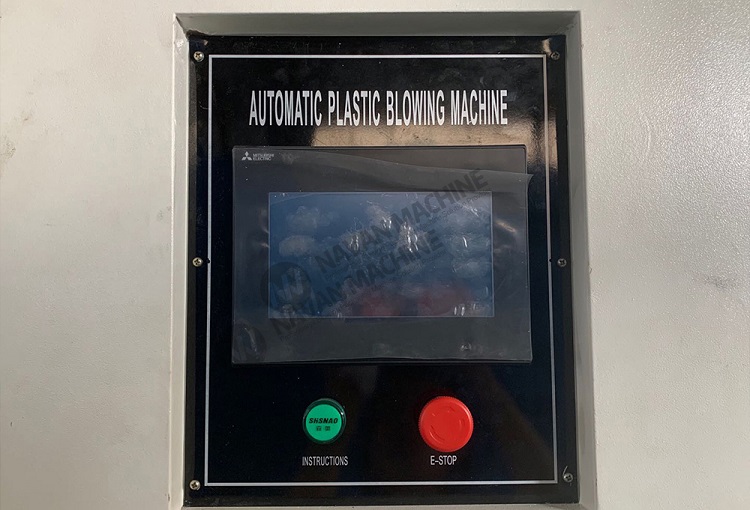

Intelligent Human-Machine Interface.

*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday

*Failure warning and troubleshooting.

1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine

Intelligent Human-Machine Interface.

*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday

*Failure warning and troubleshooting.

1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine


1800-2200BPH 0.1-2L Full Automatic PET Bottle Stretch Blowing Machine

Navan bottle design

Max Container Volume Itr

2

Max, Neck Diameter   mm

50

Max Container Diameter  mm

110

Max Container Height mm

320


Technical Parameters:

Model
NB-2000
NB-2000S
Molding
Clamping Force kg
18000
14000
Clamping Stroke mm
125
125
Stretching strok mm
450
450
Bottom Stroke mm
40/70
40/70
Cavity Spacing mm
120
120
Number of Cavity Cavities
2
2
Carriage Unit pcs
66
66
Theoretical Output
bph
1800-2200
1800-2200
Electrical System
Total Power kw
26
26
Heating Power kw
16x1.5KW=24
16x1.5KW=24
Number of Lamp Layers Layers
8
8
Air System
Operating Pressure kg/cm²
7-9
7-9
Low Pressure Air Consumpt Itr/min
1600
1600
Blowing Pressure kg/cm²
20-30
20-30
High Pressure Air Consumpt Itr/min
1600
1600
Chiller
Operating Pressure kg/cm²
2-4
2-4
Temperature Range ℃
10-12
10-12
Consumption kcal/hr
2000
2000
Flow Rate Itr/min
130
130
Main Machine
Main machine dimensions mm(L*W*H)
1950 x1850x2100
1950x1850x2100
Main Machine Weight kg
1950
1950
Preform Loader
Preform Loader Dimensions mm(L*W*H)
2150x1450x2450
\
Preform Loader Weight kg
450
\

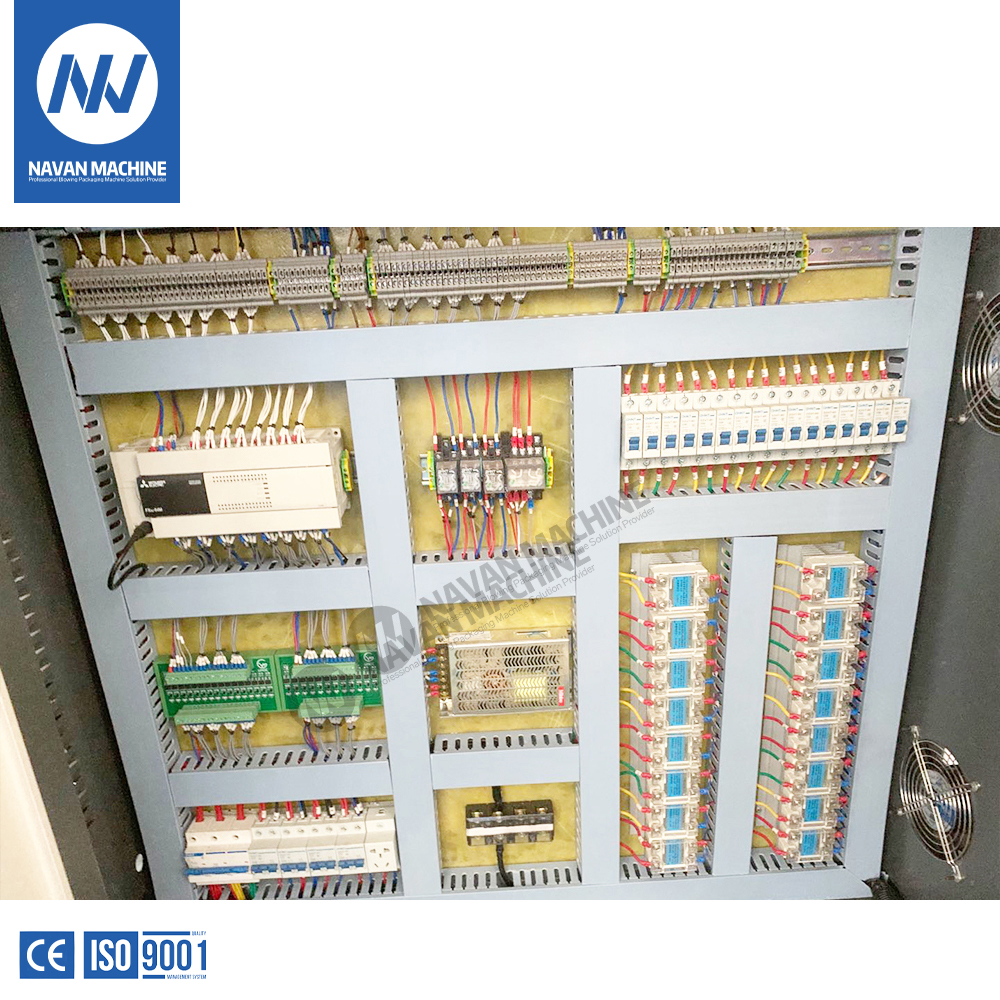

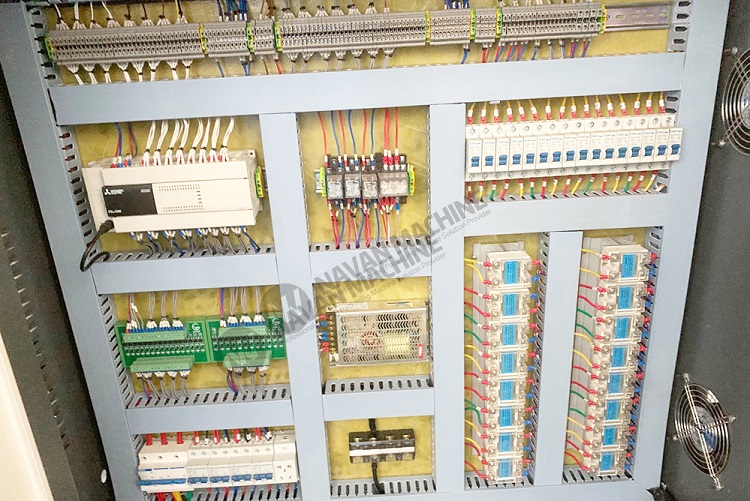

Electrical configuration

Electrical configuration

Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
