Juice , Eneregy Drink , Flavour Drink ...

Success in beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety, cost optimization and sustainability. Whether you're producing hot filling or medium temperature filling beverage , our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.

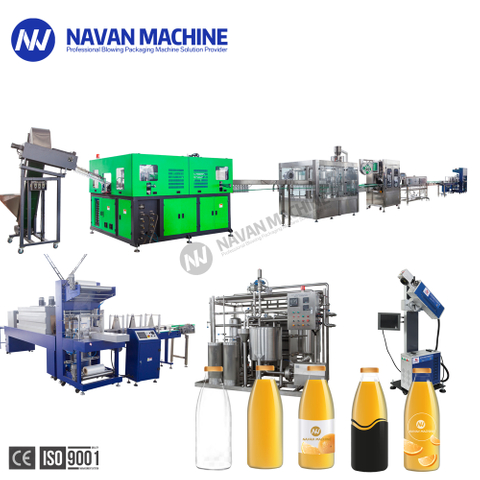

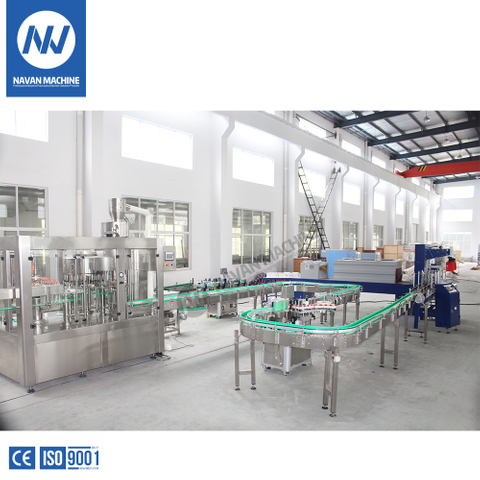

A complete hot drink packaging line solution from NAVAN leverages our knowledge of the entire hot drink bottling process, from minimizing waste of resources to helping you achieve your sustainability targets, to ensuring that your bottle is durable and attractive to consumers. With everything centered around one supplier, you get wide-ranging expertise, line equipment and ongoing services. This ensures high quality and efficiency from packaging to equipment, fast ramp-up and beyond.



Model	CGFR8-8-4	CGFR12-12-5/6	CGFR18-18-6	CGFR24-24-8
Application	Flavour juice , fruit juice , energy drink ,and other non-carbonated drink
Production capacity (500ml)	2000	4000	6000-7000	10000-12000
Suitable bottle specification	Volume=100-2000ml Diameter φ=50-100 Bottle height H=150 ~340mm		Volume=100-2500ml Diameter φ=50-108 Bottle height H=150 ~350mm
Bottle type	Plastic bottle / PET Bottle
Motor power(kw)	Main motor 1.9kw	Main motor 3.5kw	Main motor 4.0kw	Main motor 4.8kw
Features	No Bottle No Filling  No Bottle No Capping
Overall dimensions (mm)	1900*1420*2000	2050*1800*2400	2580*2100*2200	2780*2200*2200
Weight (kg)	1500	2500	3500	4500
Model	CGFR32-32-10	CGFR40-40-10/12	CGFR50-50-12/15	CGFR60-60-15
Application	Flavour juice , fruit juice , energy drink ,and other non-carbonated drink
Production capacity (500ml)	16000-17000	19000-20000	23000-24000	34000-36000
Suitable bottle specification	Volume=100-2000ml Diameter φ=50-108 Bottle height H=150 ~340mm
Bottle type	Plastic bottle / PET Bottle
Motor power(kw)	Main motor 7.6kw	Main motor 8.3kw	Main motor 9.6kw	Main motor 15Kw
Features	No Bottle No Filling; No Bottle No Capping
Overall dimensions (mm)	3800*2800*2600	4600*2800*2600	5450*3300*2600	6500*4500*2600
Weight (kg)	6500	8500	9800	12800



With years of juice filling experience, we continue to lead the industry with more than 1,00 proven NAVAN Machine Hot Fill solutions worldwide. Over the last thirty years, we have significantly reduced the weight of heat-resistant bottles while retaining their durability and improving design opportunities.

Achieving lightweighting and design freedom , NAVAN Machine Juice Production Line provide:

1 - Package design , workshop design , produciton design ...
2 - More customisation and design freedom
3 - Improved hygiene and efficiency
4 - Full process control with fewer operators.



NAVAN Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years.
