Products Details  |
CGFD18-18-6
NAVAN MACHINE
8422301090
| Capacity: | Please select |
|---|---|
| Filling Range: | Please select |
| Filling Precision: | Please select |
| Control System: | Please select |
| Feature: | Please select |
| Usage: | Please select |
| Function: | Please select |

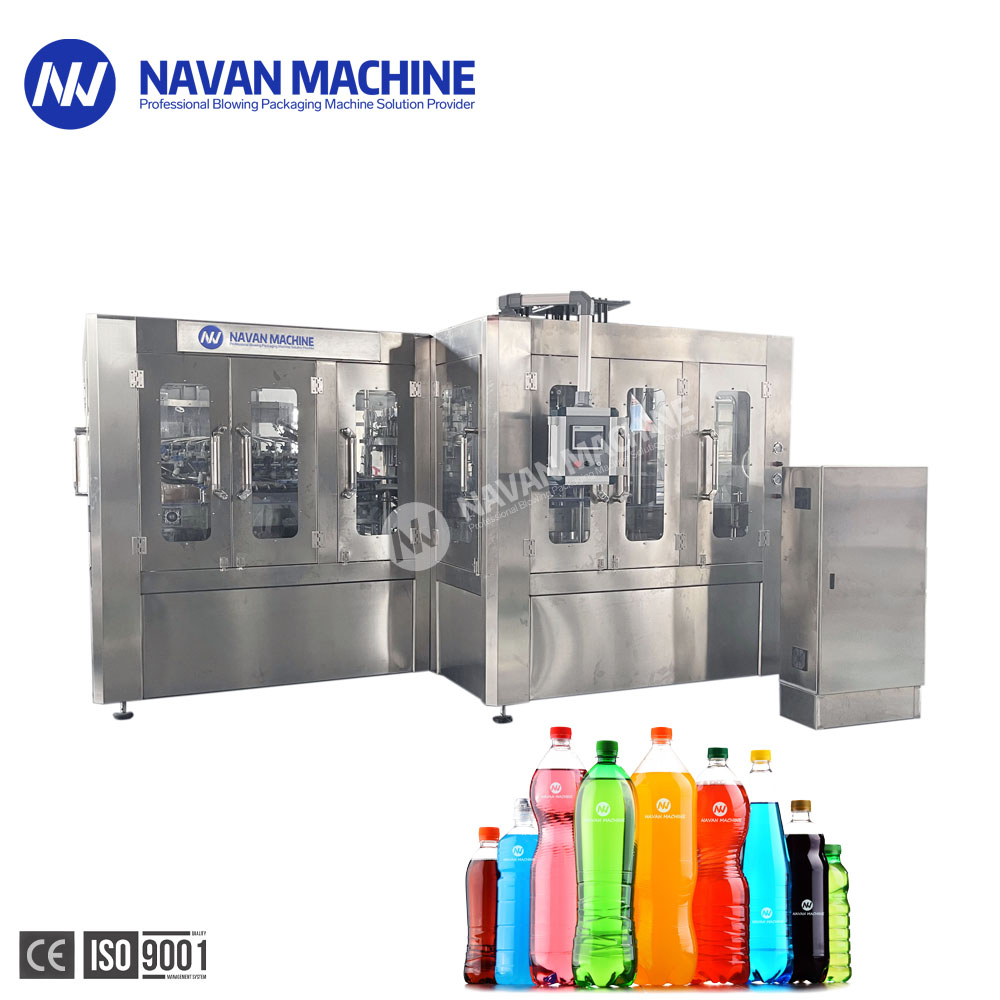

Carbonated Soft Drinks Filling Line Automatic Carbonated Becerage Bottling Machine
The machine is suitable for filling and sealing of carbonated drink , craft beer and beverage in the industrial of PET bottle, PLA bottle , Glass bottle beverage field. The filling and seaming are of integral design. The principle of equal pressure filing is adopted.
During filing, after the empty bottle reaches into the bottle lifting cylinder after passing through the pneumatic triplex parts, and the empty bottle is raised and the conical seal gasket under the filling valve is sealed. The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder. The air is filled into the empty bottle to form equal pressure. From a large material barrel, the beer passes through small conduits and flows into the empty bottle. When the liquid level in the empty bottle blocks the gas return pipe mouth, then the filling stops. Under the action of arm, the de-foaming valve will slowly discharge the air and pressure, the can supporting cylinder will continue to fall. After it is discharged, the bottle is sent to the sealing machine for sealing by the hook chain that runs synchronously.
During the sealing, the sealing wheel carries out pre-sealing and then real sealing. After it is sealed, the bottle is pushed out by the beating head of the cap beating mechanism and then dialed by dial to the conveyor belt for conveying.
Product Description
Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
Carbonated Soft Drinks Filling Line Automatic Carbonated Becerage Bottling Machine
The machine is suitable for filling and sealing of carbonated drink , craft beer and beverage in the industrial of PET bottle, PLA bottle , Glass bottle beverage field. The filling and seaming are of integral design. The principle of equal pressure filing is adopted.
During filing, after the empty bottle reaches into the bottle lifting cylinder after passing through the pneumatic triplex parts, and the empty bottle is raised and the conical seal gasket under the filling valve is sealed. The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder. The air is filled into the empty bottle to form equal pressure. From a large material barrel, the beer passes through small conduits and flows into the empty bottle. When the liquid level in the empty bottle blocks the gas return pipe mouth, then the filling stops. Under the action of arm, the de-foaming valve will slowly discharge the air and pressure, the can supporting cylinder will continue to fall. After it is discharged, the bottle is sent to the sealing machine for sealing by the hook chain that runs synchronously.
During the sealing, the sealing wheel carries out pre-sealing and then real sealing. After it is sealed, the bottle is pushed out by the beating head of the cap beating mechanism and then dialed by dial to the conveyor belt for conveying.
Product Description
Washing Parts.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling Parts.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Capping Parts.
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
