NAVAN edible oil filling machine adopts both linear rotary filling, machine-electrical integrated control, superior performance, world class mechanical design concept. This oil filling equipment is mainly suitable for the quantitative filling of olive oil, edible oil, vegetable oil, peanut oil and other oils.
NPF Oil Series
NAVAN MACHINE
8422301090
Capacity: | Please select |
---|---|
Bottle volume: | Please select |
Application: | Please select |
Availability: | |

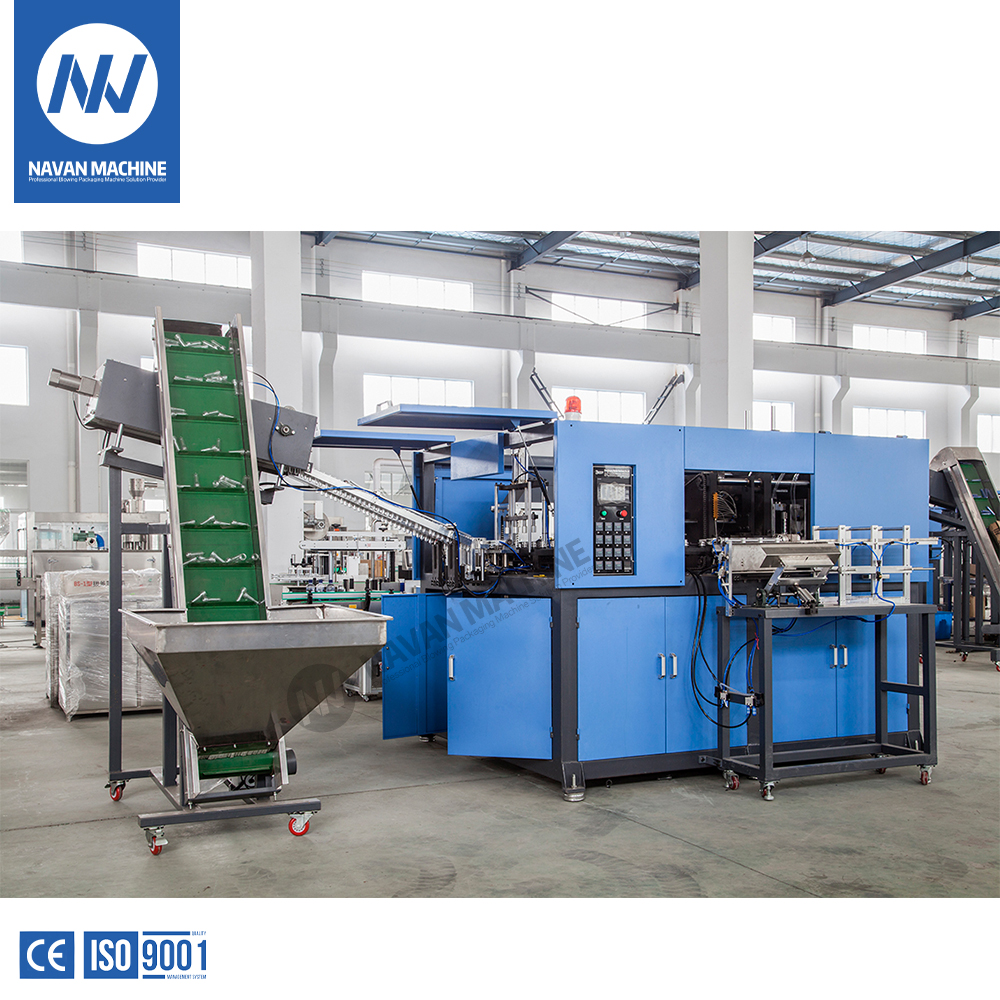

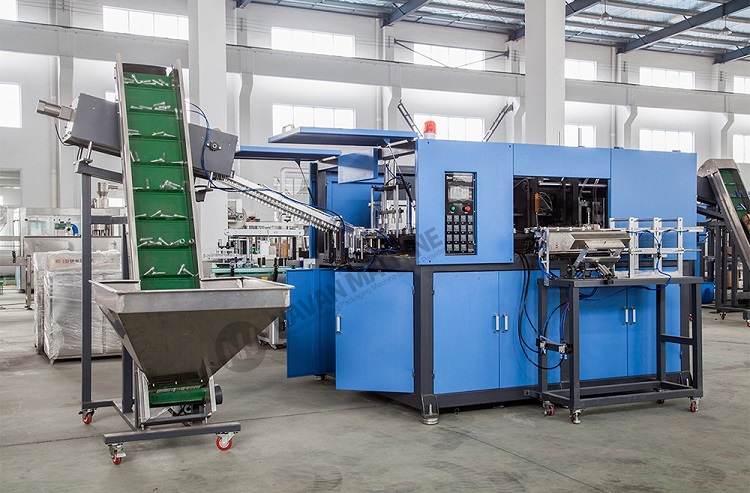

1- NAVAN Machine Blow Molding Machine
1 / NAVAN Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air

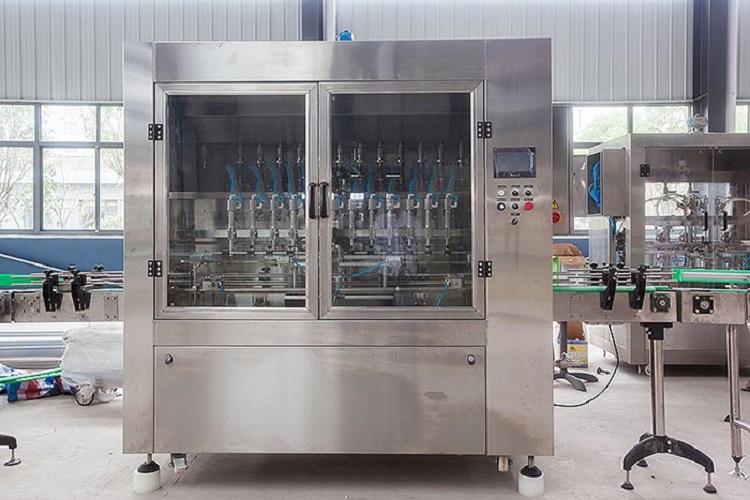

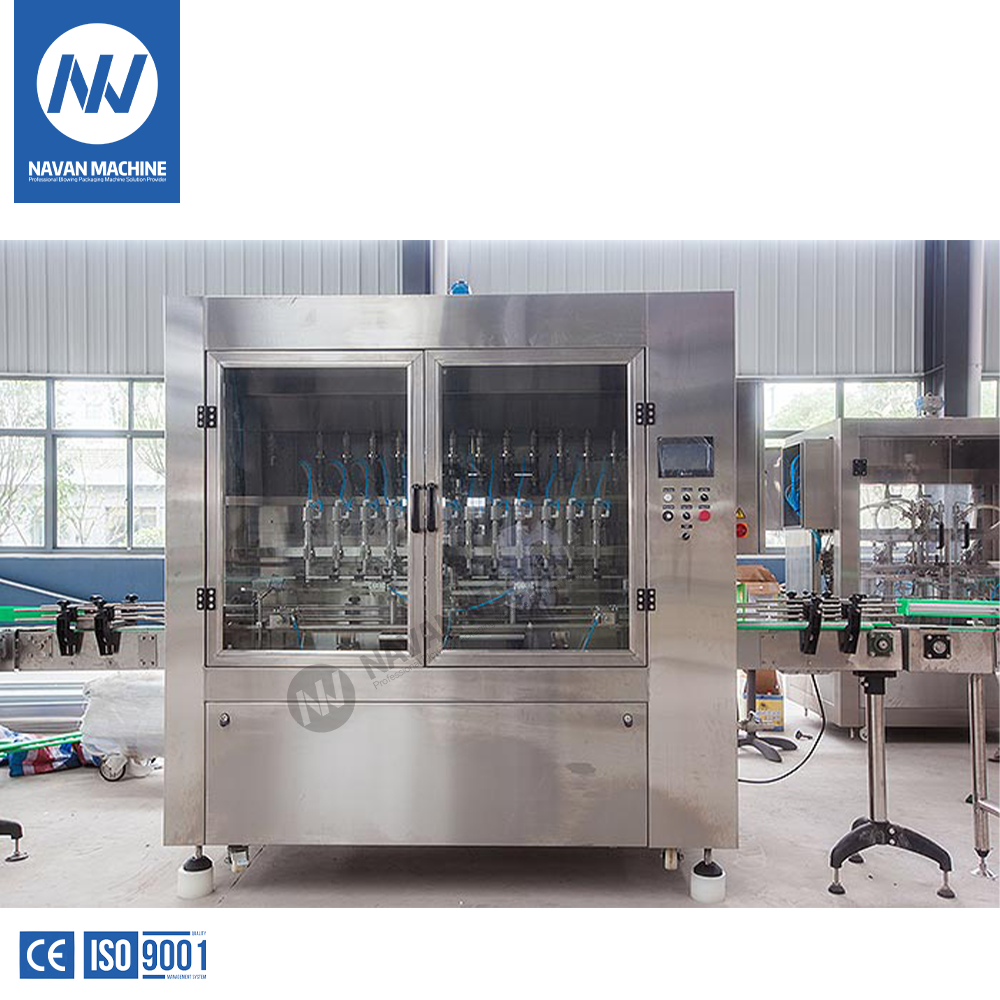

2-1 - NAVAN Linear Type Oil Filling Machine
1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime

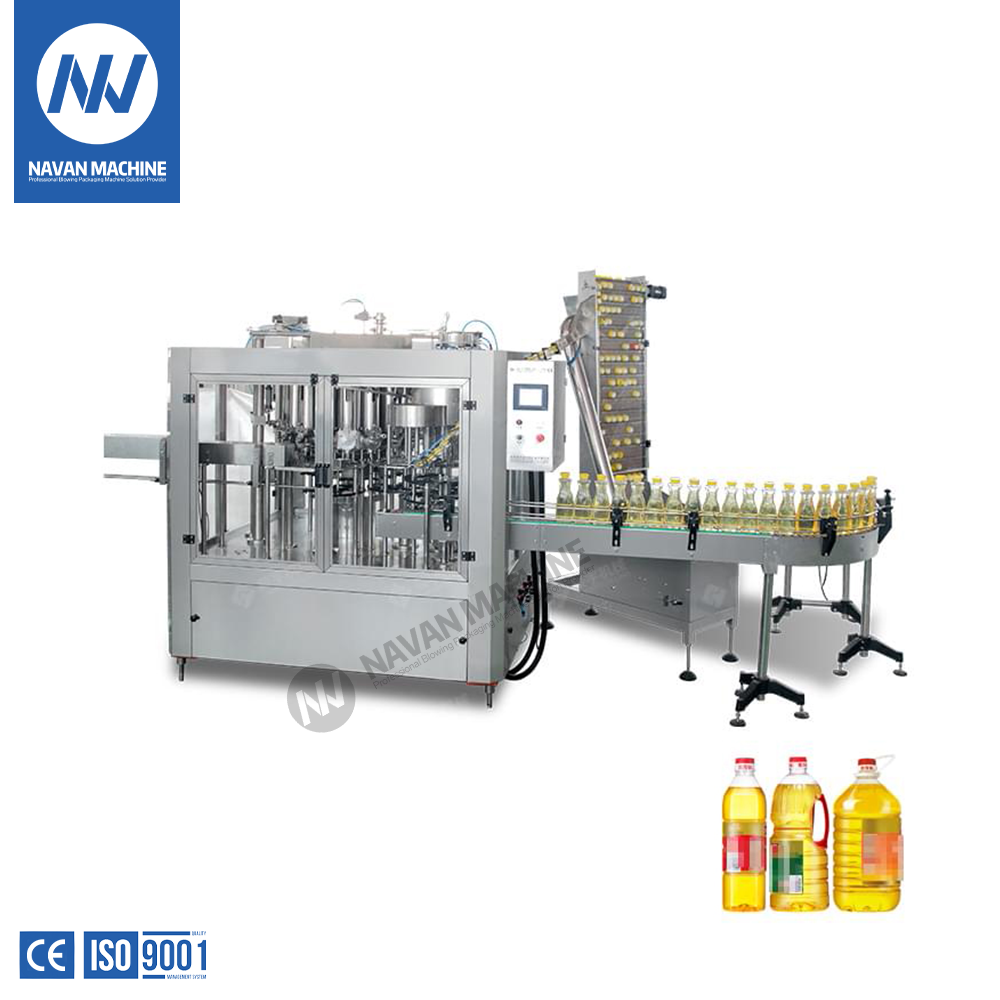

2-2 - NAVAN Rotary Type Oil Filling Machine [ Filling Capping 2 in 1 type ]
1 - Filling System: Mechanical valve, volumetric valve, flowmeter valve and weighing valve.
2 - All materials in contact with product are of 316L stainless steel and the seals are made of food grade materials.
3 - The filling valve is competent for high speeding filling without liquid drawing.
4 - The filling precision is high.
5 - The screw arbor is used for bottle separation. The bottle bottom is hold all the way to reduce the replacement of changeover parts. The changeover parts are of quick-change structure to reduce the time for replacement.
Equipment Type | Automatic |
Bottle Type | PET / PE / PP / Glass / Metal Volume 0.2 - 2 L Bottle Shape : Round / Square / Unique Shape |
Output | up to 15,000 bph |
Your product | Edible oil and Industrial oil etc. |
Certificates | CE / SGS / ISO 9001 |
3 - NAVAN Machine Labeling Machine
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
4 - NAVAN Machine Packaging Machine
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry !
1- NAVAN Machine Blow Molding Machine
1 / NAVAN Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
2 / Production flexibility: Up to 200 different equipment size configurations from one platform
3 / Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
4 / Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
5 / Efficient consumption: Up to 45 % less electricity and 35 % less compressed air
2-1 - NAVAN Linear Type Oil Filling Machine
1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime
3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4 / Hygiene improvement through volume control and contactless filling
5 / Automatic dummy bottles: Safer, easier cleaning procedures
6 / Automatic bottle changeover improves uptime
2-2 - NAVAN Rotary Type Oil Filling Machine [ Filling Capping 2 in 1 type ]
1 - Filling System: Mechanical valve, volumetric valve, flowmeter valve and weighing valve.
2 - All materials in contact with product are of 316L stainless steel and the seals are made of food grade materials.
3 - The filling valve is competent for high speeding filling without liquid drawing.
4 - The filling precision is high.
5 - The screw arbor is used for bottle separation. The bottle bottom is hold all the way to reduce the replacement of changeover parts. The changeover parts are of quick-change structure to reduce the time for replacement.
Equipment Type | Automatic |
Bottle Type | PET / PE / PP / Glass / Metal Volume 0.2 - 2 L Bottle Shape : Round / Square / Unique Shape |
Output | up to 15,000 bph |
Your product | Edible oil and Industrial oil etc. |
Certificates | CE / SGS / ISO 9001 |
3 - NAVAN Machine Labeling Machine
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
4 - NAVAN Machine Packaging Machine
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry !
Stable filling , no foaming, no dripping | |||||
Filling precision:±2g(500g) | |||||
Voltage:380/220V 50HZ (Or customized) | |||||
Compressed air :0.6-0.8MPA | |||||
Linear type | |||||
Filling head | 2pcs | 4-6pcs | 8-10 pcs | 12pcs | |
Filling range: | 100-1000ML, 500ML-5L,5-30L | ||||
Capacity(2L/bottle) | 500BPH | 600-800BPH | 1800-2500BPH | 3000-3500BPH | |
Rotray type | |||||
Model | NPF8-4 | NPF12-5 | NPF18-6 | NPF24-8 | NPF32-10 |
Filling Heads | 8 | 12 | 18 | 24 | 32 |
Capping Heads | 4 | 5 | 6 | 8 | 10 |
Filling Volume | 200ml-1000ml, 500ml-2000ml | ||||
Capacity(B/H) | 2800 | 3500 | 7000 | 10000 | 15000 |
Stable filling , no foaming, no dripping | |||||
Filling precision:±2g(500g) | |||||
Voltage:380/220V 50HZ (Or customized) | |||||
Compressed air :0.6-0.8MPA | |||||
Linear type | |||||
Filling head | 2pcs | 4-6pcs | 8-10 pcs | 12pcs | |
Filling range: | 100-1000ML, 500ML-5L,5-30L | ||||
Capacity(2L/bottle) | 500BPH | 600-800BPH | 1800-2500BPH | 3000-3500BPH | |
Rotray type | |||||
Model | NPF8-4 | NPF12-5 | NPF18-6 | NPF24-8 | NPF32-10 |
Filling Heads | 8 | 12 | 18 | 24 | 32 |
Capping Heads | 4 | 5 | 6 | 8 | 10 |
Filling Volume | 200ml-1000ml, 500ml-2000ml | ||||
Capacity(B/H) | 2800 | 3500 | 7000 | 10000 | 15000 |

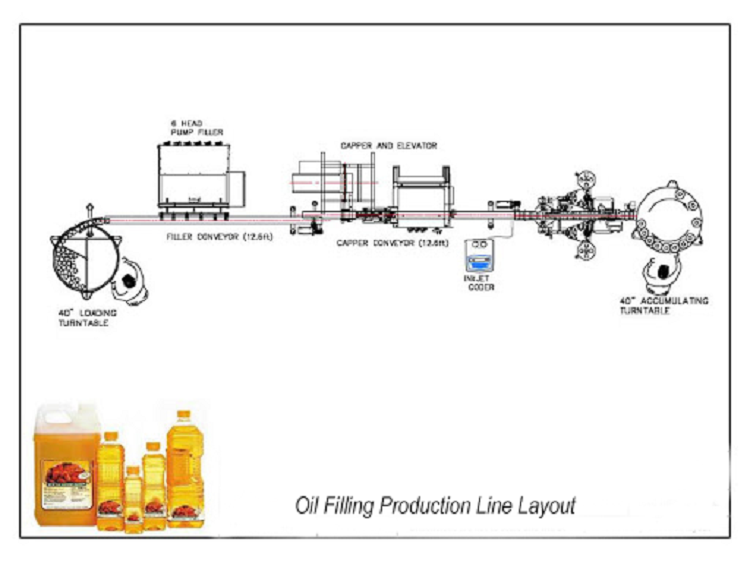

Complete Edible Oil Filling Capping Labeling Packaging Line Machine
Oil products include edible oil and industrial oil, like peanut oil, palm oil, blended oil, and lubricating oil etc.Oil products have a very rigorous requirement on filling accuracy and hygiene. Meanwhile it is easy to volatize and absorb on the surface of equipment, which will not result in dripping.With years of experience in oil filling, NAVAN not only mastered the key technology, but also improved machine designs to address specific product features.NAVAN offers oil filling solutions that are accurate, hygiene and no residual.
Boosting speed and hygiene , NAVAN Water lines provide:
1 - Water packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
Complete Edible Oil Filling Capping Labeling Packaging Line Machine
Oil products include edible oil and industrial oil, like peanut oil, palm oil, blended oil, and lubricating oil etc.Oil products have a very rigorous requirement on filling accuracy and hygiene. Meanwhile it is easy to volatize and absorb on the surface of equipment, which will not result in dripping.With years of experience in oil filling, NAVAN not only mastered the key technology, but also improved machine designs to address specific product features.NAVAN offers oil filling solutions that are accurate, hygiene and no residual.
Boosting speed and hygiene , NAVAN Water lines provide:
1 - Water packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use
