Application: All kinds of carbonated soft drink / beverage
Applied Containers: PET bottles with various volume and shapes.
Filling System : Mechanical gravity filling valve.
Capacity: 2000-36000BPH.
Product·s scope: Blowing molding machine, air compressor equipment , water treatment system , bottle risning filling capping machine , purification system, auto online caps sterilization system, bottle dryer system, filled bottle conveying system, labeling machine, carton/film packaging machine, palletizer, electric control system, engineering design and construction
CGF Series
NAVAN MACHINE
8422301090
Capacity: | Please select |
---|---|
Bottle volume: | Please select |
Application: | Please select |
Availability: | |

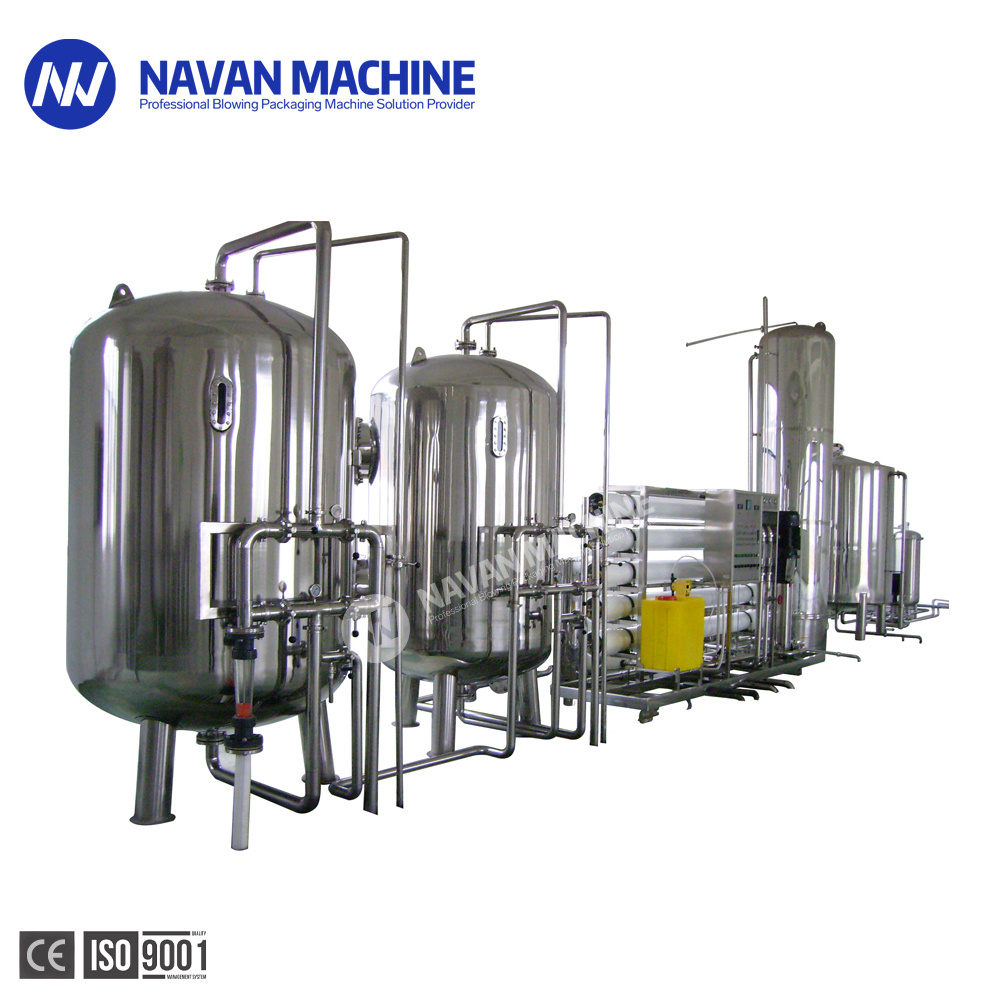

1 - NAVAN Machine Water Treatment System
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
1/A film shell made of high-pressure stainless steel.
2/A variety of systems including capacity indicators, pressure indicators, electric magnetic valves, balance devices, and pipe valve systems.
3/An online pressure self-protection device.
4/An online electric indicator with stable compensation.
5/A system with safety protection and alarm capabilities.
6/A framework for the system.
2 - NAVAN Machine Blow Molding Machine
1/Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat
the perform, the perform rotated and heated equally.
2/The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the
different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing
large irregular shaped bottles.
3/The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the
machine.
4/The machine can be operated in the step-by-step mode and the semi-auto mode.
5/The machine is small with low investment, easy and safe to operator .

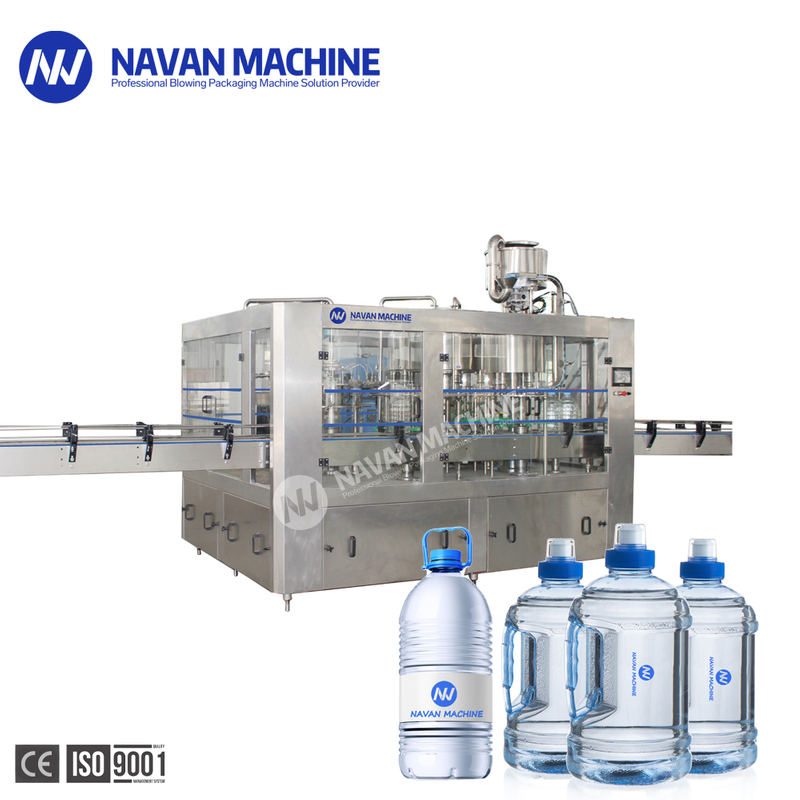

3 - CGF Water Filling Machine [ Washing Filling Capping 3 in 1 type ]
1/304 stainless steel frame
2/Tempering Glass window, Clear & no odor
3/Excellent start wheel design, easy change over parts
4/Machine Base with anti-rust process, ensure the forever antirust
5/All seal where liquid may Leakage & base neck come with rubber, water proof
6/Manual lubrication system
Equipment Type | Automatic |
Bottle Type | PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm |
Output <bph> | up to 36,000 bph |
Your product | mineral water/pure water/non-gas wine drink and so on |
Certificates | CE / SGS / ISO 9001 |
4 - NAVAN Machine Labeling Machine
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
5 - NAVAN Machine Packaging Machine
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
1 - NAVAN Machine Water Treatment System
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
1/A film shell made of high-pressure stainless steel.
2/A variety of systems including capacity indicators, pressure indicators, electric magnetic valves, balance devices, and pipe valve systems.
3/An online pressure self-protection device.
4/An online electric indicator with stable compensation.
5/A system with safety protection and alarm capabilities.
6/A framework for the system.
2 - NAVAN Machine Blow Molding Machine
1/Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat
the perform, the perform rotated and heated equally.
2/The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the
different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing
large irregular shaped bottles.
3/The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the
machine.
4/The machine can be operated in the step-by-step mode and the semi-auto mode.
5/The machine is small with low investment, easy and safe to operator .
3 - CGF Water Filling Machine [ Washing Filling Capping 3 in 1 type ]
1/304 stainless steel frame
2/Tempering Glass window, Clear & no odor
3/Excellent start wheel design, easy change over parts
4/Machine Base with anti-rust process, ensure the forever antirust
5/All seal where liquid may Leakage & base neck come with rubber, water proof
6/Manual lubrication system
Equipment Type | Automatic |
Bottle Type | PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm |
Output <bph> | up to 36,000 bph |
Your product | mineral water/pure water/non-gas wine drink and so on |
Certificates | CE / SGS / ISO 9001 |
4 - NAVAN Machine Labeling Machine
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
5 - NAVAN Machine Packaging Machine
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
Model | CGFL4-4-1 (linear type) | CGFL8-8-1 (linear type) | CGFL12-12-1 (linear type) | CGF12-12-4R (rotary type) | CGF16-16-4R (rotary type) | CGF20-20-6R (rotary type) |
Heads of washing,filling ,capping | 4-4-1 | 8-8-1 | 12-12-1 | 12-12-4 | 16-16-4 | 20-20-6 |
Productiona capacity(bottle/hour) | 600-800 | 1200-1500 | 1800-2000 | 3000-3500 | 4000-4500 | 5000-6000 |
Suitable bottle diameter(mm) | Φ=100-200 H=170-380(5000-10000ml) | |||||
Spraying pressure(kg/cm²) | 2-3 | |||||
Motor power/Maiin motor(kw) | 3.0 | 3.0 | 3.7 | 5.0 | 6.5 | 9.0 |
Overall dimension(L×W×H) | 4200×1400×2500 | 6100×1400×2500 | 8800×1400×2500 | 3100×2100×2550 | 3800×2300×2800 | 4500×2800×2900 |
Weight(kg) | 2500 | 3500 | 4500 | 4800 | 5500 | 7500 |
Model | CGFL4-4-1 (linear type) | CGFL8-8-1 (linear type) | CGFL12-12-1 (linear type) | CGF12-12-4R (rotary type) | CGF16-16-4R (rotary type) | CGF20-20-6R (rotary type) |
Heads of washing,filling ,capping | 4-4-1 | 8-8-1 | 12-12-1 | 12-12-4 | 16-16-4 | 20-20-6 |
Productiona capacity(bottle/hour) | 600-800 | 1200-1500 | 1800-2000 | 3000-3500 | 4000-4500 | 5000-6000 |
Suitable bottle diameter(mm) | Φ=100-200 H=170-380(5000-10000ml) | |||||
Spraying pressure(kg/cm²) | 2-3 | |||||
Motor power/Maiin motor(kw) | 3.0 | 3.0 | 3.7 | 5.0 | 6.5 | 9.0 |
Overall dimension(L×W×H) | 4200×1400×2500 | 6100×1400×2500 | 8800×1400×2500 | 3100×2100×2550 | 3800×2300×2800 | 4500×2800×2900 |
Weight(kg) | 2500 | 3500 | 4500 | 4800 | 5500 | 7500 |

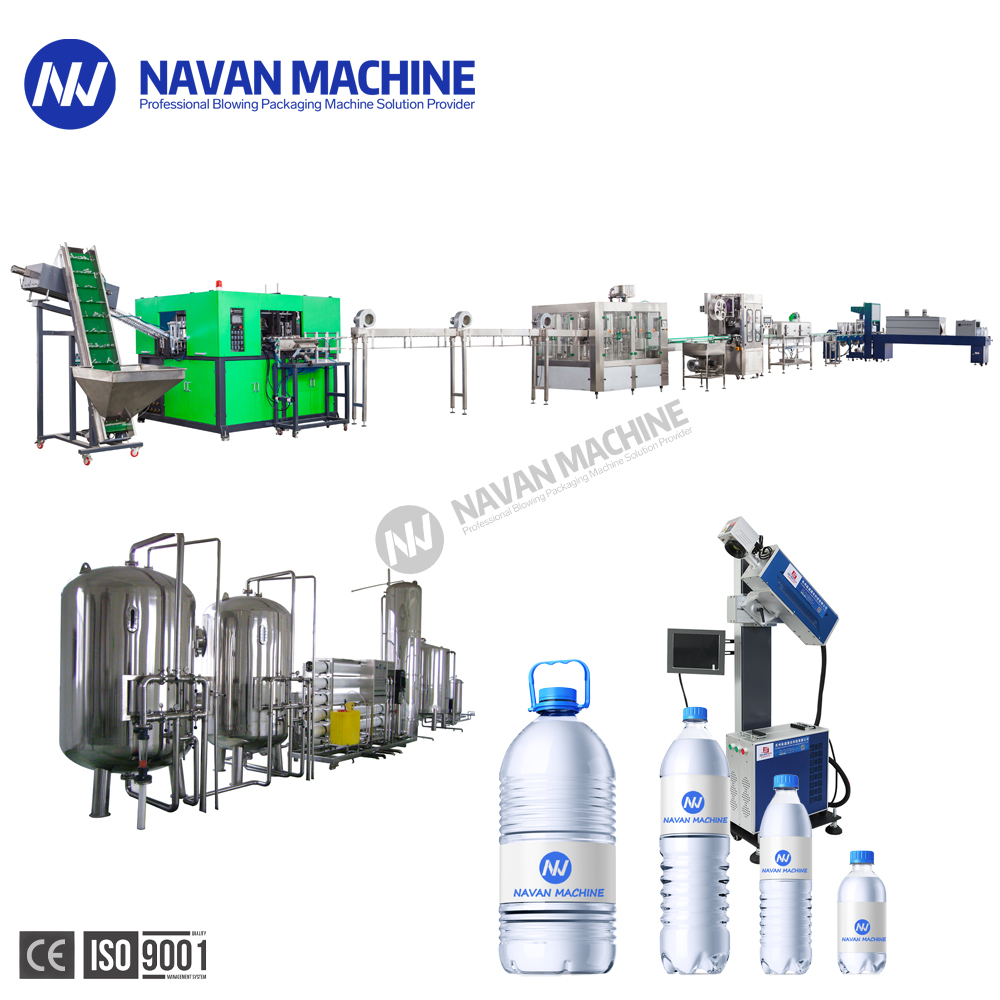

Full Automatic Complete Pure Water Packing Solution
