Success in water beverage production requires focus on maximum output and efficiency
Home / Product / Pretreatment System / Water Treatment System / Industrial Reverse Osmosis RO Water Treatment System

Industrial Reverse Osmosis RO Water Treatment System

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

This system is equipped with a set of N m3/h secondary reverse osmosis desalination device. The water treated by the RO device can remove most of the inorganic salts and almost all of the organic matter and microorganisms. RO device has no phase change in the process of water quality and water separation, high desalination rate, small equipment volume, automatic control operation, strong adaptability, wide application range, and no environmental pollution.

  • RO Series

  • NAVAN MACHINE

  • 8477309000

Capacity:
Please select
Power:
Please select
Rate of Recovery:
Please select
Availability:

Reverse Osmosis


Reverse osmosis is a membrane separation technique that uses pressure as a driving force by selecting a function of permeating (semi-transmissive) membrane. When the pressure applied in the system is greater than the osmotic pressure of the aqueous solution, the water molecules continuously permeate the membrane. The impurities flowing into the central tube through the product water channel and then flowing out of the water at one end, such as ions, organic matter, bacteria, viruses, etc., are trapped on the water inlet side of the membrane, and then flow out at the concentrated water outlet end, thereby achieving the purpose of separation and purification.

Industrial Reverse Osmosis RO Water Treatment System

Industrial RO Reverse Osmosis Water Treatment System

Reverse osmosis is a reverse migration movement of osmosis. It is a separation method that separates the solute and the solvent in the solution by the selective retention of a semi-permeable membrane under pressure, and its pore size is about 5-10A. It has been widely used in the purification and concentration of various liquids. The most common application example is in the water treatment process. The reverse osmosis technology can remove impurities such as inorganic ions, bacteria, viruses, organic matter and colloids in raw water. To obtain high-quality purified water. The most widely used is the roll-type polyamide composite membrane. Its water flux and removal rate will be affected by pressure, temperature, recovery rate, salt content of influent water and PH value.

Industrial Reverse Osmosis RO Water Treatment System

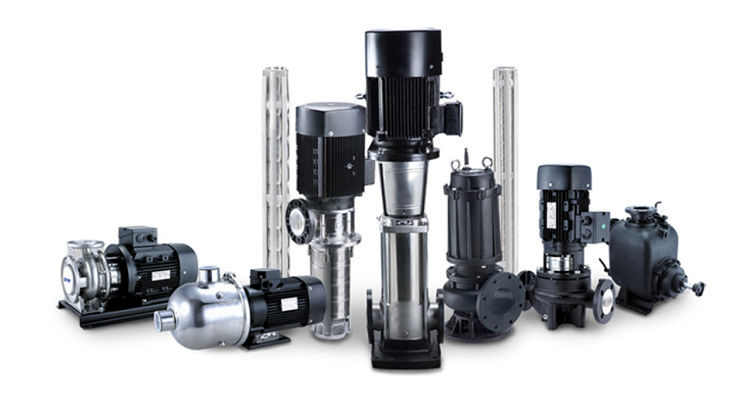

Industrial RO Reverse Osmosis Water Treatment System - Water Pump.

It can pump water and liquid (solution), pressurize the water outlet (maximum pressure is up to 11 kg), suitable for various occasions such as liquid spraying, spraying, washing, irrigation, showering, transfer, lifting, cleaning, etc. Customers in many fields such as water treatment, liquid sampling, scientific research, instrumentation, chemical analysis, healthcare, medicine and hygiene, biological engineering, automatic control, environmental protection, etc.

Industrial Reverse Osmosis RO Water Treatment System

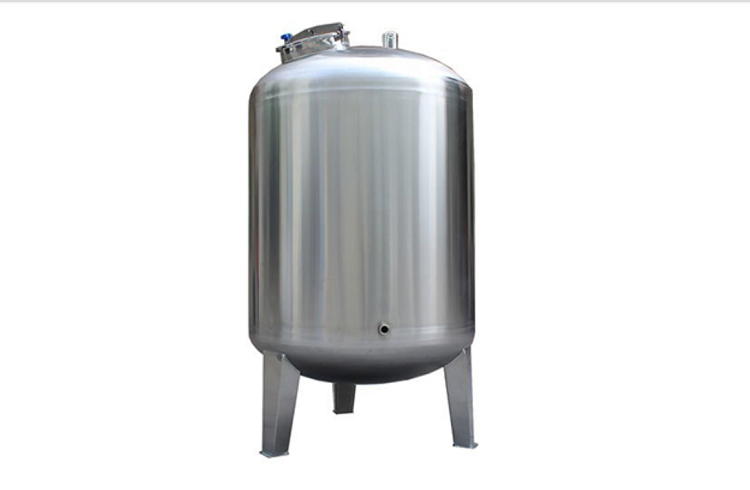

Industrial RO Reverse Osmosis Water Treatment System - Tank.

The stainless steel welded water tank is a new generation of water storage tools after the glass water tank. Its products are made of all stainless steel plates, beautiful in appearance, economical and practical, and the main body is not broken for a long time. Compared with other water tanks, the stainless steel high-level water tank has many advantages such as light weight, high strength, corrosion resistance, high temperature resistance, clean water quality, anti-seepage, earthquake resistance, never growing moss, easy installation, no maintenance, and easy cleaning.

Industrial Reverse Osmosis RO Water Treatment System

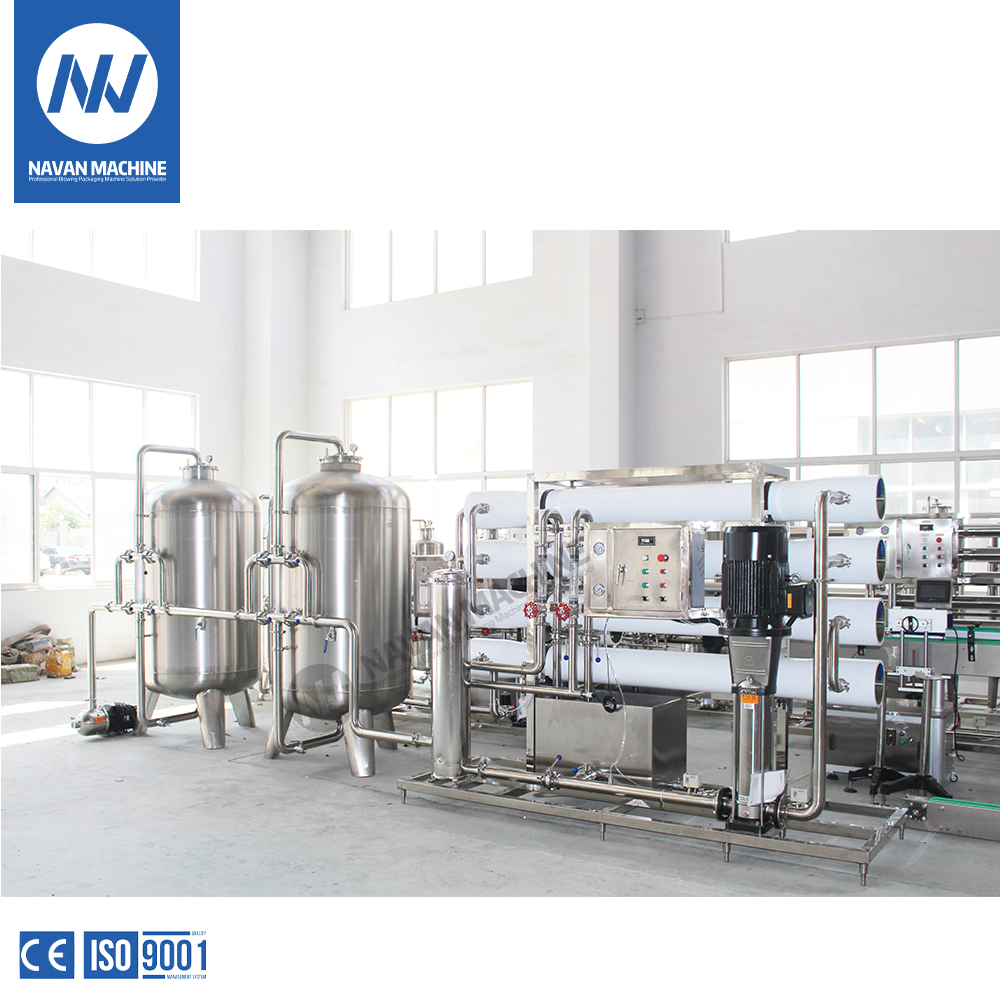

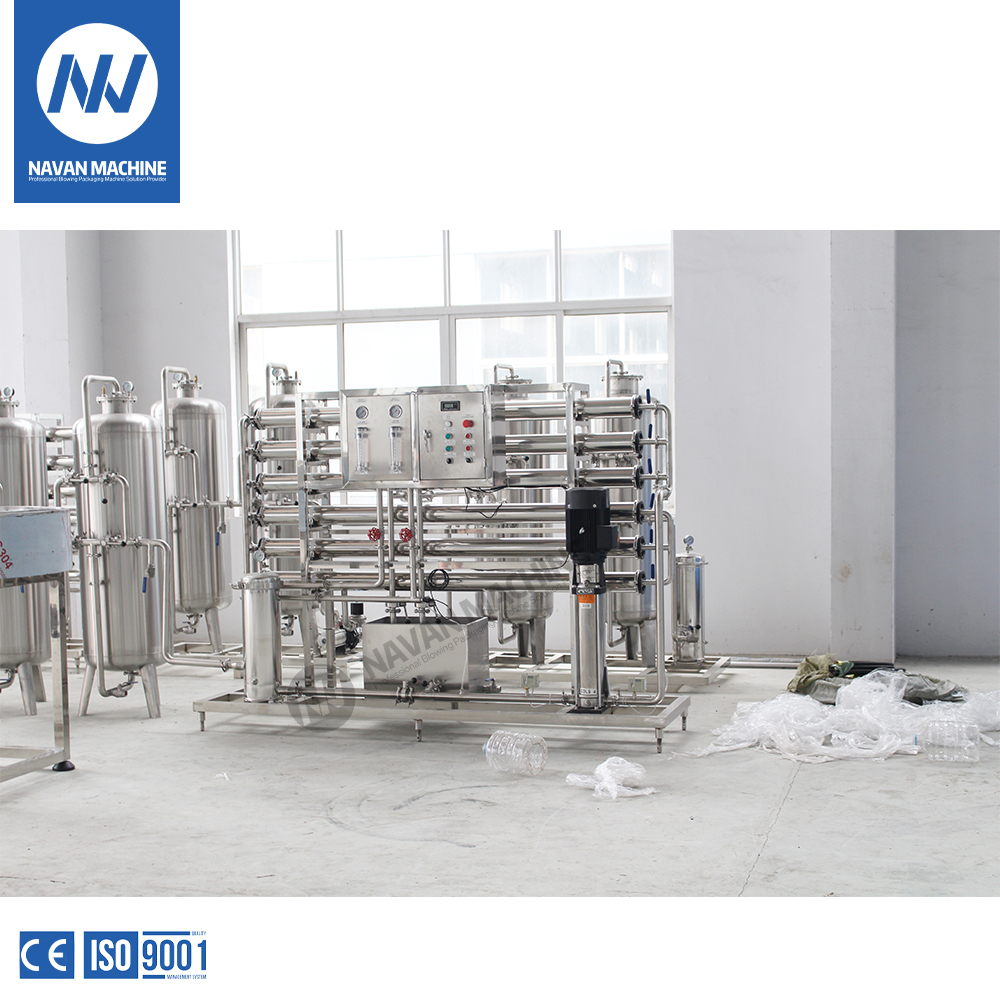

Industrial RO Reverse Osmosis Water Treatment System - RO System.

Reverse osmosis is the membrane separation technology with the highest filtration accuracy. The filtration accuracy reaches 0.0001um. All the substances in the tap water are filtered, without minerals and trace elements, this water can be directly drinkable. Impurities in the water such as soluble solids, organic matter, colloidal substances and bacteria are intercepted by the reverse osmosis membrane, concentrated in the interception fluid and removed. One-stage reverse osmosis can remove more than 97% of the dissolved solids in the raw water.

Industrial Reverse Osmosis RO Water Treatment System


Model
RO-1000
RO-2000
RO-3000
RO-5000
RO-7000
RO-10000
Production Capacity
t/h
1T/H
2T/H
3T/H
5T/H
7T/H
10T/H
Power  kw
1.5
2.2
3
5.5
7.5
11
Desalt Rate
98%
Rate of Recovery
50-60%

Industrial Reverse Osmosis RO Water Treatment System

Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
