NAVAN carbonated drink bottling machine combines washing,filling and rotary capping functions into one unit which is a fully automatic and high efficieney liquid packing equipment.
It is suitable for filling and packaging beverage containing carbon daroxide or other sparking drink .
Advantage:
All parts, such as rinsing vavles , filling valve , pipe , filling tank which directly contact medium are made of 304 Food stage stainless steel. Conforming to the requirements of Food sanitation.
Adopting SIMENS programmable controller to realize fully automatic control from bottles entering rinsning , filling to finishing packing.
CGFD Series
NAVAN MACHINE
8422301090
Capacity: | Please select |
---|---|
Bottle volume: | |
Application: | Please select |
Availability: | |

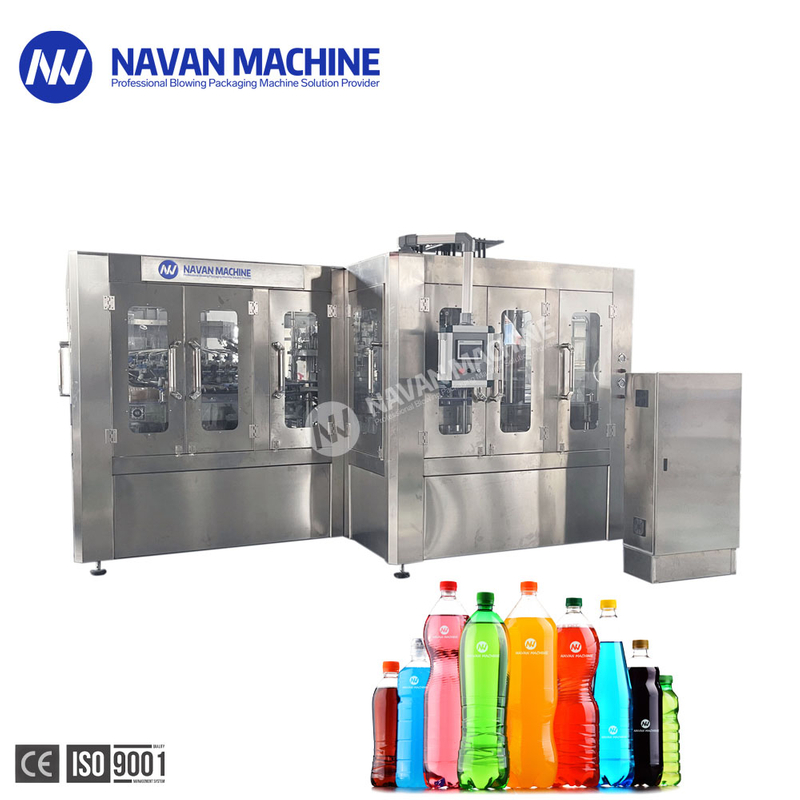

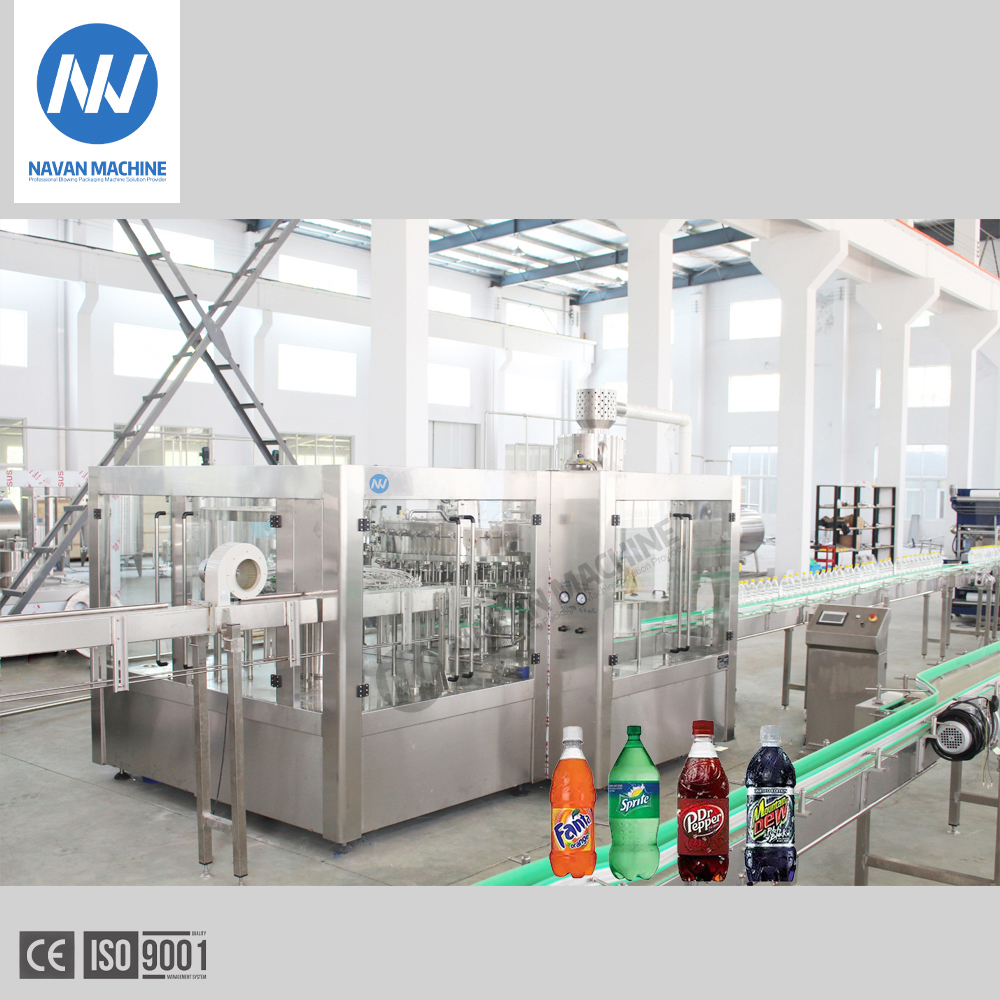

NAVAN 20000BPH Bottled Carbonated Soft Drink Automatic Rinsing Filling Machine Capping Machine
Product Application :This washing filling capping machine is mainly used for Carbon dioxide drink, such as cola, soda water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit.
Capability Character : It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
Equipment Type | Automatic |
Bottle Type | PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm |
Output | up to 24,000 bph |
Your product | carbonated soft drink / cola / soda water and so on. |
Bottle Rinser
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

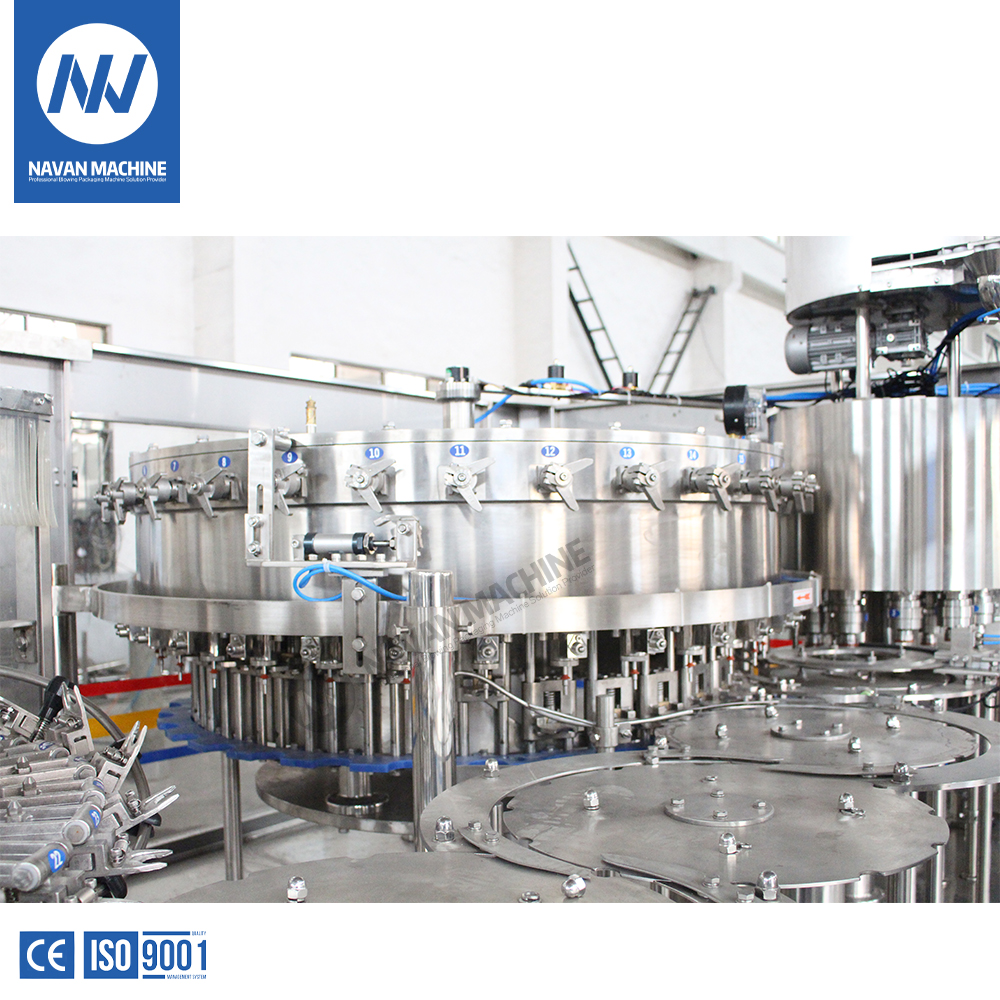

Bottle Filler
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.

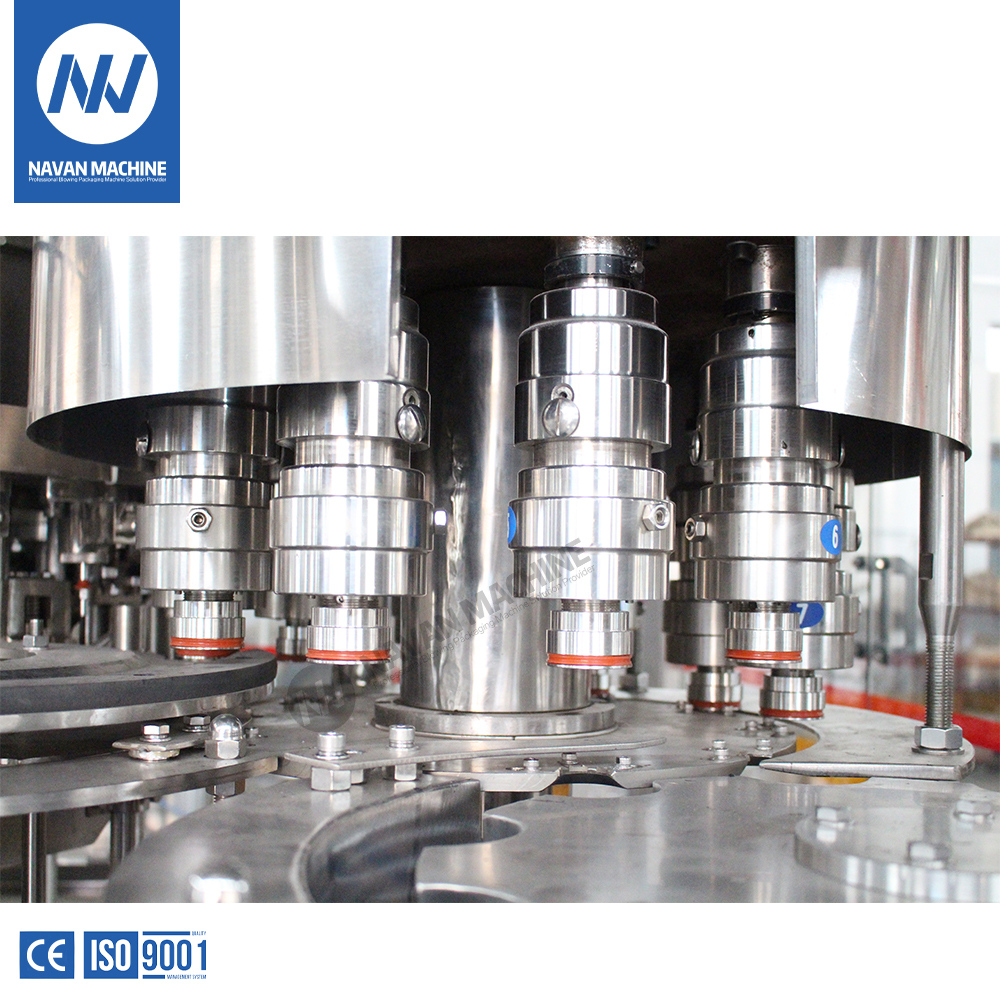

Bottle Capper
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles

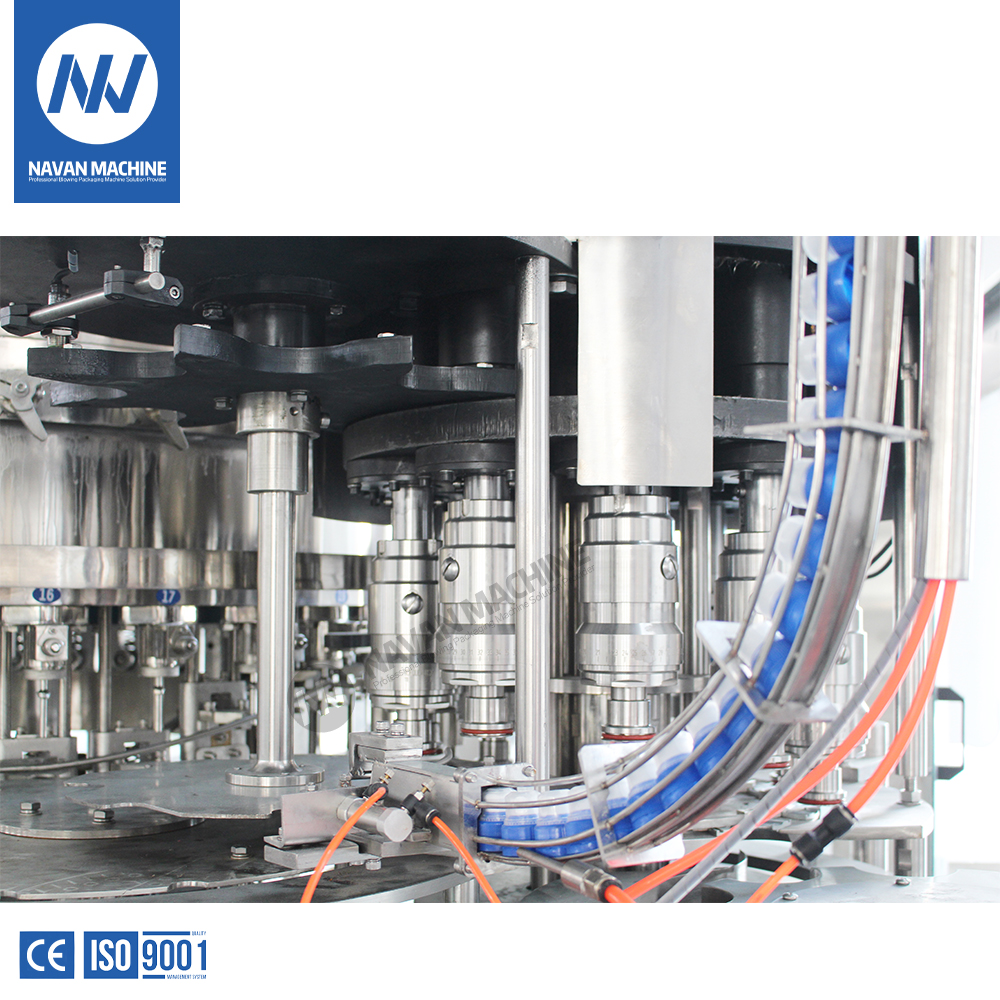

-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
NAVAN 20000BPH Bottled Carbonated Soft Drink Automatic Rinsing Filling Machine Capping Machine
Product Application :This washing filling capping machine is mainly used for Carbon dioxide drink, such as cola, soda water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit.
Capability Character : It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
Equipment Type | Automatic |
Bottle Type | PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm |
Output | up to 24,000 bph |
Your product | carbonated soft drink / cola / soda water and so on. |
Bottle Rinser
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

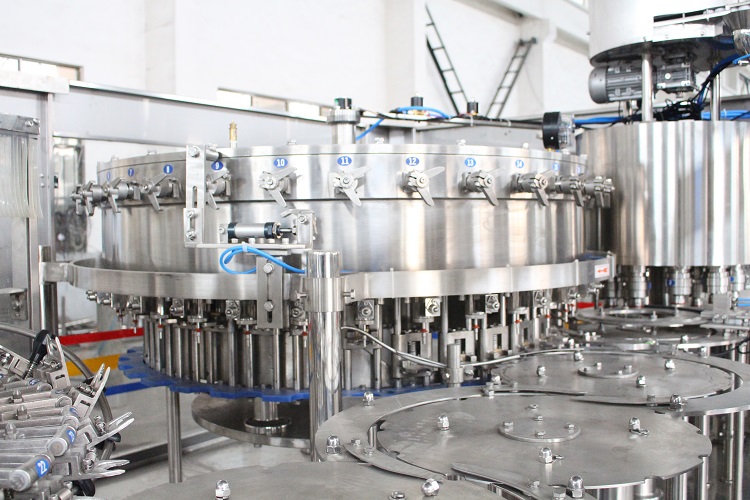

Bottle Filler
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.

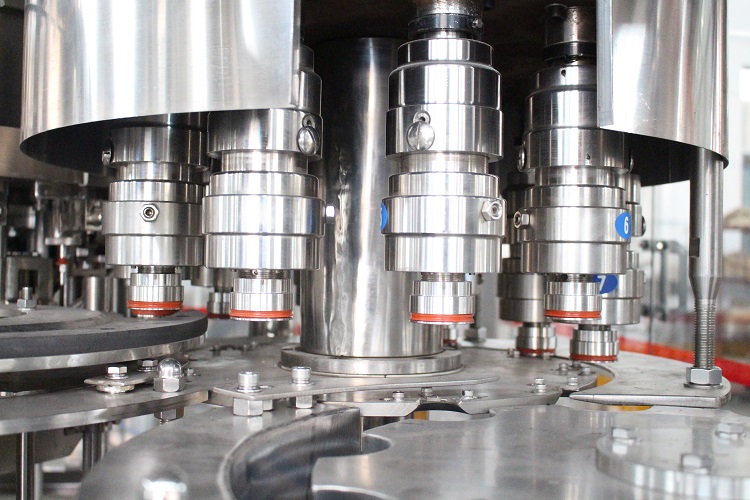

Bottle Capper
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
Carbonated Soft Drink Automatic Rinsing Filling Machine Capping Machine
Model | CGFD8-8-4 | CGFD12-12-5/6 | CGFD18-18-6 | CGFD24-24-8 |
Application | Soda water , sparkling water , Govas, cola etc ...carbonated drink | |||
Number of washing, filling & capping heads | 8-8-4 | 12-12-5/6 | 18-18-6 | 24-24-8 |
Production capacity (500ml) | 800~1000 | 2000 | 4000 | 8000 |
Filling precision | ≤±5mm(liquid level) | |||
User Ambient Conditions | Temperature:10~40℃; Humidity: No dew | |||
Suitable bottle specification | Volume=100-2000ml Diameter φ=50-100 Bottle height H=150 ~340mm | Volume=100-2500ml Diameter φ=50-108 Bottle height H=150 ~350mm | ||
Bottle type | Plastic bottle / PET Bottle | |||
Bottle neck/Cap Style | Plastic Screw Cap φ=20-50 | |||
Machine material | Food stage SS304 OR SS316 | |||
Air source pressure (Mpa) | 0.5-0.6 | |||
Filling way/principle | Isobaric filling | |||
Motor power(kw) | Main motor 1.9kw | Main motor 3.5kw | Main motor 4.0kw | Main motor 4.8kw |
Control System | SIMENS PLC+ TOUCH SCREEN | |||
Features | No Bottle No Filling No Bottle No Capping | |||
Power Supply | Voltage:220V~415V,3phase; Frequency:50HZ/60HZ or your requirement | |||
Overall dimensions (mm) | 1900*1420*2000 | 2050*1800*2400 | 2580*2100*2200 | 2780*2200*2200 |
Weight (kg) | 1500 | 2500 | 3500 | 4500 |

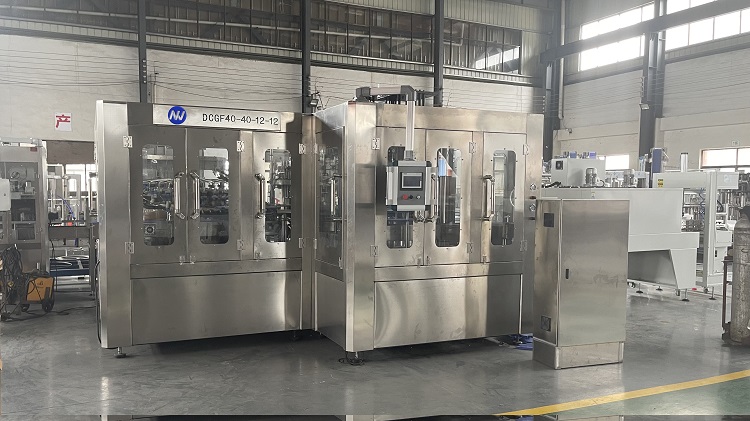

Carbonated Soft Drink Automatic Rinsing Filling Machine Capping Machine
Model | CGFD32-32-10 | CGFD40-40-10/12 | CGFD50-50-12/15 | CGFD60-60-15 | ||
Application | Soda water , sparkling water , Govas, cola etc ...carbonated drink | |||||
Number of washing, filling & capping heads | 32-32-10 | 40-40-10/12 | 50-50-12/15 | 60-60-15 | ||
Production capacity (500ml) | 10000 | 12000~13000 | 15000~16000 | 22000-24000 | ||
Filling precision | ≤±5mm(liquid level) | |||||
User Ambient Conditions | Temperature: 10~40℃ ; Humidity: No dew | |||||
Suitable bottle specification | Volume=100-2000ml Diameter φ=50-108 Bottle height H=150 ~340mm | |||||
Bottle type | Plastic bottle / PET Bottle | |||||
Bottle neck/Cap Style | Plastic Screw Cap φ=20-50 | |||||
Machine material | Food stage SS304 OR SS316 | |||||
Air source pressure (Mpa) | 0.5-0.6 | |||||
Filling way/principle | Isobaric filling | |||||
Motor power(kw) | SIMENS PLC+ TOUCH SCREEN | |||||
Control System | No Bottle No Filling ; No Bottle No Capping | |||||
Features | Voltage:220V~415V,3phase; Frequency:50HZ/60HZ or your requirement | |||||
Power Supply | Main motor 7.6kw | Main motor 8.3kw | Main motor 9.6kw | Main motor 15Kw | ||
Overall dimensions (mm) | 3800*2800*2600 | 4600*2800*2600 | 5450*3300*2600 | 6500*4500*2600 | ||
Weight (kg) | 6500 | 8500 | 9800 | 12800 |
