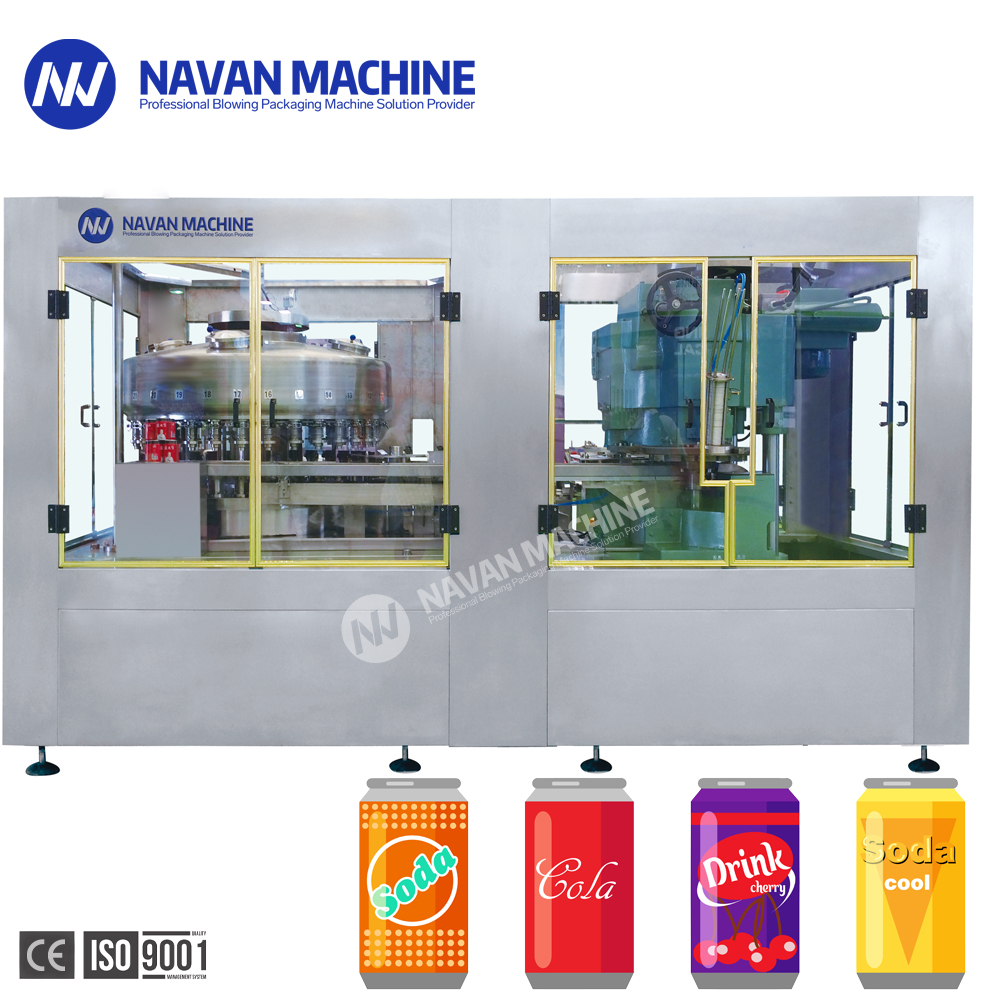

This CAN packaging machine is suitable for filling and sealing of carbonated drink and beverage in the industrial of pop can beverage field. The filling and seaming are of integral design.
The principle of equal pressure filing is adopted. During filing, after the empty can reaches into the can lifting cylinder after passing through the pneumatic triplex parts, and the empty can is raised and the conical seal gasket under the filling valve is sealed. The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder.
The air is filled into the empty can to form equal pressure. From a large material barrel, the beer passes through 14 small conduits and flows into the empty can. When the liquid level in the empty can blocks the gas return pipe mouth, then the filling stops. Under the action of arm, the de-foaming valve will slowly discharge the air and pressure, the can supporting cylinder will continue to fall. After it is discharged, the can is sent to the sealing machine for sealing by the hook chain that runs synchronously. During the sealing, the sealing wheel carries out pre-sealing and then real sealing.
After it is sealed, the can is pushed out by the beating head of the cap beating mechanism and then dialed by dial to the conveyor belt for conveying.
NF Series
NAVAN MACHINE
8422301090
Capacity: | Please select |
---|---|
Bottle volume: | Please select |
Application: | Please select |
Availability: | |
1 - NAVAN Machine Water Treatment
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame
2 - Beverage Pre-process system
1 - High-shear emulsifying tank + Plate heat exchanger
2 - Mixing tank
3 - UHT sterilizer + homogenizer machine + Buffer tank
4 - Hot water system + Hot water tank
5 - CIP cleaning system
3 - NAVAN Can Stacker Machine
1-PLC control of the whole machine, fully automatic operation;
2-Adapt to various stack types and bottle types, easy to adjust;
3-Segmented transmission with high-quality conveyor chain, the output section can be arbitrarily lengthened;
4--Using 304 material, the whole machine is beautiful and elegant;
4-NAVAN Can Beverage Filling Machine
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
Equipment Type | Automatic |
Bottle Type | Volume: 200 - 750ml Bottle diameter: Φ53~66 Bottle height: 80-175mm |
Output <bph> | up to 18,000 bph |
Your product | Water/Soft drink/Csd filling/Energy drink and so on |
Certificates | CE / SGS / ISO 9001 |
5 - NAVAN Bottle Cooling System
- Mainly for cooling and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption
6 - NAVAN Machine Labeling Machine
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 18,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
7 - NAVAN Machine Packaging Machine
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
1 - NAVAN Machine Water Treatment
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame
2 - Beverage Pre-process system
1 - High-shear emulsifying tank + Plate heat exchanger
2 - Mixing tank
3 - UHT sterilizer + homogenizer machine + Buffer tank
4 - Hot water system + Hot water tank
5 - CIP cleaning system
3 - NAVAN Can Stacker Machine
1-PLC control of the whole machine, fully automatic operation;
2-Adapt to various stack types and bottle types, easy to adjust;
3-Segmented transmission with high-quality conveyor chain, the output section can be arbitrarily lengthened;
4--Using 304 material, the whole machine is beautiful and elegant;
4-NAVAN Can Beverage Filling Machine
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
Equipment Type | Automatic |
Bottle Type | Volume: 200 - 750ml Bottle diameter: Φ53~66 Bottle height: 80-175mm |
Output <bph> | up to 18,000 bph |
Your product | Water/Soft drink/Csd filling/Energy drink and so on |
Certificates | CE / SGS / ISO 9001 |
5 - NAVAN Bottle Cooling System
- Mainly for cooling and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption
6 - NAVAN Machine Labeling Machine
Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 18,000 containers per hour, when standalone, at an efficiency rate of 98%.
Benefits
1 / Greater performance and ergonomics
2 / Boasted production uptime
3 / Sustainable and quality production
7 - NAVAN Machine Packaging Machine
Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.Whether you choose shrink-printed film, nested packs or wraparound cartons, NAVAN Machine packers gently feed bottles to ensure durable and cost-effective packs.
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
5 / Heat, glue, carton and film optimisation
Would like to know more about NAVAN Machine equipments, feel free to send us an inquiry!
Item | Unit | Model | |||
NF4T100Q | NF4T150Q | NF4T200Q | NF6T300Q | ||
Capacity | Cans/min | ≤100 | ≤150 | ≤200 | ≤300 |
CAN Diameter | Mm | Φ53~66 | Φ53~66 | Φ53~66 | Φ53~66 |
CAN Height | Mm | 80~175 | 80~175 | 80~175 | 80~175 |
Filling unit | Unit | 12 | 20 | 24 | 32 |
Sealing unit | Unit | 4 | 4 | 4 | 6 |
Filling pressure | MPa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa |
Compressed air | Nm3/h | 3 | 4 | 4 | 5 |
CO2 pressure | MPa | 0.5 | 0.5 | 0.5 | 0.5 |
CO2 consumption | Nm3/h | 3.5 | 5.5 | 6.5 | 9 |
Filing temp. | ℃ | 0-4℃ | 0-4℃ | 0-4℃ | 0-4℃ |
Power | Kw | 7.5 | 7.5+0.37 | 7.5+0.55 | 7.5+0.75 |
Weight | T | 3.5 | 4.5 | 4.5 | 7.5 |
Dimension | Mm | 2800×1500×2000 | 3100×1850×2000 | 3250×2050×2000 | 3800×2300×2000 |
Electrical configuration
Item | Unit | Model | |||
NF4T100Q | NF4T150Q | NF4T200Q | NF6T300Q | ||
Capacity | Cans/min | ≤100 | ≤150 | ≤200 | ≤300 |
CAN Diameter | Mm | Φ53~66 | Φ53~66 | Φ53~66 | Φ53~66 |
CAN Height | Mm | 80~175 | 80~175 | 80~175 | 80~175 |
Filling unit | Unit | 12 | 20 | 24 | 32 |
Sealing unit | Unit | 4 | 4 | 4 | 6 |
Filling pressure | MPa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa |
Compressed air | Nm3/h | 3 | 4 | 4 | 5 |
CO2 pressure | MPa | 0.5 | 0.5 | 0.5 | 0.5 |
CO2 consumption | Nm3/h | 3.5 | 5.5 | 6.5 | 9 |
Filing temp. | ℃ | 0-4℃ | 0-4℃ | 0-4℃ | 0-4℃ |
Power | Kw | 7.5 | 7.5+0.37 | 7.5+0.55 | 7.5+0.75 |
Weight | T | 3.5 | 4.5 | 4.5 | 7.5 |
Dimension | Mm | 2800×1500×2000 | 3100×1850×2000 | 3250×2050×2000 | 3800×2300×2000 |
Electrical configuration
It uses atmospheric pressure to fill the original raw material. After the CAN is set up, the filling sink and the air are centered, the empty CAN is lifted and sealed, and the mouth of the filling tiger is automatically opened at the same time, and the filling is stopped when the filling liquid level blocks the air return pipe of the valve.
The CAN is sent to the nozzle head by the fishing head, and the vine is sent to the filling mouth by the centimeter and the pressure head. When the CAN support mechanism is raised, the pressure head presses the CAN mouth sealing wheel first pre-Jli sealing and then solid sealing After Xizi was sealed, he was pushed out by the head of the styling mechanism, and then went into the out-tank transport.
Enhancing flexibility and consistency , NAVAN Canned Beverage Filling Lines provide:
It uses atmospheric pressure to fill the original raw material. After the CAN is set up, the filling sink and the air are centered, the empty CAN is lifted and sealed, and the mouth of the filling tiger is automatically opened at the same time, and the filling is stopped when the filling liquid level blocks the air return pipe of the valve.
The CAN is sent to the nozzle head by the fishing head, and the vine is sent to the filling mouth by the centimeter and the pressure head. When the CAN support mechanism is raised, the pressure head presses the CAN mouth sealing wheel first pre-Jli sealing and then solid sealing After Xizi was sealed, he was pushed out by the head of the styling mechanism, and then went into the out-tank transport.
Enhancing flexibility and consistency , NAVAN Canned Beverage Filling Lines provide:
