CGF-series barrel filling line as the central equipment is specially designed for 5 gallons barreled drinking water production line, which is ideal for production of mineral water, distilled water and purified water. the use of high quality stainless steel guarantees its high-performance resistance of corrosion and easiness of cleaning. With major electrical components coming from famous international brand, combined with interior and exterior spray nozzles for cleaning barrels provided by know-how expertise . The compact design, high efficiency, accurate and sensitive response and high automation level to ensure its stability and reliability as an integrated (machine, electricity and compressed air ) full-automatic barrel filling line.
QGF Series
NAVAN MACHINE
8422301090
Capacity: | Please select |
---|---|
Bottle volume: | Please select |
Application: | Please select |
Availability: | |

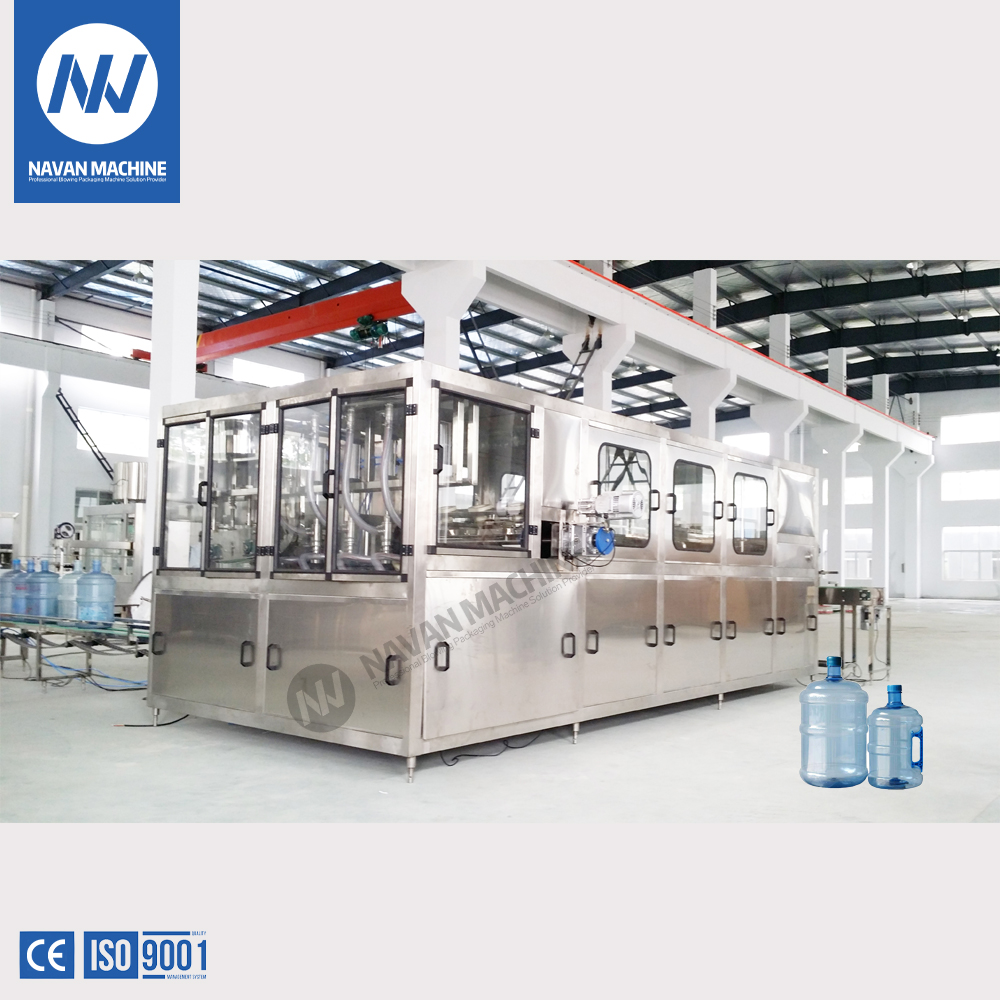

NAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production Line
The QGF-series barrel filling line is the main equipment for producing 5-gallon barreled drinking water. It's perfect for making mineral water, distilled water, and purified water. The line is made of high-quality stainless steel, which makes it resistant to corrosion and easy to clean. The electrical components are from well-known international brands, and the line features interior and exterior spray nozzles for cleaning barrels, which are designed by experts. The line is compact, efficient, and highly automated, ensuring stability and reliability as a fully automatic barrel filling line that integrates machine, electricity, and compressed air.
Flow Chart:
Empty bottle Conveyor belt------Automatic Leakage Checker-----Caps Decapper --- Brush External Bottle Washer ----- ---Automatic Bottle Loading System---- Internal Bottle Washer/ Disinfecter ----Rotary Filler & Chain Plate Capper---Filled Bottle Conveyor Belt----Lamp Checker Insert the caps label by workers----Label Heat Shrinking Machine Filled Bottles Conveyor Belt to the truck or stock room.
Outside Brusher Machine
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTECH.
Rinsing part
1/All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
2/304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
3/304/316 stainless steel washing pump
Bottle Filler
1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Bottle Capper
1/ The control of liquid level difference is maintained at 1cm.
2/ The machine is furnished with a Cap Sterilization system measuring 1.2m. This system enhances the cleanliness and safety of products by employing sterilization and finished water.
3/ ABB/SEW motor, GRUNDFOS water pump, and FESTO pneumatic components are available for customers to select and equip.
NAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production Line
The QGF-series barrel filling line is the main equipment for producing 5-gallon barreled drinking water. It's perfect for making mineral water, distilled water, and purified water. The line is made of high-quality stainless steel, which makes it resistant to corrosion and easy to clean. The electrical components are from well-known international brands, and the line features interior and exterior spray nozzles for cleaning barrels, which are designed by experts. The line is compact, efficient, and highly automated, ensuring stability and reliability as a fully automatic barrel filling line that integrates machine, electricity, and compressed air.
Flow Chart:
Empty bottle Conveyor belt------Automatic Leakage Checker-----Caps Decapper --- Brush External Bottle Washer ----- ---Automatic Bottle Loading System---- Internal Bottle Washer/ Disinfecter ----Rotary Filler & Chain Plate Capper---Filled Bottle Conveyor Belt----Lamp Checker Insert the caps label by workers----Label Heat Shrinking Machine Filled Bottles Conveyor Belt to the truck or stock room.
Outside Brusher Machine
Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTECH.
Rinsing part
1/All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
2/304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
3/304/316 stainless steel washing pump
Bottle Filler
1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Bottle Capper
1/ The control of liquid level difference is maintained at 1cm.
2/ The machine is furnished with a Cap Sterilization system measuring 1.2m. This system enhances the cleanliness and safety of products by employing sterilization and finished water.
3/ ABB/SEW motor, GRUNDFOS water pump, and FESTO pneumatic components are available for customers to select and equip.
Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Production Capacity(B/H) | 100-150 | 250-300 | 400-450 | 600 | 900 | 1200 |
Filling heads | 1 | 2 | 3 | 4 | 6 | 8 |
Machine type | Linear type | Linear type | Linear type | Linear type | Rotary type | Rotary type |
Filling capacity(L) | 10~20L | |||||
Barrel specification | Ф270X490mm | |||||
Air source pressure(MPa) | 0.4-06 | |||||
Air consumption(m3/min) | 0.35 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 |
Total Power(Kw) | 2.9 | 3.5 | 4.3 | 6.2 | 8.7 | 9.5 |
Overall Dimensions (L×W×H)(mm) | 2600×650 ×1550 | 3900×150 0×1700 | 3900×1775 ×1700 | 3900×2050 ×1700 | 2200×1860 ×2200 | 2560×2350 ×2200 |
Total Weight(Kg) | 800 | 1500 | 2000 | 2500 | 3000 | 3500 |
Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Production Capacity(B/H) | 100-150 | 250-300 | 400-450 | 600 | 900 | 1200 |
Filling heads | 1 | 2 | 3 | 4 | 6 | 8 |
Machine type | Linear type | Linear type | Linear type | Linear type | Rotary type | Rotary type |
Filling capacity(L) | 10~20L | |||||
Barrel specification | Ф270X490mm | |||||
Air source pressure(MPa) | 0.4-06 | |||||
Air consumption(m3/min) | 0.35 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 |
Total Power(Kw) | 2.9 | 3.5 | 4.3 | 6.2 | 8.7 | 9.5 |
Overall Dimensions (L×W×H)(mm) | 2600×650 ×1550 | 3900×150 0×1700 | 3900×1775 ×1700 | 3900×2050 ×1700 | 2200×1860 ×2200 | 2560×2350 ×2200 |
Total Weight(Kg) | 800 | 1500 | 2000 | 2500 | 3000 | 3500 |
