With over 30 years of experience in designing and implementing customised complete PET filling and packaging line solutions for kombucha drink ,tea drink ... , we can help you reach your production targets.
This kombucha machine adopts mirco pressure filling technology, which has the advantages of high speed, reliable output, compact design and stable operation. It is suitable for medium or large capacity breweries.
CGFR Series
NAVAN MACHINE
8422301090
| Capacity: | Please select |
|---|---|
| Bottle volume: | Please select |
| Application: | Please select |
NAVAN High Accuracy Kombucha Bottling Machine Automatic Kombucha Filling Machine
1. It can carry out bottle washing filling and capping in one machine.
2. The whole juice filling machine is designed in reasonable. The appearance is beautiful and you can do the maintenance easily.
3. It adopts bottleneck blocking type conveying-bottle structure to make changing bottle model more convenient, faster and easier.
4. The main machine is controlled by PLC completely. The hardware is from international famous company.

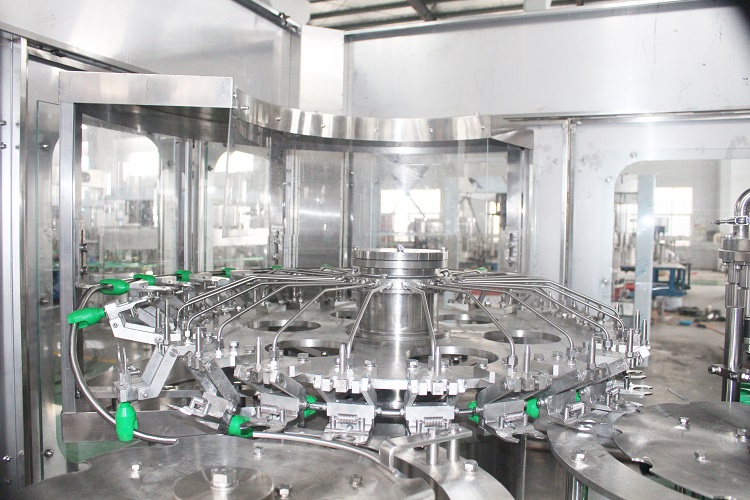

Kombucha Rinser
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

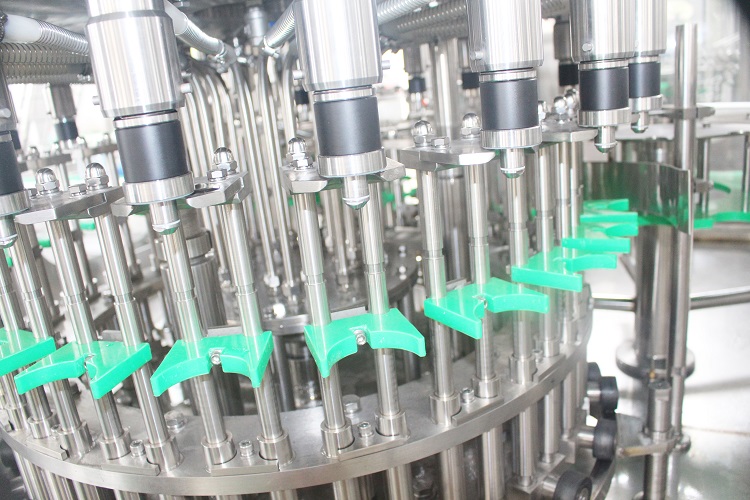

Kombucha Filler
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Kombucha Capper
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
NAVAN High Accuracy Kombucha Bottling Machine Automatic Kombucha Filling Machine
1. It can carry out bottle washing filling and capping in one machine.
2. The whole juice filling machine is designed in reasonable. The appearance is beautiful and you can do the maintenance easily.
3. It adopts bottleneck blocking type conveying-bottle structure to make changing bottle model more convenient, faster and easier.
4. The main machine is controlled by PLC completely. The hardware is from international famous company.
Kombucha Rinser
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Kombucha Filler
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Kombucha Capper
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
