Navan Super multi-function bottling machine, perfect for beer, carbonated drinks, and non-carbonated drinks. This machine offers multiple functions, saving space and investment. It can handle various bottle types, including glass, plastic, and steel, along with different cap options like plastic screw caps, aluminum caps, and metal crown caps.

  • NPXGF Series

  • NAVAN MACHINE

  • 8422301090

Capacity:
Please select
1200-12000BPH@ 500ml
Bottle volume:
Please select
330ml 550ml 1000ml 1500ml Other
Application:
Please select
carbonated soft drink Beer Non-carbonated drink So on
Availability:
Inquire

NAVAN Hot Sell High Speed Multi Function Glass Bottle Plastic Bottle Steel Bottle Beer Bottling Machines For Carbonated and Non-Carbonated Drink


Rinsing Part.
- Into bottle way is air conveyor direct connection with bottle dial.

- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and clean.

- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
Filling Part.
24 heads isobaric semi-electronic filling system , mechanism filling station supporting ,and air-tracka bottle mouth method
Capping Part.
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head.
Cap Style:
Plastic Screw Cap/ Aluminum Screw Cap/ Metal Crown Cap/ Plug-ring Crown Cap


Model
NPXGF9-9-4PRO
NPXGF24-24-10PRO
NPXGF32-32-12PRO
NPXGF40-40-12PRO
Application
Carbonated (aerated)beverage ,such as Cola , Soda water , Kvass , Kombucha , Banana Beer .
Production Capacity
500ml
1200BPH
6000BPH
9000BPH
12000BPH
1000ml
800BPH
4000BPH
7000BPH
9000BPH
1500ml
600BPH
3000BPH
4500BPH
6000BPH
Suitable bottle volume
Volume=100-2500ml        Diameter Φ=50-120
Specification bottle size
Bottle height H=120~320mm
Bottle type
PET Bottle  / Glass Bottle / Steel Bottle
Bottle neck / Cap Style
Plastic Screw Cap/ Aluminum Screw Cap/ Metal Crown Cap/ Plug-ring Crown Cap
Air source pressure(Mpa)
0.5-0.6
Liquid level error
±1~2mm
Increased Dissolved oxygen Content during bottling
300ppb
Motor power(kw)
Main motor 3kw
Main motor 4kw
Main motor5.5kw
Main motor 7.5kw
Power Supply
Voltage:220V~415V,3phase;       Frequency:50HZ/60HZ or your requirement
Overall dimensions(mm)
3000*2200*2200
3600*2950*2200
4600*3500*2200
5400*3950*2200
Weight (kg)
4000
6000
10000
15000
All machines could be customized , we could design and produce machines according to your request.

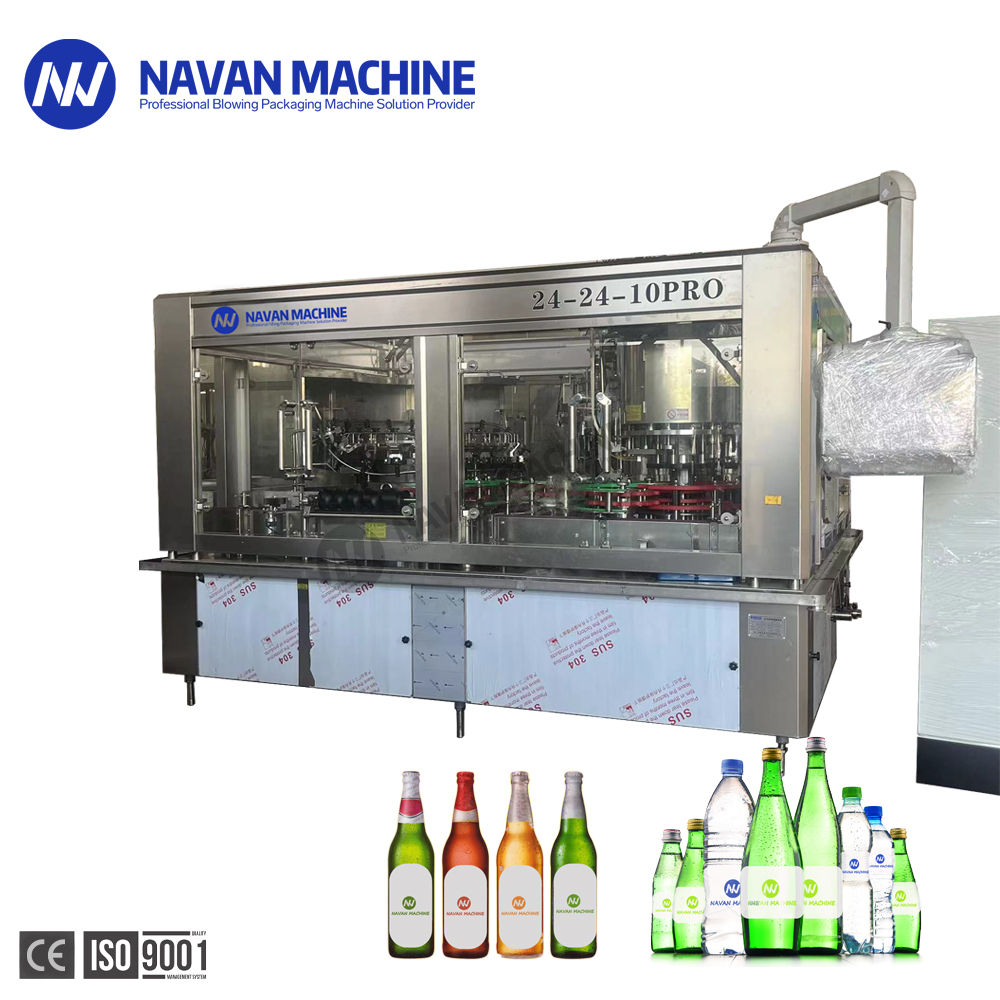

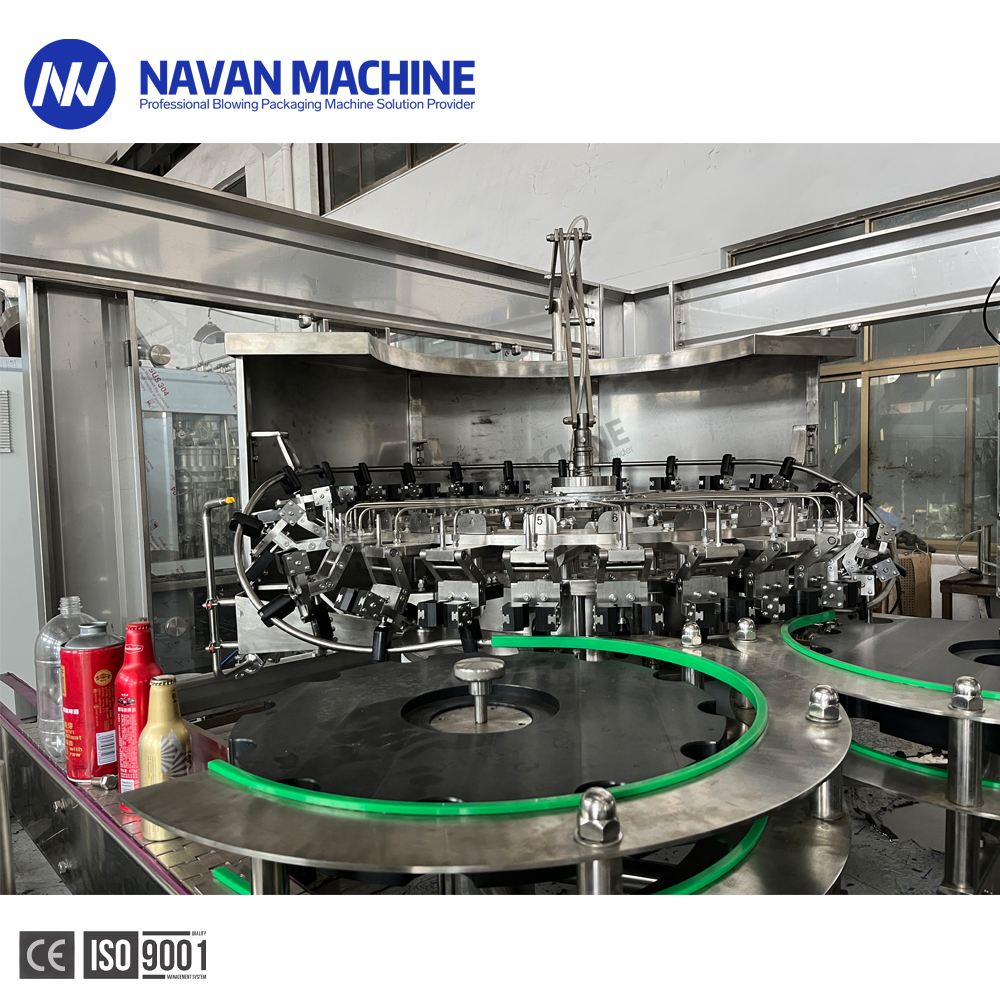

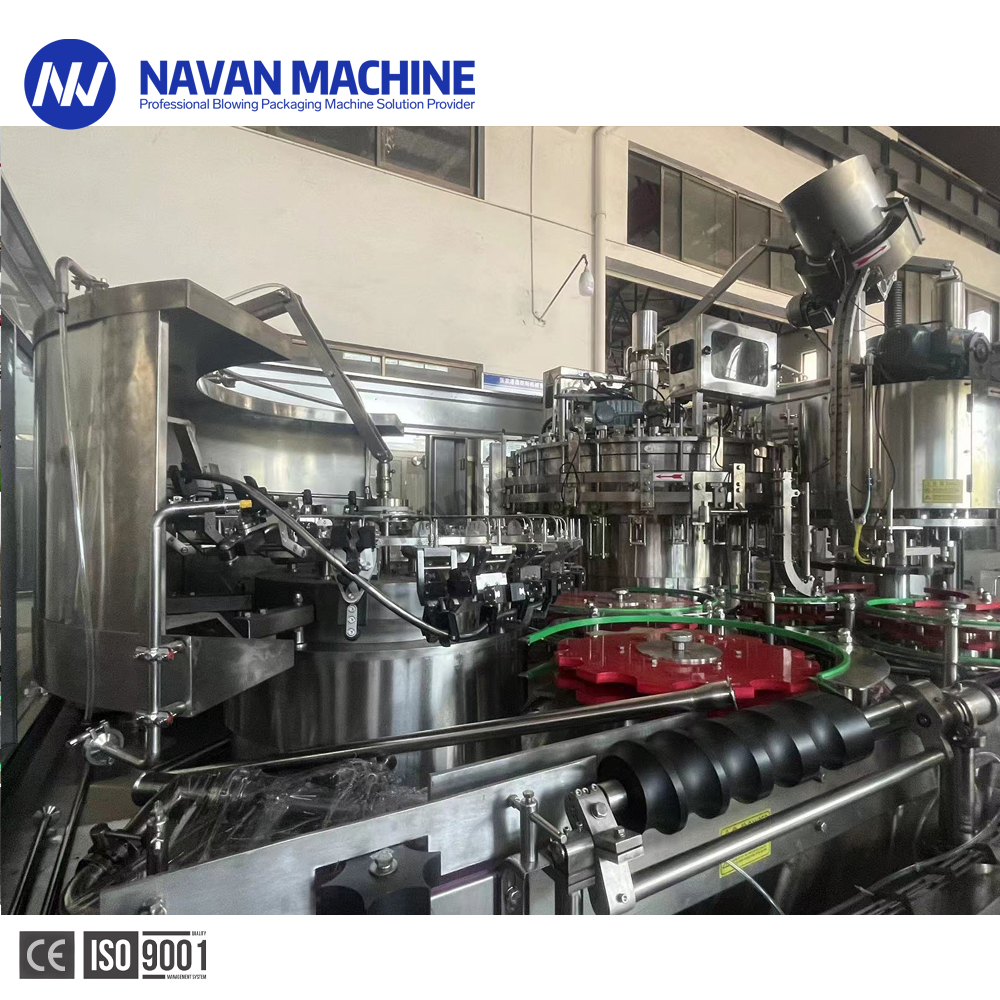

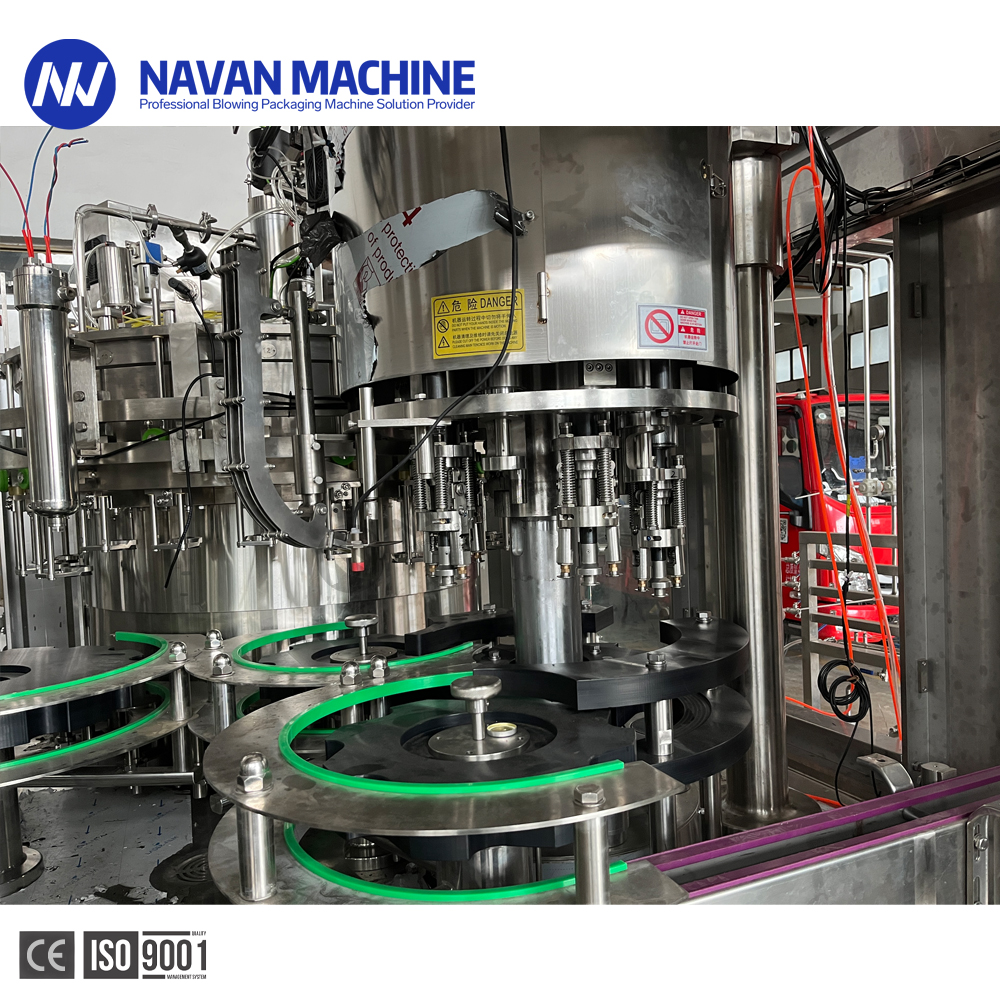

Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
