Super energy saving:
Compared with ordinary injection molding machine, energy saving can reach 20% - 80%
Precision and stability:
Equipped with high precision, high sensitivity rotary encoder, pressure sensor, respectively to monitor and
feedback the flow and pressure
High response and high efficiency:
The drive system of the servo energy-saving injection molding machine is sensitive and rapid. It takes only
0.06 seconds to reach the input value, and the production efficiency is greatly improved
YJL Series
NAVAN MACHINE
8477101090
Clamping Force: | Please select |
---|---|
Injection Weight: | Please select |
Injection product: | |
Availability: | |
NAVAN New Design Full Auto Caps Injection Molding Machine
It is the main molding equipment for making thermoplastic or thermosetting materials into various shapes of plastic products using plastic molding molds.
An injection molding machine is usually composed of an injection system, a clamping system, a hydraulic transmission system, an electrical control system, a lubrication system, a heating and cooling system, and a safety monitoring system.
4.PLC Contorl System.

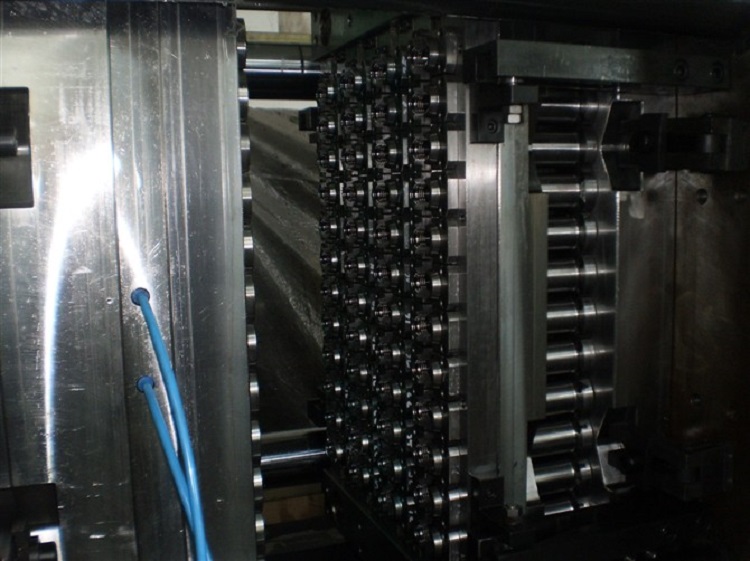

5.Cap Injection mould
NAVAN New Design Full Auto Caps Injection Molding Machine
It is the main molding equipment for making thermoplastic or thermosetting materials into various shapes of plastic products using plastic molding molds.
An injection molding machine is usually composed of an injection system, a clamping system, a hydraulic transmission system, an electrical control system, a lubrication system, a heating and cooling system, and a safety monitoring system.
4.PLC Contorl System.
5.Cap Injection mould
MACHINE MODEL | Unit | YJL100 | YJL130 | YJL160 | YJL200 | YJL230 | YJL 260 | ||||||||||||
Injection Device | I | II | III | I | II | III | I | II | III | I | II | III | I | II | III | I | II | III | |
Screw Diameter | mm | 36 | 40 | 42 | 40 | 42 | 45 | 41 | 43 | 45 | 45 | 48 | 52 | 48 | 52 | 55 | 52 | 55 | 60 |
Screw Diameter Ratio | L/D | 24.3 | 21.9 | 20.3 | 21.7 | 20.7 | 19.3 | 21.3 | 20.3 | 19.4 | 24.8 | 23.3 | 21.5 | 21.1 | 19.5 | 18.4 | 23.1 | 21.8 | 20 |
Theoretical Shot Volume | cm3 | 162 | 201 | 221 | 232 | 256 | 294 | 277 | 304 | 333 | 373 | 425 | 498 | 452 | 530 | 593 | 573 | 641 | 763 |
Injection Weight(PS) | g | 148 | 182 | 201 | 211 | 233 | 267 | 252 | 277 | 303 | 340 | 387 | 453 | 411 | 482 | 540 | 521 | 583 | 694 |
Injection Rate (PS) | g/s | 78 | 97 | 107 | 97 | 107 | 123 | 118 | 130 | 142 | 142 | 162 | 190 | 146 | 172 | 192 | 186 | 210 | 238 |
Injection Pressure | Mpa | 222 | 180 | 163 | 180 | 163 | 142 | 182 | 166 | 151 | 188 | 165 | 140 | 182 | 155 | 138 | 189 | 169 | 142 |
Plasticizing Capacity(PS) | g/s | 13 | 15 | 16 | 15 | 16 | 19 | 16 | 18 | 21 | 20 | 22.3 | 24 | 24 | 27 | 30 | 27 | 29 | 31 |
Screw Speed | rpm | 185 | 185 | 230 | 215 | 180 | 170 | ||||||||||||
Clamping Unit | |||||||||||||||||||
Clamping Force | KN | 1000 | 1300 | 1600 | 2000 | 2300 | 2600 | ||||||||||||
Togglestroke | mm | 340 | 380 | 420 | 436 | 500 | 560 | ||||||||||||
Space Between Tie-bars | mm*mm | 360*360 | 410*410 | 440*440 | 460*460 | 520*520 | 580*580 | ||||||||||||
Min-max Mould Thickness | mm | 150-350 | 150-430 | 180-450 | 180-500 | 200-530 | 220-580 | ||||||||||||
Ejection Stroke | mm | 105 | 120 | 130 | 140 | 140 | 140 | ||||||||||||
Ejecting Force | KN | 38 | 38 | 45 | 70 | 70 | 70 | ||||||||||||
Ejector Number | PC | 5 | 5 | 5 | 5 | 5 | 5 | ||||||||||||
Other | |||||||||||||||||||
Maximum System Pressure | Mpa | 16 | 16 | 16 | 16 | 16 | 16 | ||||||||||||
Oil Pump Motor Power | KW | 13(10.5) | 13(10.5) | 15(15.7) | 18.5(20.5) | 18.5(20.5) | 22(26.7) | ||||||||||||
Heater Power | KW | 8.8 | 10.6 | 10.55 | 16.5 | 14.5 | 18.6 | ||||||||||||
Oil Tank Capacity | Kg | 200 | 200 | 250 | 300 | 300 | 400 | ||||||||||||
Overall Dimension(About) | mm | 4360*1100*1885 | 4600*1150*1885 | 4850*1250*1960 | 5200*1457*2036 | 5540*1480*2160 | 5950*1550*2160 | ||||||||||||
Machine Weight(About) | t | 3.4 | 3.8 | 4.7 | 5.7 | 6.8 | 7.8 |
300~550 Tons Injection Molding Machine
MACHINE MODEL | Unit | YJL300 | YJL360 | YJL400 | YJL480 | YJL550 | ||||||||||
Injection Device | I | II | III | I | II | III | I | II | III | I | II | III | I | II | III | |
Screw Diameter | mm | 60 | 65 | 70 | 65 | 70 | 72 | 70 | 75 | 80 | 75 | 80 | 85 | 80 | 85 | 90 |
Screw Diameter Ratio | L/D | 25.2 | 23.3 | 21.6 | 23.3 | 21.6 | 21 | 21.4 | 20 | 18.8 | 23.5 | 22 | 20.7 | 23.4 | 22 | 20.8 |
Theoretical Shot Volume | cm3 | 847 | 995 | 1154 | 1127 | 1307 | 1383 | 1423 | 1634 | 1859 | 1876 | 2135 | 2410 | 2210 | 2495 | 2797 |
Injection Weight (PS) | g | 771 | 905 | 1050 | 1026 | 1190 | 1259 | 1295 | 1487 | 1692 | 1707 | 1943 | 2193 | 2011 | 2270 | 2545 |
Injection Rate (PS) | g/s | 238 | 279 | 324 | 260 | 301 | 319 | 323 | 371 | 422 | 391 | 445 | 502 | 416 | 470 | 527 |
Injection Pressure | Mpa | 198 | 169 | 145 | 181 | 156 | 148 | 182 | 158 | 139 | 179 | 158 | 140 | 184 | 163 | 145 |
Plasticizing Capacity (PS) | g/s | 31 | 35.3 | 39.8 | 35.3 | 39.8 | 45 | 45 | 51 | 59 | 51 | 54 | 58 | 56 | 62 | 68 |
Screw Speed | rpm | 140 | 140 | 150 | 120 | 120 | ||||||||||
Clamping Unit | ||||||||||||||||
Clamping Force | KN | 3000 | 3600 | 4000 | 4800 | 5500 | ||||||||||
Togglestroke | mm | 610 | 660 | 730 | 770 | 840 | ||||||||||
Space Between Tie-bars | mm*mm | 630*630 | 680*680 | 720*720 | 780*780 | 830*830 | ||||||||||
Min-max Mould Thickness | mm | 250-630 | 280-680 | 280-750 | 320-780 | 350-850 | ||||||||||
Ejection Stroke | mm | 160 | 180 | 180 | 200 | 220 | ||||||||||
Ejecting Force | KN | 90 | 110 | 110 | 110 | 150 | ||||||||||
Ejector Number | PC | 13 | 13 | 13 | 13 | 13 | ||||||||||
Others | ||||||||||||||||
Maximum System Pressure | Mpa | 16 | 16 | 16 | 16 | 16 | ||||||||||
Oil Pump Motor Power | KW | 30(35.6) | 30(35.6) | 37(48.2) | 45(26.7+24.1) | 55(26.7+26.7) | ||||||||||
Heater Power | KW | 27.2 | 29 | 25.6 | 37 | 41 | ||||||||||
Oil Tank Capacity | Kg | 520 | 520 | 600 | 800 | 900 | ||||||||||
Overall Dimension (About) | mm | 6590*1665*2100 | 7200*1860*2350 | 7600*1860*2360 | 8500*1865*2505 | 9300*2070*2500 | ||||||||||
Machine Weight (About) | t | 11 | 13 | 15 | 18 | 22 |
680~1600 Tons Injection Molding Machine
MACHINE MODEL | Unit | YJL680 | YJL850 | YJW11000 | YJT13000 | YJW16000 | ||||||||||
Injection Device | I | II | III | I | II | III | I | II | III | I | II | III | I | II | III | |
Screw Diameter | mm | 90 | 95 | 100 | 100 | 110 | 120 | 110 | 120 | 130 | 110 | 120 | 130 | 130 | 140 | 150 |
Screw Diameter Ratio | L/D | 23.6 | 22.4 | 21.3 | 24.4 | 22.2 | 20.3 | 24 | 22 | 20.3 | 23.8 | 22 | 20.2 | 23.7 | 22 | 20.5 |
Theoretical Shot Volume | cm3 | 2924 | 3258 | 3611 | 4003 | 4844 | 5765 | 4000 | 5600 | 6320 | 4600 | 6300 | 7800 | 8000 | 9500 | 11000 |
Injection Weight(PS) | g | 2661 | 2965 | 3286 | 3643 | 4408 | 5246 | 3780 | 5292 | 5972 | 4200 | 5755 | 7130 | 7560 | 8978 | 10395 |
Injection Rate(PS) | g/s | 498 | 555 | 614 | 549 | 663 | 790 | 760 | 904 | 974 | 803 | 951 | 1048 | 1107 | 1284 | 1474 |
Injection Pressure | Mpa | 180 | 162 | 146 | 201 | 166 | 140 | 169 | 142 | 132 | 204 | 172 | 146 | 174 | 150 | 131 |
Plasticizing Capacity (PS) | g/s | 74 | 78 | 84 | 86 | 102 | 108 | 98.3 | 122.3 | 149.8 | 101.5 | 124 | 140 | 149.8 | 173.8 | 199 |
Screw Speed | rpm | 120 | 84 | 80 | 100 | 80 | ||||||||||
Clamping Unit | ||||||||||||||||
Clamping Force | KN | 6800 | 8500 | 11000 | 13000 | 16000 | ||||||||||
"Ibgglestroke | mm | 920 | 1020 | 1220 | 1360 | 1530 | ||||||||||
Space Between Tie-bars | mm*mm | 920*920 | 1030*1030 | 1160*1160 | 1300*1300 | 1500*1500 | ||||||||||
Min-max Mould Thickness | mm | 400-920 | 450-1030 | 520-1250 | 550-1360 | 650-1450 | ||||||||||
Ejection Stroke | mm | 280 | 300 | 330 | 360 | 405 | ||||||||||
Ejecting Force | KN | 180 | 210 | 280 | 280 | 400 | ||||||||||
Ejector Number | PC | 17 | 21 | 21 | 21 | 29 | ||||||||||
Other | ||||||||||||||||
Maximum System Pressure | Mpa | 16 | 16 | 16 | 16 | 16 | ||||||||||
Oil Pump Motor Power | KW | 30+3 0(35.6+31.4) | 30+45(48.2+35.6) | 45+4 5(31+31+31) | 65+6 5(31+44+44) | 45+45+4 5(48.2+48.2+48.2) | ||||||||||
Heater Power | KW | 51 | 70.2 | 65.7 | 65.7 | 96.1 | ||||||||||
Oil Tank Capacity | Kg | 820 | 1135 | |||||||||||||
Overall Dimension (About) | m | 10.2*2.3*2.53 | 11.7*2.54*2.7」 | 13.11*2.73*4.24 | 13.55*2.88*4.13 | 15.99*3.3*4.56 | ||||||||||
Machine Weight (About) | t | 28 | 37 | 61.5 | 78 | 102 |
MACHINE MODEL | Unit | YJL100 | YJL130 | YJL160 | YJL200 | YJL230 | YJL 260 | ||||||||||||
Injection Device | I | II | III | I | II | III | I | II | III | I | II | III | I | II | III | I | II | III | |
Screw Diameter | mm | 36 | 40 | 42 | 40 | 42 | 45 | 41 | 43 | 45 | 45 | 48 | 52 | 48 | 52 | 55 | 52 | 55 | 60 |
Screw Diameter Ratio | L/D | 24.3 | 21.9 | 20.3 | 21.7 | 20.7 | 19.3 | 21.3 | 20.3 | 19.4 | 24.8 | 23.3 | 21.5 | 21.1 | 19.5 | 18.4 | 23.1 | 21.8 | 20 |
Theoretical Shot Volume | cm3 | 162 | 201 | 221 | 232 | 256 | 294 | 277 | 304 | 333 | 373 | 425 | 498 | 452 | 530 | 593 | 573 | 641 | 763 |
Injection Weight(PS) | g | 148 | 182 | 201 | 211 | 233 | 267 | 252 | 277 | 303 | 340 | 387 | 453 | 411 | 482 | 540 | 521 | 583 | 694 |
Injection Rate (PS) | g/s | 78 | 97 | 107 | 97 | 107 | 123 | 118 | 130 | 142 | 142 | 162 | 190 | 146 | 172 | 192 | 186 | 210 | 238 |
Injection Pressure | Mpa | 222 | 180 | 163 | 180 | 163 | 142 | 182 | 166 | 151 | 188 | 165 | 140 | 182 | 155 | 138 | 189 | 169 | 142 |
Plasticizing Capacity(PS) | g/s | 13 | 15 | 16 | 15 | 16 | 19 | 16 | 18 | 21 | 20 | 22.3 | 24 | 24 | 27 | 30 | 27 | 29 | 31 |
Screw Speed | rpm | 185 | 185 | 230 | 215 | 180 | 170 | ||||||||||||
Clamping Unit | |||||||||||||||||||
Clamping Force | KN | 1000 | 1300 | 1600 | 2000 | 2300 | 2600 | ||||||||||||
Togglestroke | mm | 340 | 380 | 420 | 436 | 500 | 560 | ||||||||||||
Space Between Tie-bars | mm*mm | 360*360 | 410*410 | 440*440 | 460*460 | 520*520 | 580*580 | ||||||||||||
Min-max Mould Thickness | mm | 150-350 | 150-430 | 180-450 | 180-500 | 200-530 | 220-580 | ||||||||||||
Ejection Stroke | mm | 105 | 120 | 130 | 140 | 140 | 140 | ||||||||||||
Ejecting Force | KN | 38 | 38 | 45 | 70 | 70 | 70 | ||||||||||||
Ejector Number | PC | 5 | 5 | 5 | 5 | 5 | 5 | ||||||||||||
Other | |||||||||||||||||||
Maximum System Pressure | Mpa | 16 | 16 | 16 | 16 | 16 | 16 | ||||||||||||
Oil Pump Motor Power | KW | 13(10.5) | 13(10.5) | 15(15.7) | 18.5(20.5) | 18.5(20.5) | 22(26.7) | ||||||||||||
Heater Power | KW | 8.8 | 10.6 | 10.55 | 16.5 | 14.5 | 18.6 | ||||||||||||
Oil Tank Capacity | Kg | 200 | 200 | 250 | 300 | 300 | 400 | ||||||||||||
Overall Dimension(About) | mm | 4360*1100*1885 | 4600*1150*1885 | 4850*1250*1960 | 5200*1457*2036 | 5540*1480*2160 | 5950*1550*2160 | ||||||||||||
Machine Weight(About) | t | 3.4 | 3.8 | 4.7 | 5.7 | 6.8 | 7.8 |
300~550 Tons Injection Molding Machine
MACHINE MODEL | Unit | YJL300 | YJL360 | YJL400 | YJL480 | YJL550 | ||||||||||
Injection Device | I | II | III | I | II | III | I | II | III | I | II | III | I | II | III | |
Screw Diameter | mm | 60 | 65 | 70 | 65 | 70 | 72 | 70 | 75 | 80 | 75 | 80 | 85 | 80 | 85 | 90 |
Screw Diameter Ratio | L/D | 25.2 | 23.3 | 21.6 | 23.3 | 21.6 | 21 | 21.4 | 20 | 18.8 | 23.5 | 22 | 20.7 | 23.4 | 22 | 20.8 |
Theoretical Shot Volume | cm3 | 847 | 995 | 1154 | 1127 | 1307 | 1383 | 1423 | 1634 | 1859 | 1876 | 2135 | 2410 | 2210 | 2495 | 2797 |
Injection Weight (PS) | g | 771 | 905 | 1050 | 1026 | 1190 | 1259 | 1295 | 1487 | 1692 | 1707 | 1943 | 2193 | 2011 | 2270 | 2545 |
Injection Rate (PS) | g/s | 238 | 279 | 324 | 260 | 301 | 319 | 323 | 371 | 422 | 391 | 445 | 502 | 416 | 470 | 527 |
Injection Pressure | Mpa | 198 | 169 | 145 | 181 | 156 | 148 | 182 | 158 | 139 | 179 | 158 | 140 | 184 | 163 | 145 |
Plasticizing Capacity (PS) | g/s | 31 | 35.3 | 39.8 | 35.3 | 39.8 | 45 | 45 | 51 | 59 | 51 | 54 | 58 | 56 | 62 | 68 |
Screw Speed | rpm | 140 | 140 | 150 | 120 | 120 | ||||||||||
Clamping Unit | ||||||||||||||||
Clamping Force | KN | 3000 | 3600 | 4000 | 4800 | 5500 | ||||||||||
Togglestroke | mm | 610 | 660 | 730 | 770 | 840 | ||||||||||
Space Between Tie-bars | mm*mm | 630*630 | 680*680 | 720*720 | 780*780 | 830*830 | ||||||||||
Min-max Mould Thickness | mm | 250-630 | 280-680 | 280-750 | 320-780 | 350-850 | ||||||||||
Ejection Stroke | mm | 160 | 180 | 180 | 200 | 220 | ||||||||||
Ejecting Force | KN | 90 | 110 | 110 | 110 | 150 | ||||||||||
Ejector Number | PC | 13 | 13 | 13 | 13 | 13 | ||||||||||
Others | ||||||||||||||||
Maximum System Pressure | Mpa | 16 | 16 | 16 | 16 | 16 | ||||||||||
Oil Pump Motor Power | KW | 30(35.6) | 30(35.6) | 37(48.2) | 45(26.7+24.1) | 55(26.7+26.7) | ||||||||||
Heater Power | KW | 27.2 | 29 | 25.6 | 37 | 41 | ||||||||||
Oil Tank Capacity | Kg | 520 | 520 | 600 | 800 | 900 | ||||||||||
Overall Dimension (About) | mm | 6590*1665*2100 | 7200*1860*2350 | 7600*1860*2360 | 8500*1865*2505 | 9300*2070*2500 | ||||||||||
Machine Weight (About) | t | 11 | 13 | 15 | 18 | 22 |
680~1600 Tons Injection Molding Machine
MACHINE MODEL | Unit | YJL680 | YJL850 | YJW11000 | YJT13000 | YJW16000 | ||||||||||
Injection Device | I | II | III | I | II | III | I | II | III | I | II | III | I | II | III | |
Screw Diameter | mm | 90 | 95 | 100 | 100 | 110 | 120 | 110 | 120 | 130 | 110 | 120 | 130 | 130 | 140 | 150 |
Screw Diameter Ratio | L/D | 23.6 | 22.4 | 21.3 | 24.4 | 22.2 | 20.3 | 24 | 22 | 20.3 | 23.8 | 22 | 20.2 | 23.7 | 22 | 20.5 |
Theoretical Shot Volume | cm3 | 2924 | 3258 | 3611 | 4003 | 4844 | 5765 | 4000 | 5600 | 6320 | 4600 | 6300 | 7800 | 8000 | 9500 | 11000 |
Injection Weight(PS) | g | 2661 | 2965 | 3286 | 3643 | 4408 | 5246 | 3780 | 5292 | 5972 | 4200 | 5755 | 7130 | 7560 | 8978 | 10395 |
Injection Rate(PS) | g/s | 498 | 555 | 614 | 549 | 663 | 790 | 760 | 904 | 974 | 803 | 951 | 1048 | 1107 | 1284 | 1474 |
Injection Pressure | Mpa | 180 | 162 | 146 | 201 | 166 | 140 | 169 | 142 | 132 | 204 | 172 | 146 | 174 | 150 | 131 |
Plasticizing Capacity (PS) | g/s | 74 | 78 | 84 | 86 | 102 | 108 | 98.3 | 122.3 | 149.8 | 101.5 | 124 | 140 | 149.8 | 173.8 | 199 |
Screw Speed | rpm | 120 | 84 | 80 | 100 | 80 | ||||||||||
Clamping Unit | ||||||||||||||||
Clamping Force | KN | 6800 | 8500 | 11000 | 13000 | 16000 | ||||||||||
"Ibgglestroke | mm | 920 | 1020 | 1220 | 1360 | 1530 | ||||||||||
Space Between Tie-bars | mm*mm | 920*920 | 1030*1030 | 1160*1160 | 1300*1300 | 1500*1500 | ||||||||||
Min-max Mould Thickness | mm | 400-920 | 450-1030 | 520-1250 | 550-1360 | 650-1450 | ||||||||||
Ejection Stroke | mm | 280 | 300 | 330 | 360 | 405 | ||||||||||
Ejecting Force | KN | 180 | 210 | 280 | 280 | 400 | ||||||||||
Ejector Number | PC | 17 | 21 | 21 | 21 | 29 | ||||||||||
Other | ||||||||||||||||
Maximum System Pressure | Mpa | 16 | 16 | 16 | 16 | 16 | ||||||||||
Oil Pump Motor Power | KW | 30+3 0(35.6+31.4) | 30+45(48.2+35.6) | 45+4 5(31+31+31) | 65+6 5(31+44+44) | 45+45+4 5(48.2+48.2+48.2) | ||||||||||
Heater Power | KW | 51 | 70.2 | 65.7 | 65.7 | 96.1 | ||||||||||
Oil Tank Capacity | Kg | 820 | 1135 | |||||||||||||
Overall Dimension (About) | m | 10.2*2.3*2.53 | 11.7*2.54*2.7」 | 13.11*2.73*4.24 | 13.55*2.88*4.13 | 15.99*3.3*4.56 | ||||||||||
Machine Weight (About) | t | 28 | 37 | 61.5 | 78 | 102 |
