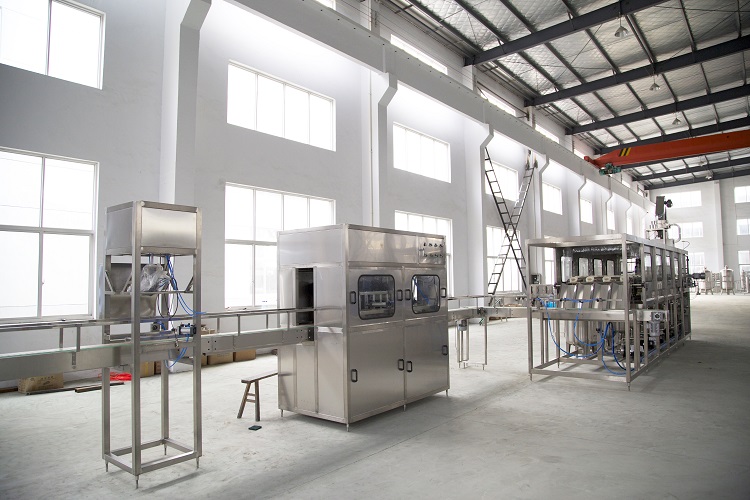

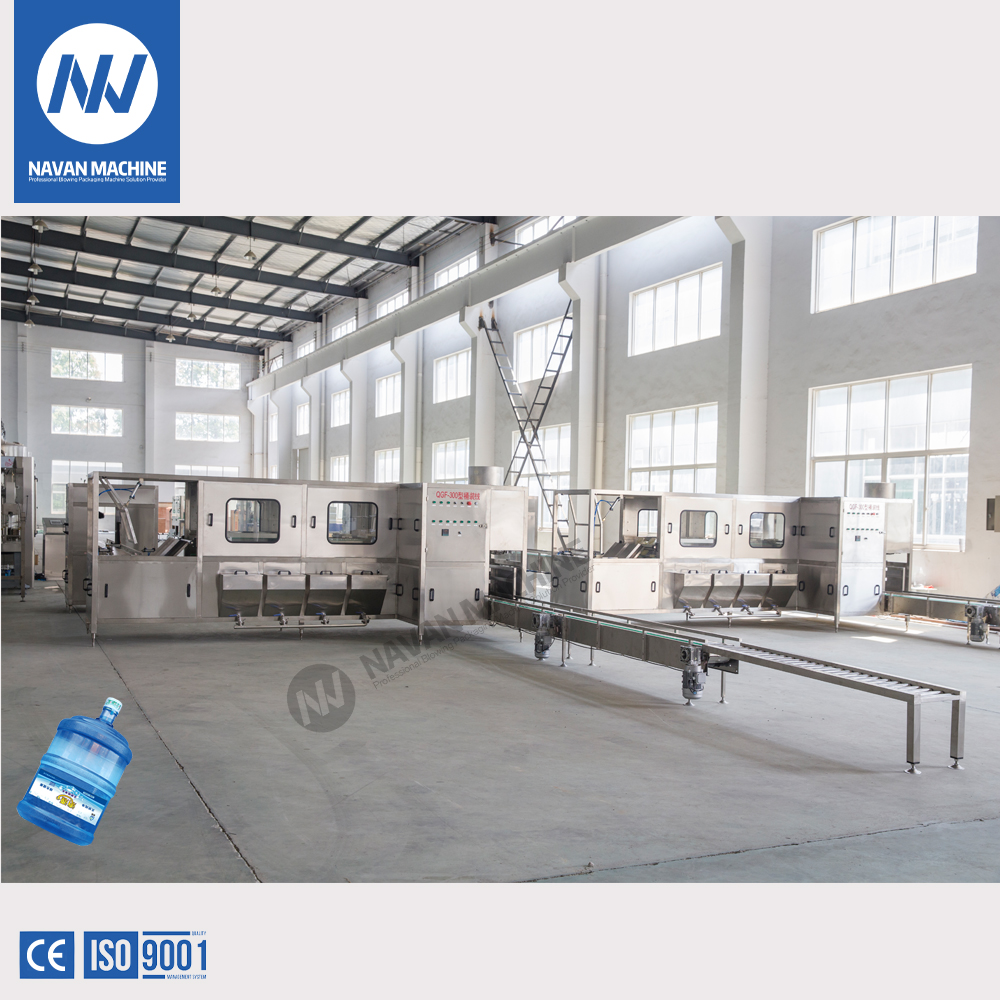

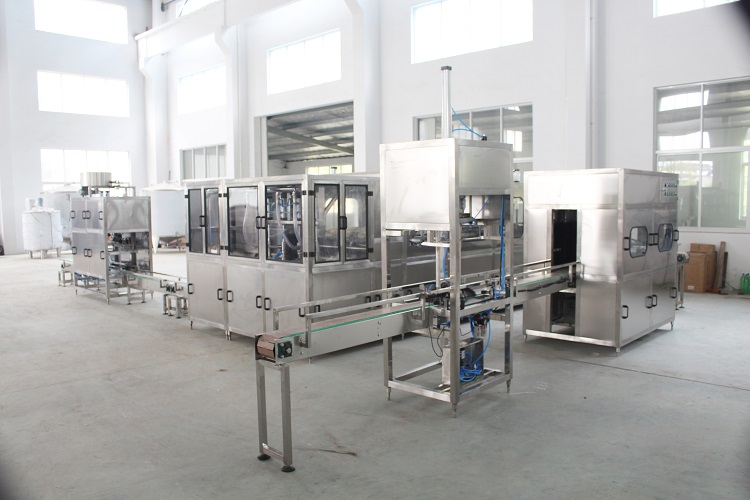

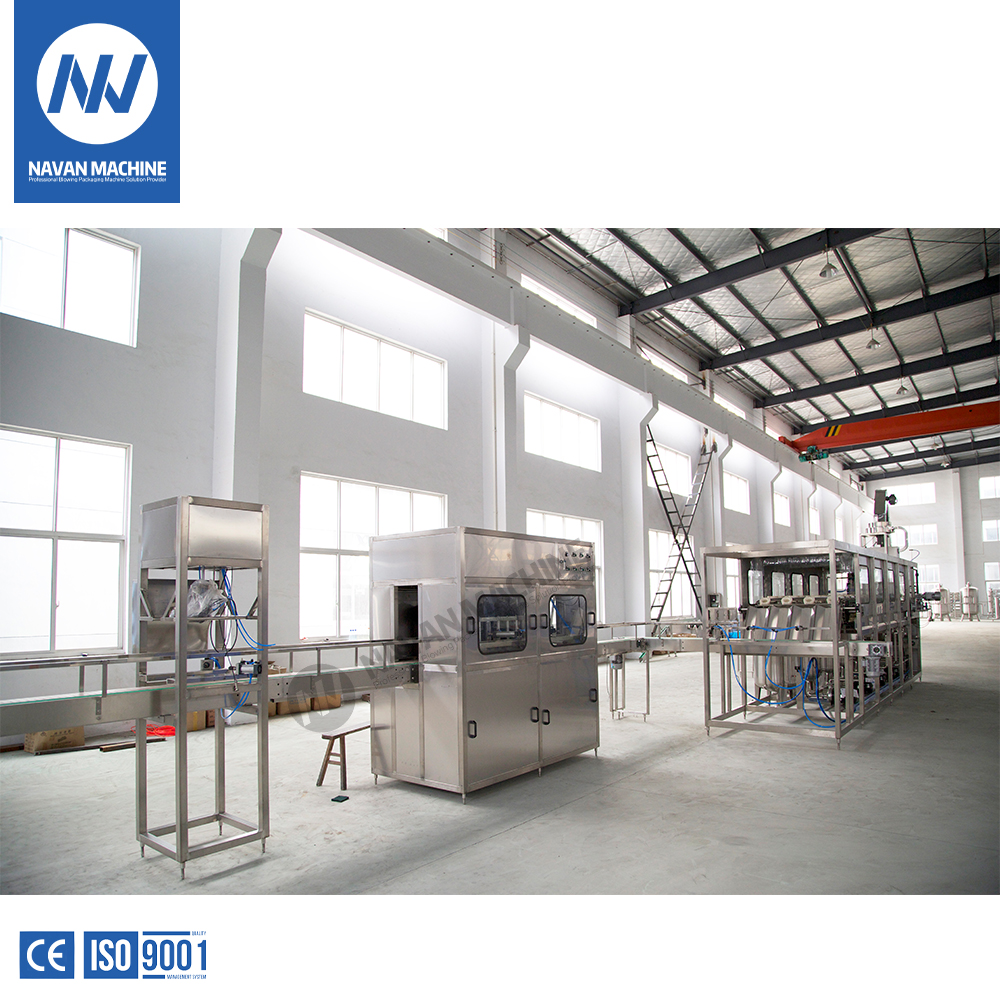

The QGF-series barrel filling line is the main machinery used for manufacturing 5-gallon barreled drinking water. This equipment is perfect for producing mineral water, distilled water, and purified water. Made from high-quality stainless steel, it is resistant to corrosion and easy to clean. The electrical components are sourced from well-known international brands, and the line features specially designed interior and exterior spray nozzles for cleaning the barrels. With its efficient and compact design, the line offers a high level of automation, ensuring stability and reliability as a fully automated barrel filling line that integrates machine, electricity, and compressed air.

  • QGF Series

  • NAVAN MACHINE

  • 8422301090

Capacity:
Bottle volume:
Please select
Application:
Availability:

NAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production Line


The QGF-series barrel filling line is the main equipment for producing 5-gallon barreled drinking water. It's perfect for making mineral water, distilled water, and purified water. The line is made of high-quality stainless steel, which makes it resistant to corrosion and easy to clean. The electrical components are from well-known international brands, and the line features interior and exterior spray nozzles for cleaning barrels, which are designed by experts. The line is compact, efficient, and highly automated, ensuring stability and reliability as a fully automatic barrel filling line that integrates machine, electricity, and compressed air.


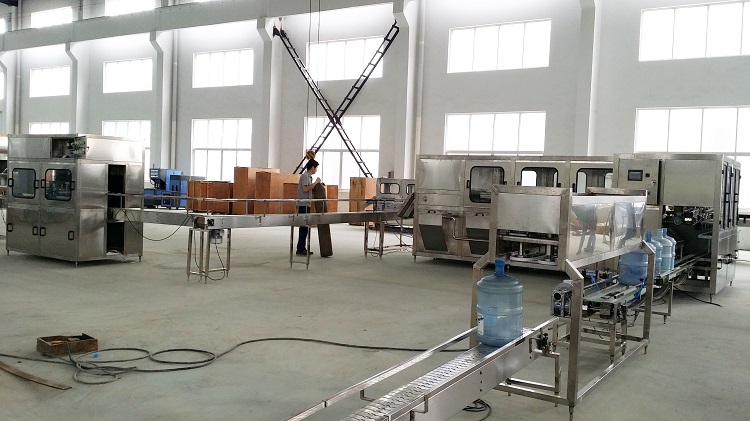

Flow Chart:

Empty bottle Conveyor belt------Automatic Leakage Checker-----Caps Decapper --- Brush External Bottle Washer ----- ---Automatic Bottle Loading System---- Internal Bottle Washer/ Disinfecter ----Rotary Filler & Chain Plate Capper---Filled Bottle Conveyor Belt----Lamp Checker Insert the caps label by workers----Label Heat Shrinking Machine Filled Bottles Conveyor Belt to the truck or stock room

NAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production Line

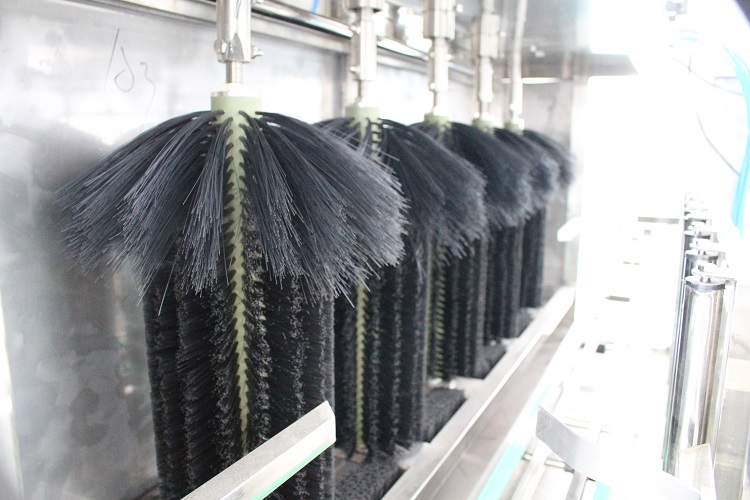

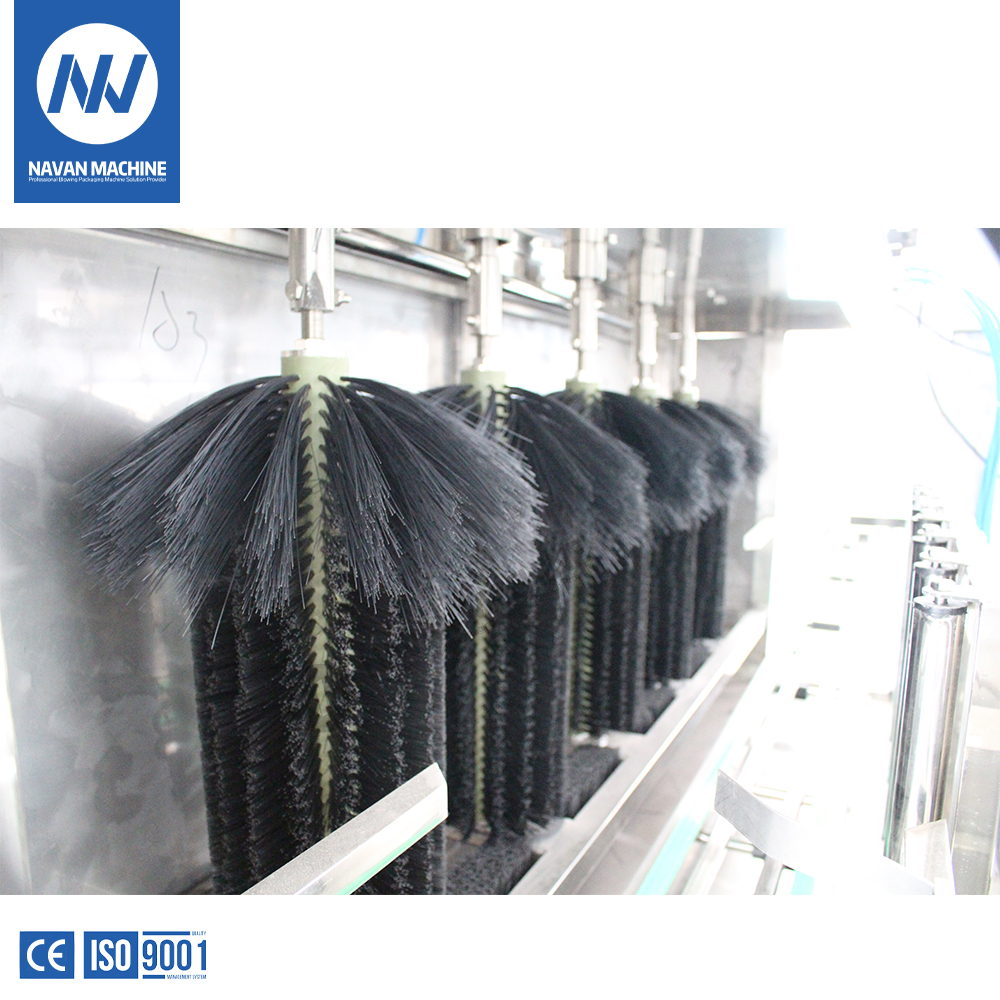

Outside Brusher Machine

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTECH.

NAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production LineNAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production Line

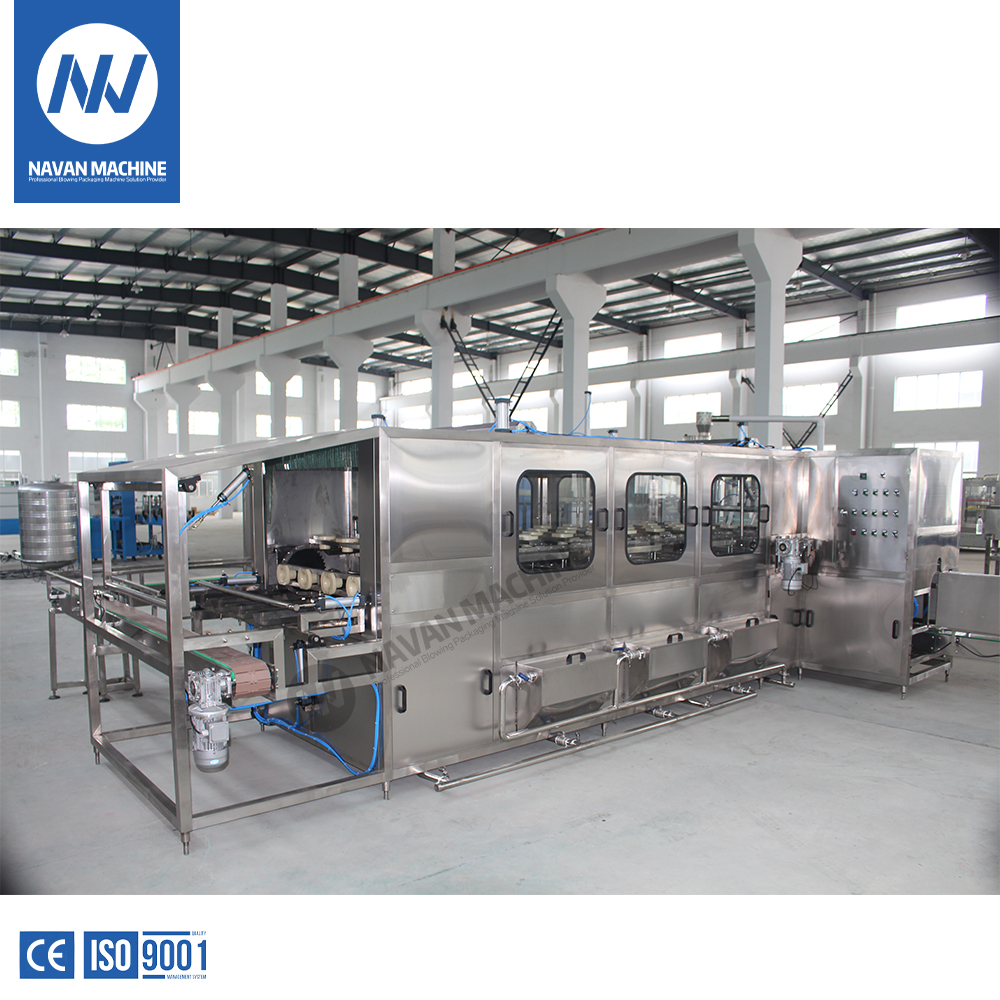

Rinsing part

1/All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .

2/304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

3/304/316 stainless steel washing pump

NAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production Line

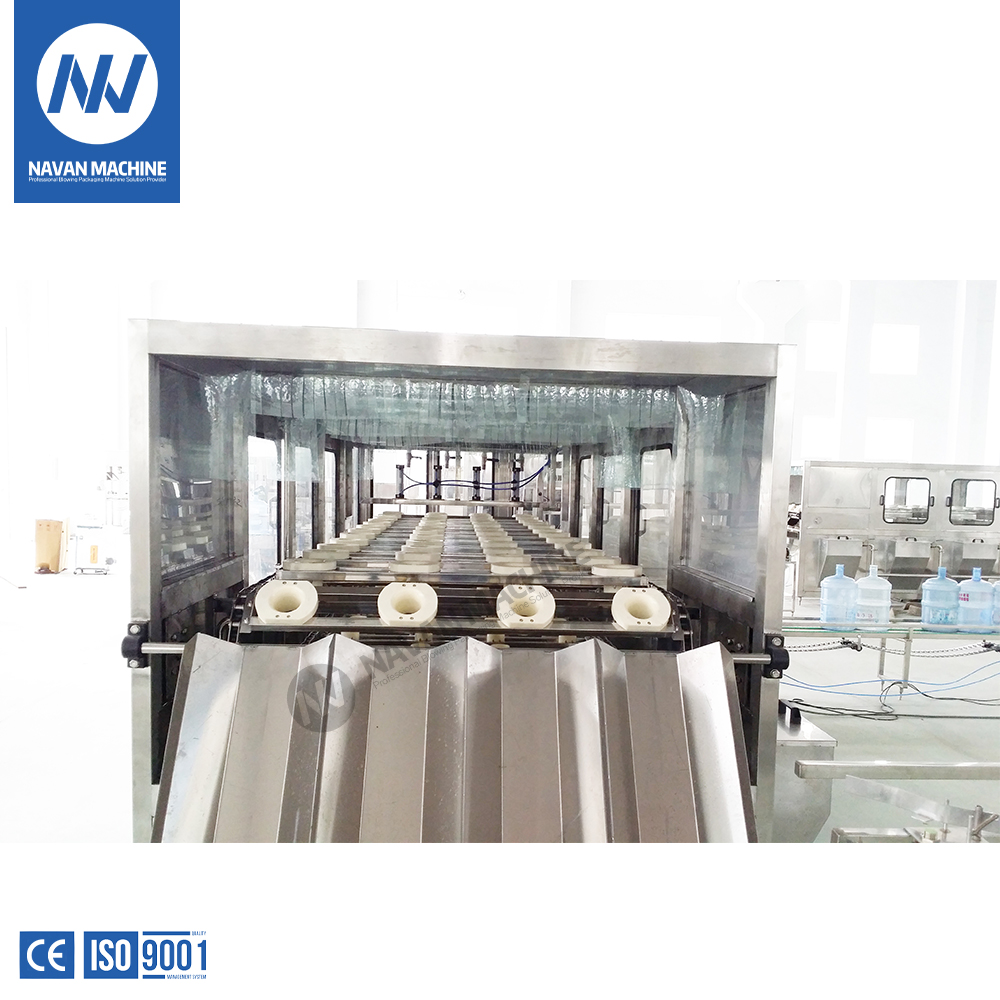

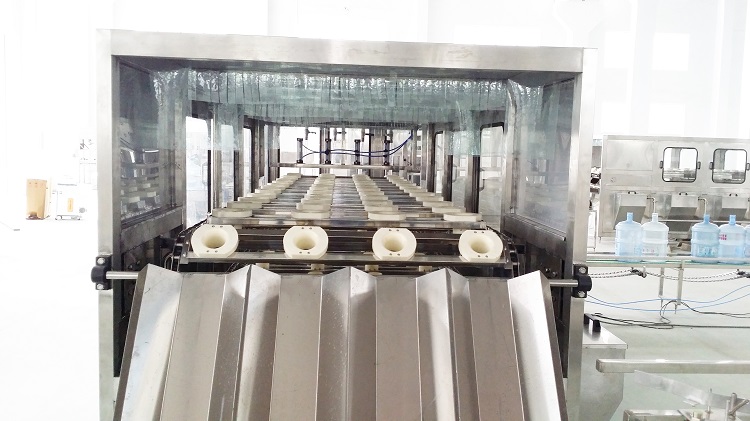

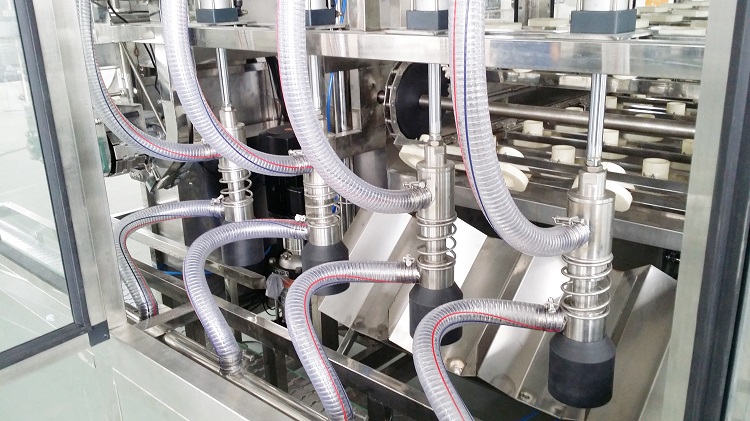

Bottle Filler

1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable. 2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

NAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production Line

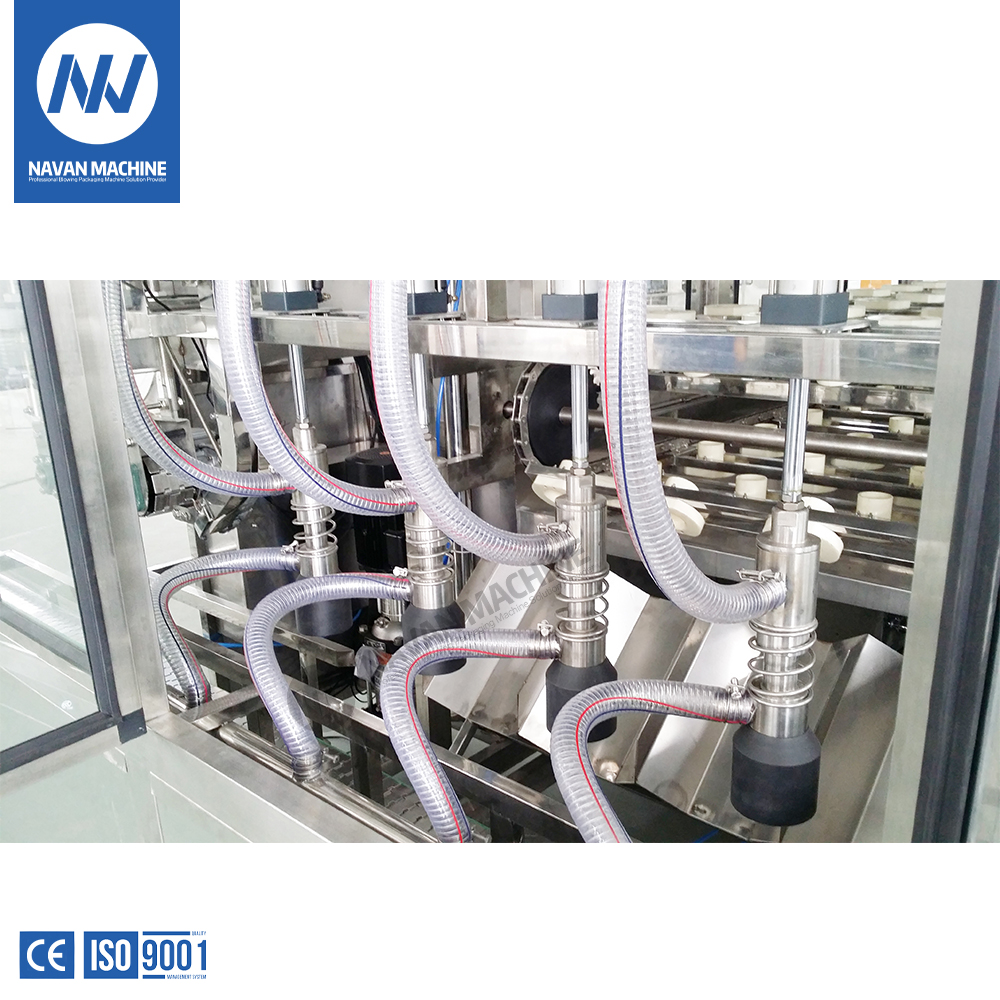

Bottle Capper

1/ The control of liquid level difference is maintained at 1cm.

2/ The machine is furnished with a Cap Sterilization system measuring 1.2m. This system enhances the cleanliness and safety of products by employing sterilization and finished water.

3/ ABB/SEW motor, GRUNDFOS water pump, and FESTO pneumatic components are available for customers to select and equip.


NAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production Line


Model QGF-120 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200
Production Capacity(B/H) 100-150 250-300 400-450 600 900 1200
Filling heads 1 2 3 4 6 8
Machine type Linear type Linear type Linear type Linear type Rotary type Rotary type
Filling capacity(L) 10~20L
Barrel specification Ф270X490mm
Air source pressure(MPa) 0.4-06
Air consumption(m3/min) 0.35 0.5 0.5 0.6 0.6 0.6
Total Power(Kw) 2.9 3.5 4.3 6.2 8.7 9.5

Overall Dimensions

(L×W×H)(mm)

2600×650

×1550

3900×150

0×1700

3900×1775

×1700

3900×2050

×1700

2200×1860

×2200

2560×2350

×2200

Total Weight(Kg) 800 1500 2000 2500 3000 3500

NAVAN Quality Assurance 5 Gallon Filling Machine Barreled Water Production Line

Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
