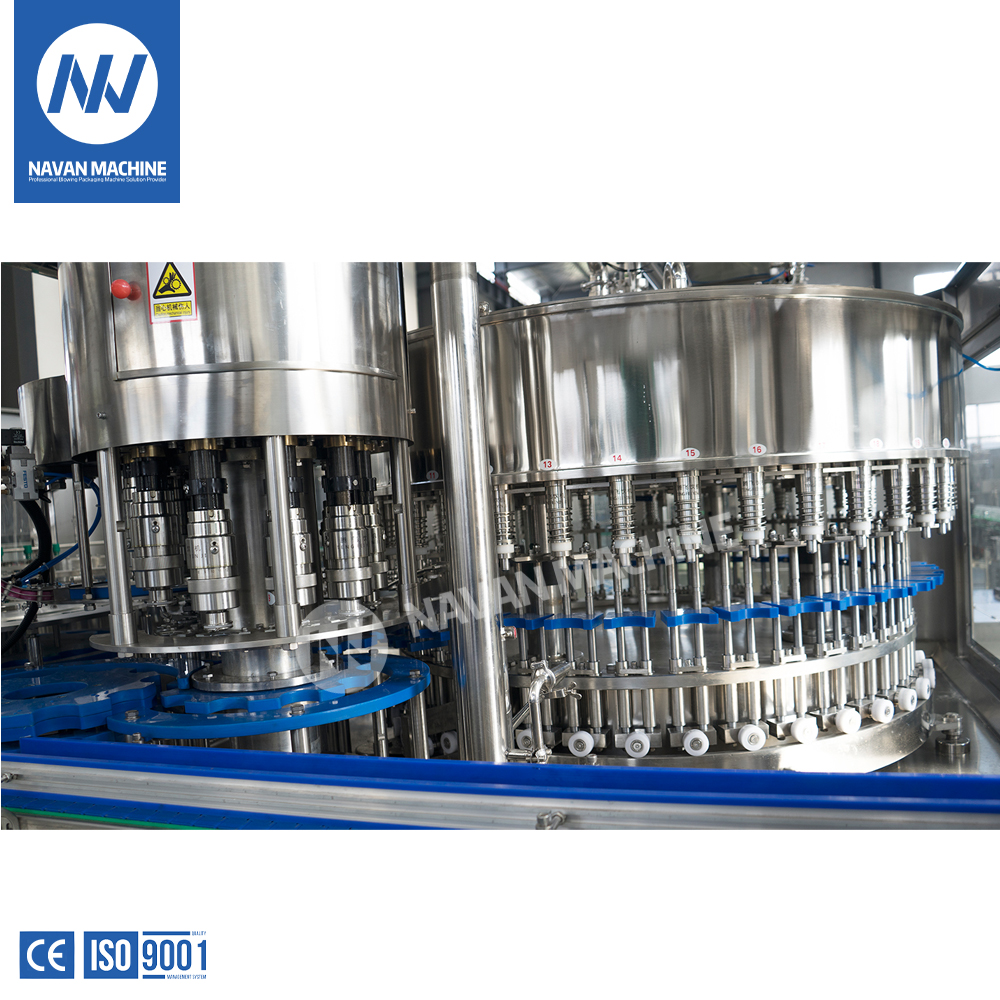

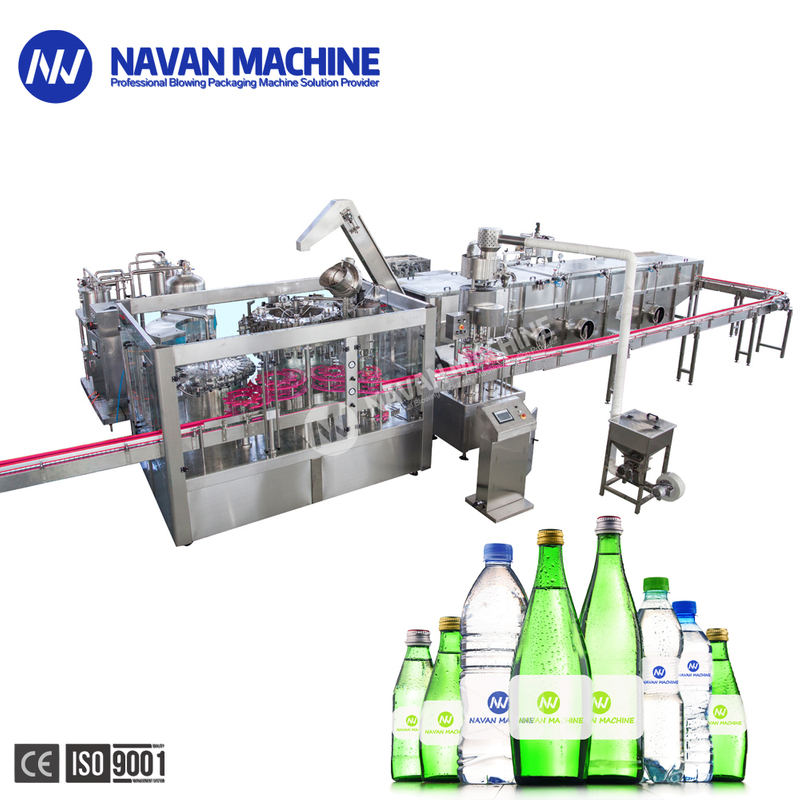

NAVAN Water Bottling Machine Automatic 3 In1 Small Bottle Water Filling Machine

This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefits .

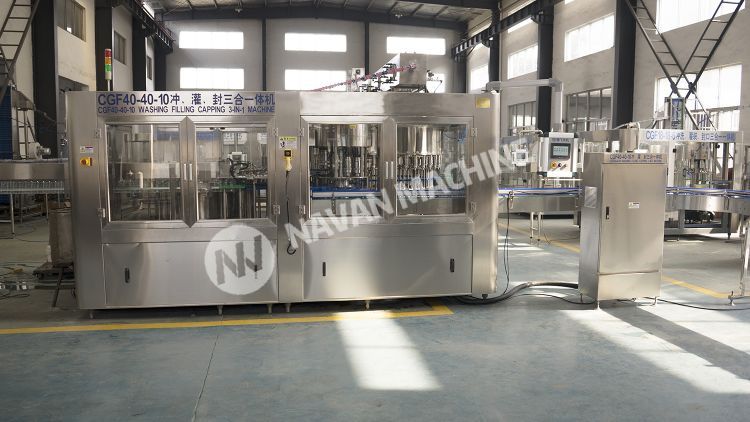

Navan filling machine1

Equipment Type	Automatic
Bottle Type	PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm
Output	up to36,000 bph
Your product	mineral water/pure water/non-gas wine drink and so on.

Washing Parts.

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

- 304/316 stainless steel washing pump make the machine more durable.

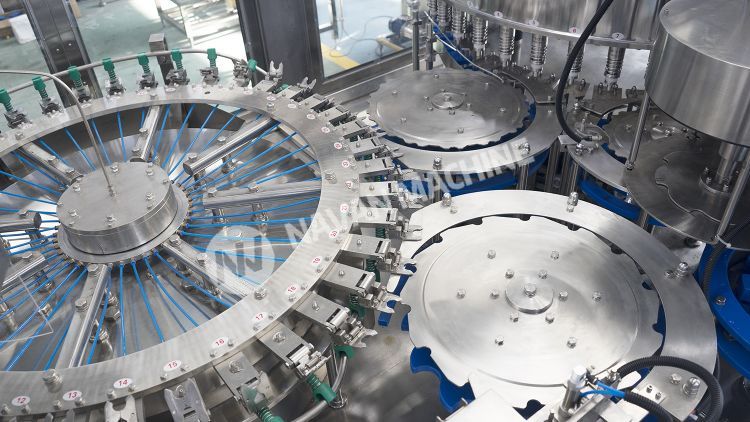

Navan filling machine4

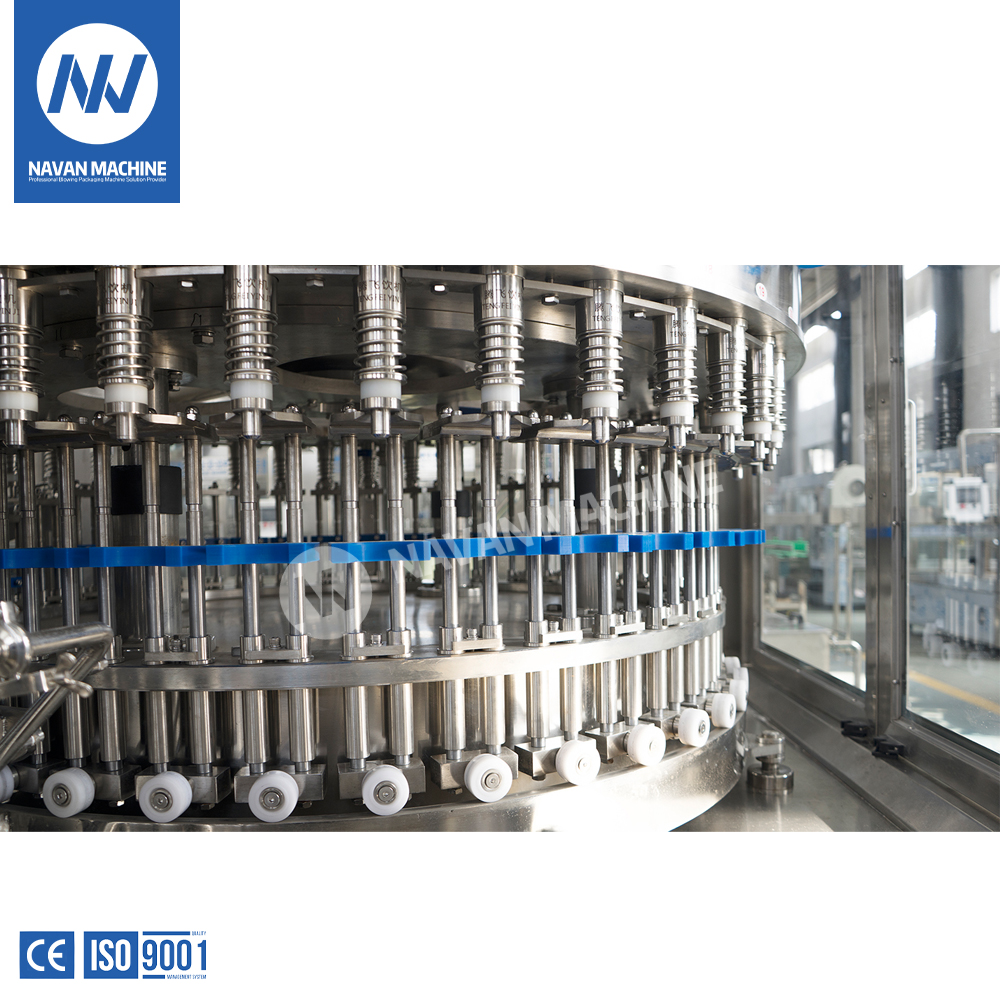

Filling Parts.

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump

- Efficient spray nozzle rinse thoroughly and save water for flushing

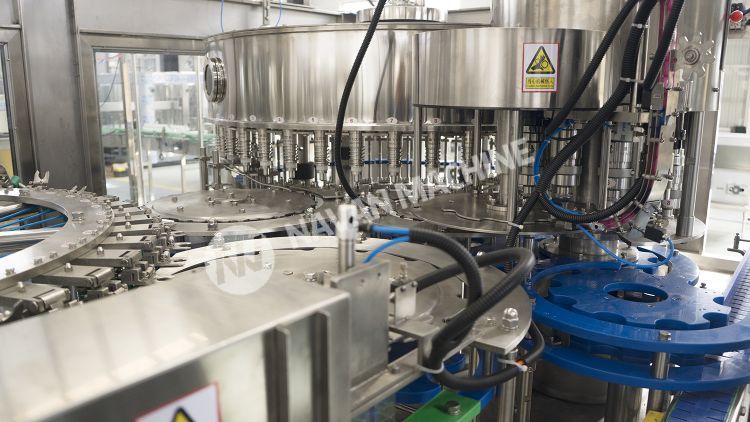

Navan filling machine3

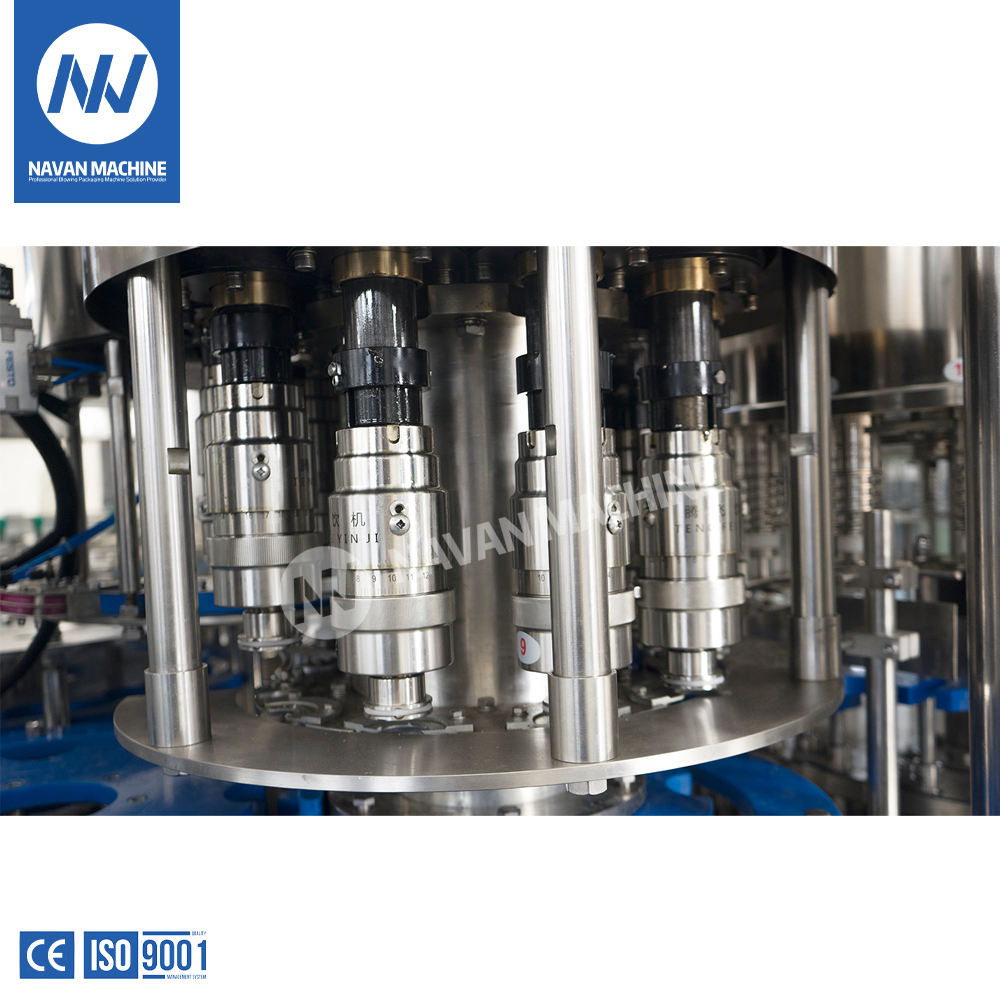

Capping Parts.

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle

- Capping effect is stable and reliable, Defective rate ≤0.2%

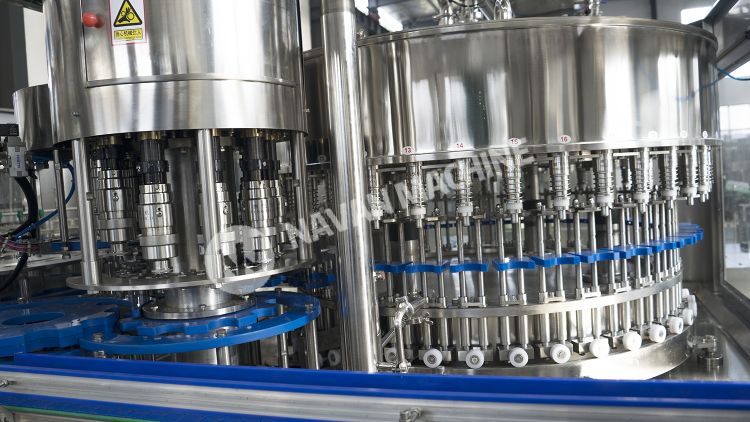

Navan filling machine2

Navan filling machine (2)

Model	CGF32-32-10	CGF40-40-10/12	CGF50-50-12/15	CGF60-60-15
Application	Spring water / mineral water / pure water / non-gas wine drink and so on
No. of Rinsing/Filling/Capping	32-32-10	40-40-10/12	50-50-12/15	60-60-15
Production Capacity(500ml)	16000-17000BPH	19000-20000BPH	23000-24000BPH	34000~36000BPH
Filling precision	≤±5mm(liquid level)
User Ambient Conditions	Temperature:10~40℃; Humidity: No dew
Suitable bottle specification	Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm
Bottle type	Plastic bottle / PET Bottle
Bottle neck/Cap Style	Plastic Screw Cap φ=20-50mm
Machine material	Food stage SS304 OR SS316
Air source pressure	0.5~0.6Mpa
Filling way/principle	Gravity filling method
Control system	SIMENS PLC+ TOUCH SCREEN
Features	No Bottle No Filling No Bottle No Capping
Main Power	5.5kw	7.5kw	11.0kw	15.0kw
Power Supply	Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm)	380028002600	460028002600	545033002600	650045002600
Weight (kg)	6500	8500	9800	12800
All machines could be customized , we could design design and produce machines according to your request.
