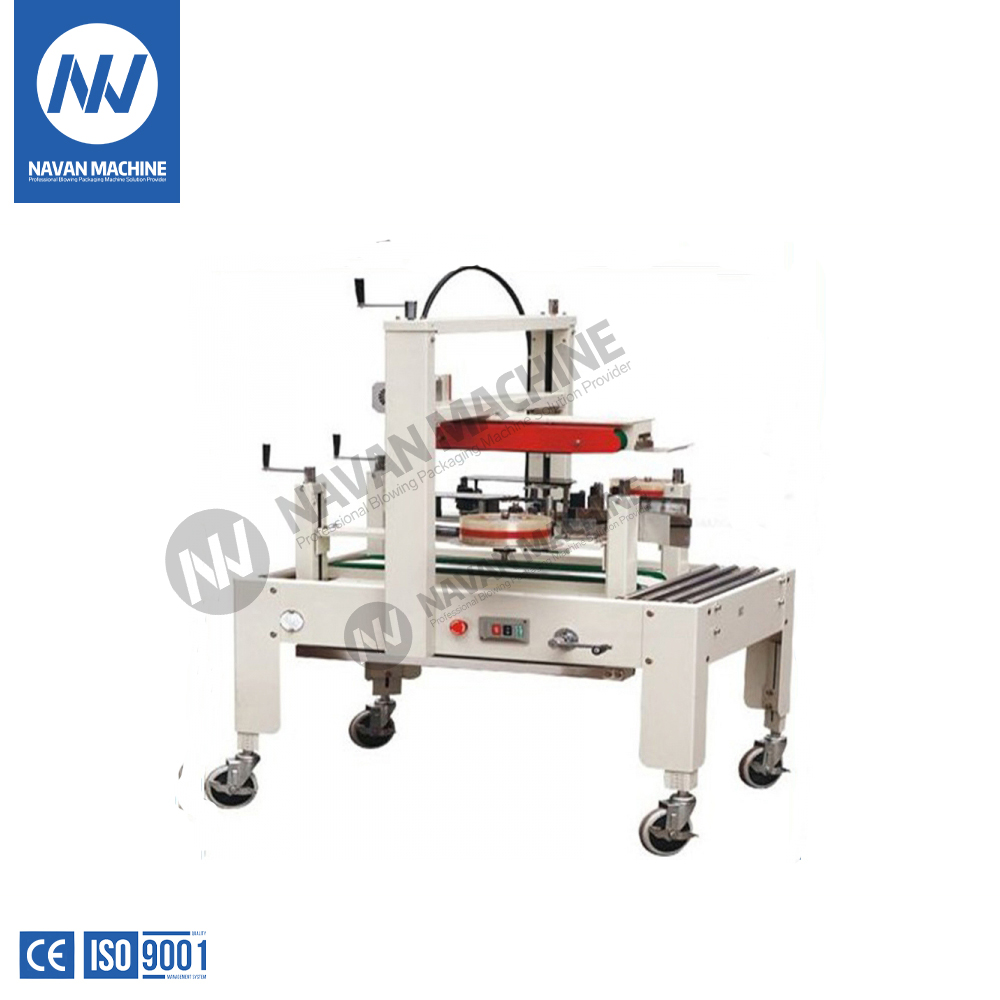

NV-FX25 Semi-automatic Carton Sealer Carton Packing Machine

Brief Introduction

As one of the effective solutions to improve the secondary packing work, NV -FX25 Semi-automatic Carton Sealer is a carton product sealing equipment with primary automation degree designed and manufactured by adhesive tape. It can be used for cartons of different sizes.

Main Features

1) It is light and durable with simple operation and without noise.
2) With the upper and lower belt driving, the carton is conveyed stably with good case sealing effect (As423).
3) With belt driving at both sides, the carton is conveyed stably with good case sealing effect (As523).
4) It is suitable for sealing of cartons with openings on the sides, such as beverage, floor tile, etc. (As423)
5) It is suitable for sealing of small cartons with openings at the upside and downside (As523).
6) The parts for products of standard specifications are available at any time.

1) Packaging Product ：Cardboard Carton (or other special containers)
2) Max Packaging Dimension: W 500 × H 500 mm

3) Min Packaging Dimension: W 150 × H 70 mm

Machine Specification

1) Machine Dimension: 1100×900×1320 mm

2) Packaging Speed：20 Meters/Minute
3) Voltage/Power: 110V or 220V / 0.18 KVA
4) Width of Adhesive Tape: 36mm, 48mm, 50mm, 60mm

5) Packaging Form：Carton Side Sealing (adhesive by Adhesive Tape)

6) Packaging Material : Cardboard Carton Sheet
