Brief Introduction
As one of the effective solutions to improve the secondary packing work,

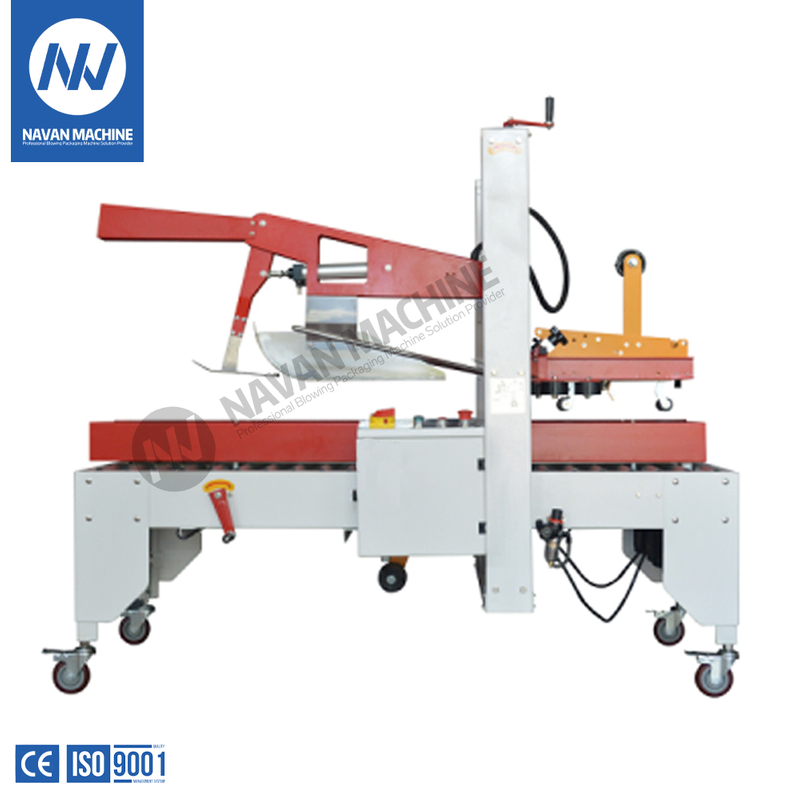

NV -FX30 Automatic Flap Folding Carton Sealer is a carton product sealing equipment with primary automation degree designed and manufactured by adhesive tape. It can be used for cartons of different sizes.
Main Features
1) It is made of imported parts, electrical parts and pneumatic components by adopting internationally advanced technology.
2) Width and height are adjusted manually according to carton specifications.
3) Automatic carton upper flap folding, automatic tape attaching at the upside and downside, economic, stable and fast.
4) It is equipped with blade protective device to avoid accidental injury during operation.
5) The machine can be used singly or work with the automatic packaging flow line. It is the best choice for enterprises to save costs, enhance production efficiency and realize standard packaging.
Product Specification
1) Packaging Product ：Cardboard Carton (or other special containers)
2) Max Packaging Dimension: L 600 × W 500 × H 500 mm
3) Min Packaging Dimension: L 150 ×W 150 × H 150 mm
Machine Specification
1) Machine Dimension: 1770×850×1520 mm (Exclude the front and rear roller frame)
2) Packaging Speed：0 - 20 Meters/Minute
3) Voltage/Power: 220V or 380V / 400 W
4) Width of Adhesive Tape: 48mm, 60mm, 75mm, 60mm
5) Packaging Form：Carton Top and Bottom Sealing (adhesive by Adhesive Tape)
6) Packaging Material : Cardboard Carton Sheet
