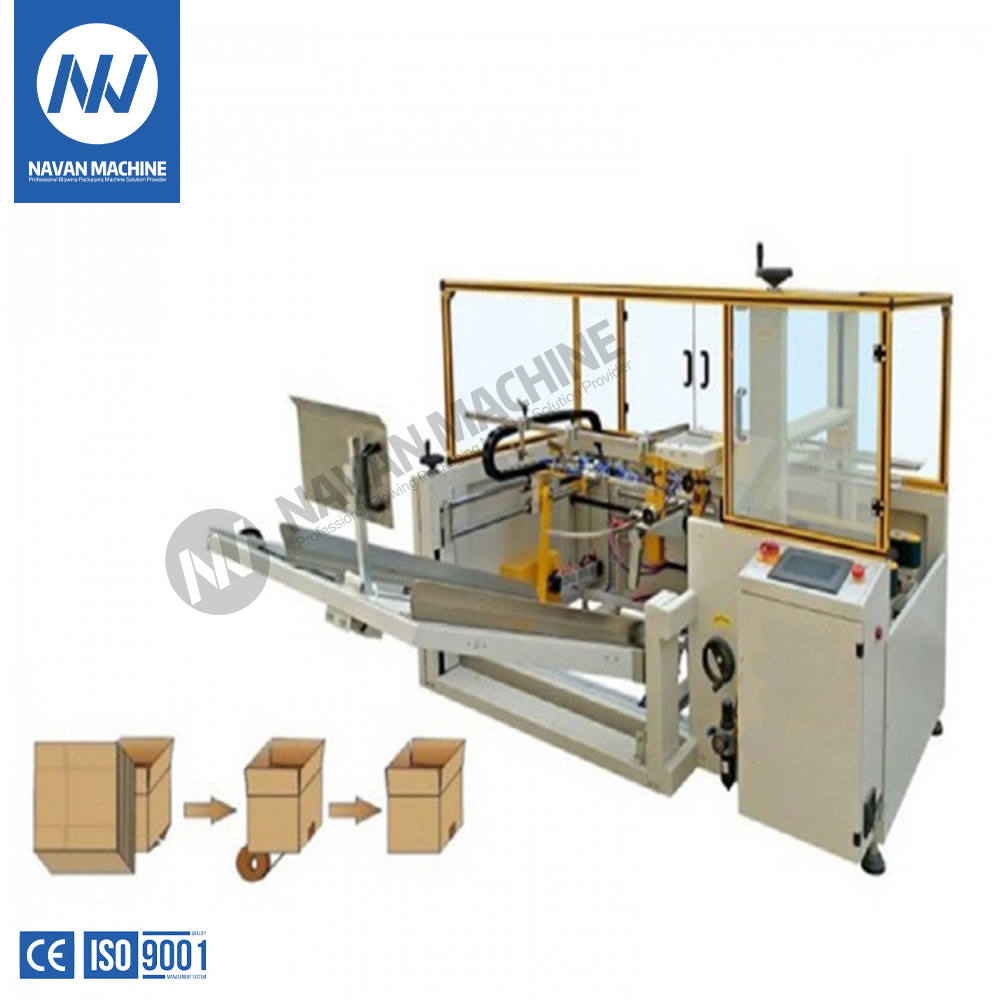

NV-KX12 Automatic Vertical Carton/Case Erecting Solution Packing Machine
Automatic Vertical Carton/Case Erecting Solution
Widely used in the industries such as beverage,food, medicine,electrical,etc
Advanced international technology and famous brand components
Automatic Carton Erecting and Bottom Sealing for cartons with various sizes.
Packing Speed: 10 Cartons / Minute - 12 Cartons / Minute
  • NV-KX12

  • NAVAN MACHINE

Availability:

NV-KX12 立式纸箱开箱机

Brief Introduction
As high efficient packaging equipment, NV-KX12 Vertical Carton/Box Erecting Machine is designed and manufactured with high automatic operation based on the Ahesive Taping solution. It can pack your products within customized carton sheet. The products after packaging are safely protected and beautiful in appearance.

Main Features
1) Convenient operation: It is suitable for case erecting and bottom sealing of cartons of various sizes. Just carry out adjustment manually when carton specifications are to be changed. Its operation is simple and convenient.
2) High automation: Automatic case erecting, automatic bottom flap folding, automatic carton bottom sealing. The machine adopts PLC + man-machine control. With convenient operation, simple maintenance and stable performance, it is an indispensable flow line machine for automatic scale production.
3) Safety performance: (1) The machine parts are precise and durable, with strict structure design, no vibration during running, and stable and reliable running. (2) It is equipped with blade protective device to avoid accidental injury during operation. (3) It is additionally mounted with the protection cover to make production safer and packaging more efficient.
4) Unique design:
  (a) No stopping during bottom folding. Bottom folding and bottom sealing can be completed during conveying.
  (b) The whole process of case sucking, forming, bottom folding and bottom sealing can be completed in 3 seconds.
  (c) High-speed, stable, convenient and economic.


Product Specification
1) Packaging Product :Bottles, Cans, etc (or other special containers)
2) Max Packaging Carton Dimension: L 200-450 × W 150-400 × H 100-340 mm

Machine Specification
1) Machine Dimension: 2000×1900×1450 mm
2) Packaging Speed:10 Cartons/Minute - 12 Cartons / Minute
3) Voltage/Power: 220V /200W
4) Carton Temporary Storage Capacity: 1000 pieces (1000mm)
5) Working Air Pressure: 6 kg/m2
6) Air Consumption: 450 NL /minute
7) Packaging Form:Carton Erecting and Bottom Sealing (adhesive by Adhesive Tape)
8) Packaging Material : Cardboard Carton Sheet


Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
