NV-KX20 Horizontal Carton Erecting Packing Machine Automatic Carton/Case Erecting Solution
Automatic Carton/Case Erecting Solution
Widely used in the industries such as beverage,food, medicine,electrical,etc
Advanced international technology and famous brand components
Automatic Carton Erecting and Bottom Sealing for cartons with various sizes.
Packing Speed: 20 Cartons / Minute - 50 Cartons / Minute
  • NV-KX20

  • NAVAN MACHINE

Availability:

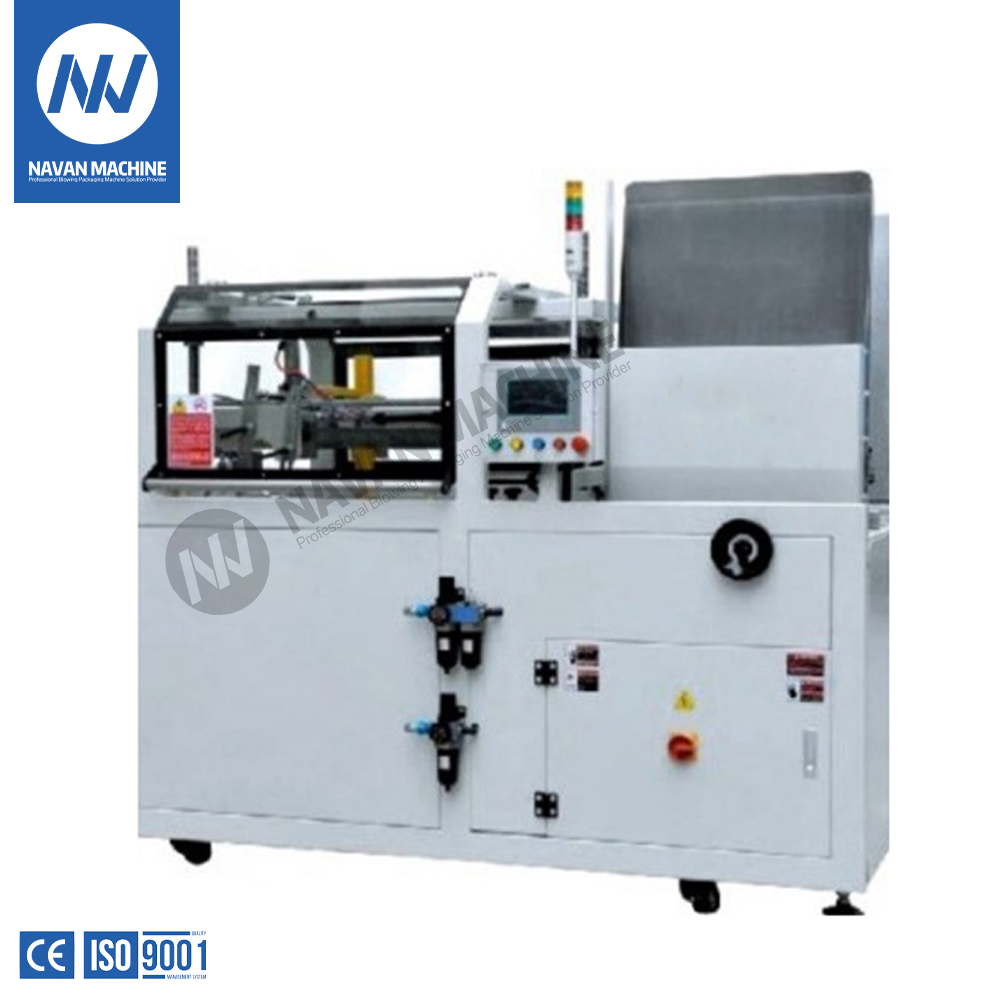

NV-KX20 卧式纸箱开箱机

Application 7(1)


Brief Introduction
NV-KX20 Horizontal Carton/Box Erecting Machine is designed and manufactured with high automatic operation based on the Adhesive Taping solution. It can pack your products within customized carton sheet. The products after packaging are safely protected and beautiful in appearance.


Main Features
1) It is made of imported parts, electrical parts and pneumatic components by adopting internationally advanced technology.
2) We introduce and absorb advanced technology in case erectors from our peers in the industry in Japan, Germany, Italy, etc.
3) Horizontal carton storage is adopted, so that empty cartons can be replenished at any time without stopping the machine, time is saved and efficiency is improved.

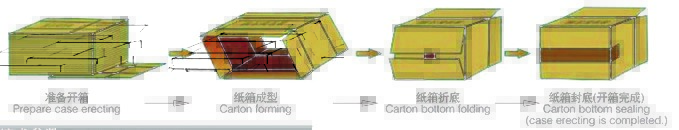

4) The structure is designed to complete the procedures such as case sucking, case erecting, forming, bottom folding, bottom sealing, etc. in one step.
5) The machine adopts cam continuous system with accurate mechanical running.
6) Stepless speed control is adopted for forming and case sealing to freely adjust the speed and save time.
7) It is suitable for automatic case erecting and bottom sealing of cartons of various sizes. Just carry out adjustment manually when carton specifications are to be changed, which only takes 3-5 minutes.
8) Automatic alarm for replenishing cartons.
9) The machine parts are precise and durable, with strict structure design, no vibration during running, and stable and reliable running.
10) Automatic stopping and air break when the door is opened. High safety performance.


Product Specification
1) Packaging Product :Bottles, Cans, etc (or other special containers)
2) Max Packaging Carton Dimension: L 240-510 × W 190-400 × H 120-400 mm

Machine Specification
1) Machine Dimension: 2372×1210×1820 mm
2) Packaging Speed:20 Cartons/Minute - 50 Cartons / Minute
3) Voltage/Power: 380V /746W
4) Carton Temporary Storage Capacity: 80 pieces (800mm)
5) Working Air Pressure: 5 kg/m2
6) Air Consumption: 300 NL /minute
7) Packaging Form:Carton Erecting and Side Sealing (adhesive by Adhesive Tape)
8) Packaging Material : Cardboard Carton Sheet
