Products Details  |

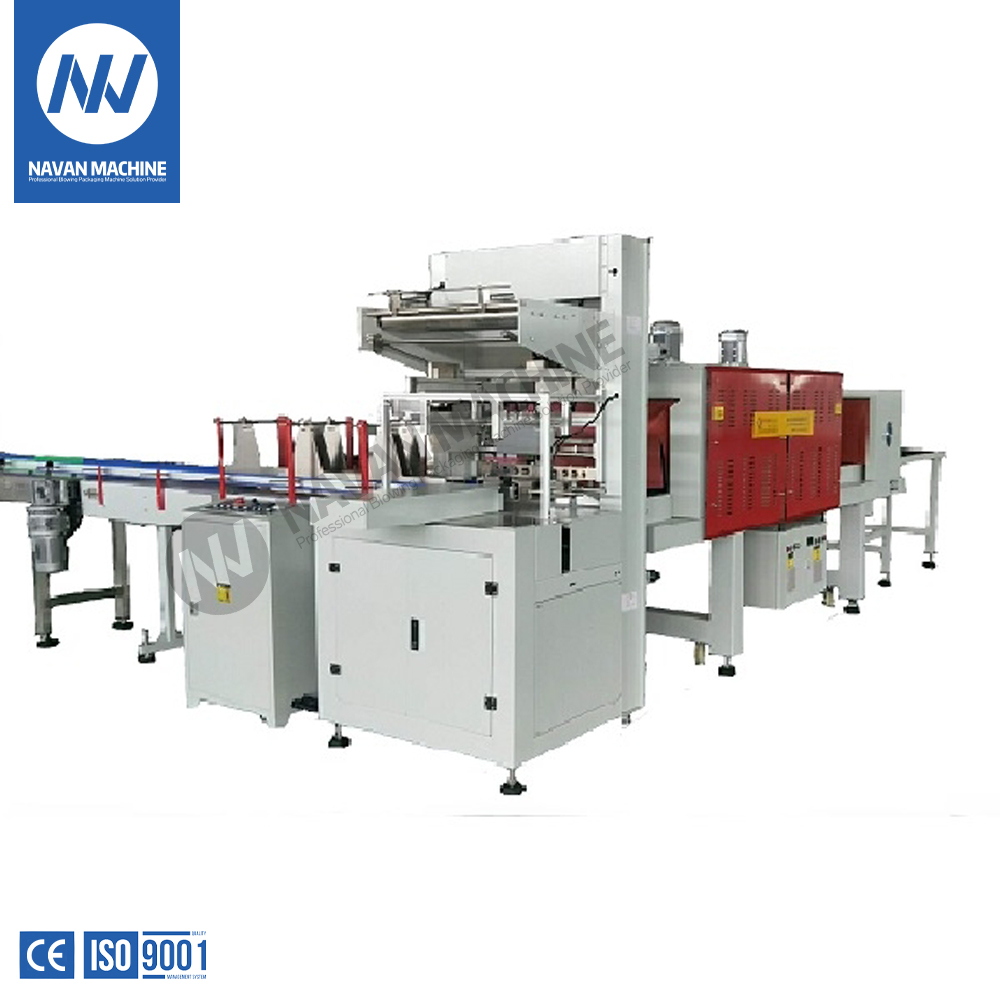

Based on the classical heat shrinkable packaging film machine, NV-MB6535 Upper and Lower Heat Shrink Film Sealing & Cutting Machine is designed and manufactured with high efficiency and continuous operation.
By heating shrinkage and cooling, this machine can easily arrange, set up a single product (such as PET bottle), set up a group, push the bottle and wrap the film, and finally form a collection package.
The appearance of the products after packaging are firm, regular and beautiful.
And this machine is very cost efficient.
NV-MB6535
NAVAN MACHINE
Brief Introduction
Based on the classical heat shrinkable packaging film machine, NV-MB6535 Upper and Lower Heat Shrink Film Sealing & Cutting Machine is designed and manufactured with high efficiency and continuous operation.
By heating shrinkage and cooling, this machine can easily arrange, set up a single product (such as PET bottle), set up a group, push the bottle and wrap the film, and finally form a collection package.
The appearance of the products after packaging are firm, regular and beautiful.
And this machine is very cost efficient.
1) It is specially designed for packaging the combined/cartoned bottle water, beer, beverage and dairy products.
3) It is clear and secure seal by using advanced constant temperature membrane heat binding technology in the world.
4) The quick seal cooling structure guarantees the seal has a higher strength even if under high speed production condition.
5) Adopt PLC automatic program circulation control ensures it has stable and reliable performance.
6) The original imported guide bar cylinder guarantee correct operation and durable.
7) Controlled by the inductive switch, the membrane transfer system can reliably adjust and control the membrane transfer length with less loss.8) Controlled by frequency changing devices, all the transfer syestem has a stable and smooth transfer speed.
9) It has an equal heat distribution with nice and secure shrinkage effect because there are unique thermal channel with 2 sets of centrifugal thermal air circulation system.
10) It is energy saving, quick temperature and good insulating property because of the 3 layers of heat insulation treatment.
11) Due to the enhanced cooling shaping channel, it can quickly turn the packaging membrane into high strength status which is conveniently stored and transported.
| Product Model | NV-MB6535 | Packing Speed | 8-12 Packs / Min |
| Machine Size (mm) | 7000×3200×2100 | Max Packing Size (mm) | 440×300×330 |
| Shrink Tunnel Size (mm) | 1800×650×450 | Conveyor Belt Width (mm) | 304 |
| Voltage/Power | 3 Phase 5 Line 380V/50Hz, 19KW | Air Pressure and Consumption | 0.6-0.8 Mpa 0.5 m 3/minute |
| Packaging Material PE POF Shrink Film | Width: ≦600 mm Thick: 0.06-0.12 mm | Sealing and Cutting Temperature Shrinking Temperature | 190℃~230℃ 200℃~280℃ |
| Machine Weight (KG) | 1200 | Deliver Packing Size (mm) | 1200×1200×2400 5500×1200×2100 |
Brief Introduction
Based on the classical heat shrinkable packaging film machine, NV-MB6535 Upper and Lower Heat Shrink Film Sealing & Cutting Machine is designed and manufactured with high efficiency and continuous operation.
By heating shrinkage and cooling, this machine can easily arrange, set up a single product (such as PET bottle), set up a group, push the bottle and wrap the film, and finally form a collection package.
The appearance of the products after packaging are firm, regular and beautiful.
And this machine is very cost efficient.
1) It is specially designed for packaging the combined/cartoned bottle water, beer, beverage and dairy products.
3) It is clear and secure seal by using advanced constant temperature membrane heat binding technology in the world.
4) The quick seal cooling structure guarantees the seal has a higher strength even if under high speed production condition.
5) Adopt PLC automatic program circulation control ensures it has stable and reliable performance.
6) The original imported guide bar cylinder guarantee correct operation and durable.
7) Controlled by the inductive switch, the membrane transfer system can reliably adjust and control the membrane transfer length with less loss.8) Controlled by frequency changing devices, all the transfer syestem has a stable and smooth transfer speed.
9) It has an equal heat distribution with nice and secure shrinkage effect because there are unique thermal channel with 2 sets of centrifugal thermal air circulation system.
10) It is energy saving, quick temperature and good insulating property because of the 3 layers of heat insulation treatment.
11) Due to the enhanced cooling shaping channel, it can quickly turn the packaging membrane into high strength status which is conveniently stored and transported.
| Product Model | NV-MB6535 | Packing Speed | 8-12 Packs / Min |
| Machine Size (mm) | 7000×3200×2100 | Max Packing Size (mm) | 440×300×330 |
| Shrink Tunnel Size (mm) | 1800×650×450 | Conveyor Belt Width (mm) | 304 |
| Voltage/Power | 3 Phase 5 Line 380V/50Hz, 19KW | Air Pressure and Consumption | 0.6-0.8 Mpa 0.5 m 3/minute |
| Packaging Material PE POF Shrink Film | Width: ≦600 mm Thick: 0.06-0.12 mm | Sealing and Cutting Temperature Shrinking Temperature | 190℃~230℃ 200℃~280℃ |
| Machine Weight (KG) | 1200 | Deliver Packing Size (mm) | 1200×1200×2400 5500×1200×2100 |
