Semi-automatic Shrink Film Overlap Wrapping Machine
Designed for Bottled Water, Beer, Beverage, Dairy, etc
Suitable for Low or Medium Capacity Production
Packing Speed: 0 Meter/ Minute - 6 Meters/Minute
  • NV-MB6540Z

  • NAVAN MACHINE

Availability:

NV-MB6540Z 半自动热收缩包装机-Application (1)

Brief Introduction

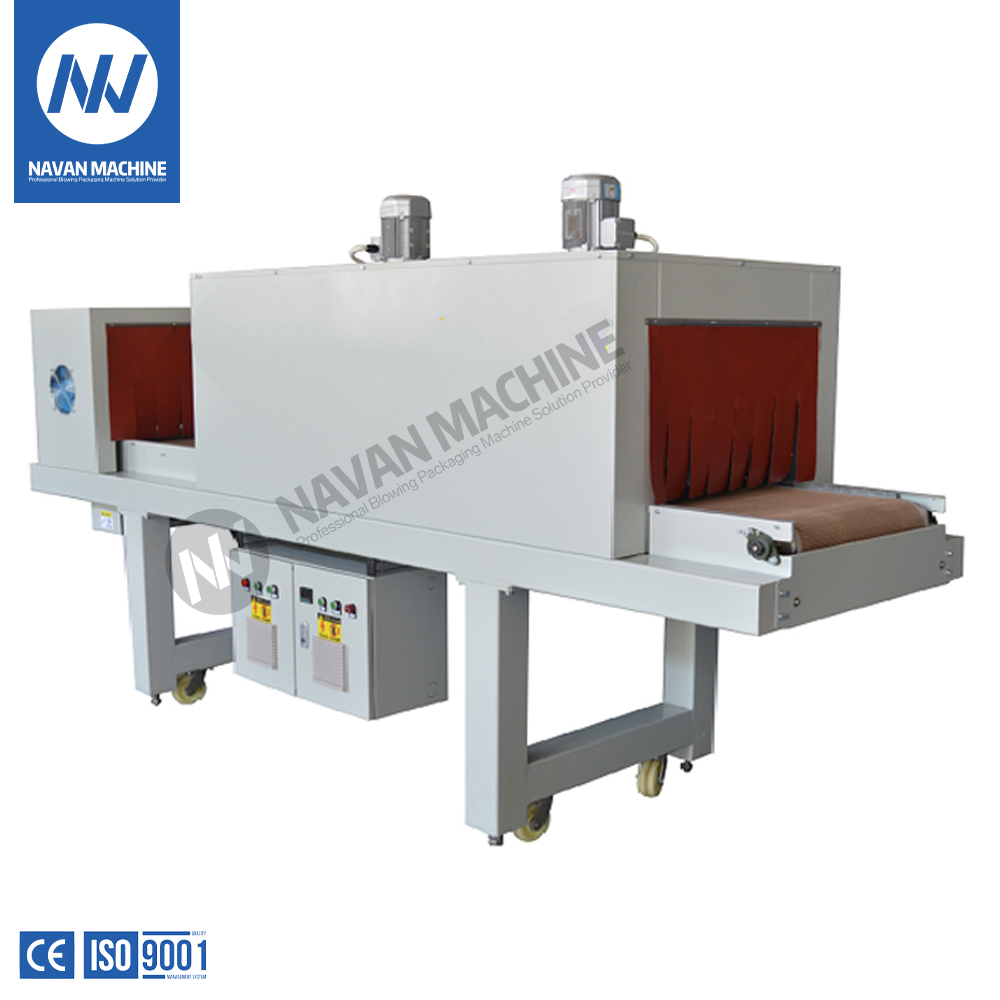

NV-MB6540Z Semi-Automatic Heat Shrink Film Wrapping Machine

Semi-automatic Shrink Film Overlap Wrapping Machine
Designed for Bottled Water, Beer, Beverage, Dairy, etc
Suitable for Low or Medium Capacity Production
Packing Speed: 0 Meter/ Minute - 6 Meters/Minute


Main Features:

1) It is specially designed for the combined and individual packing of bottle water,beer,beverage and dairy products.
2) It is flexible and easy operation and it is suitable for medium and small beverage output.

3) It has an equal heat distribution with nice shrinkage effect because of hte unique thermal shrinkage chaneel with 2 sets of centrifugal thermal aire circulation system.

4) It is good insulation property, quick temperature rise and energy saving due to the 3 layers heats insulation treatment.

5) The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength that is conveniently stored and transported.


Basic Technical Parameters

Machine Dimension
L4500*W950*H1600mm
Dimension of Shrinking Tunnel
L2500*W650*H450mm
Dimension of Cooling Tunnel
L600*W650*H460mm
Supply/Power Consumption
3 Phase 5 Line 380V 18KW
Conveyor Speed
1-16m/min
Total Weight
650KG


Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
