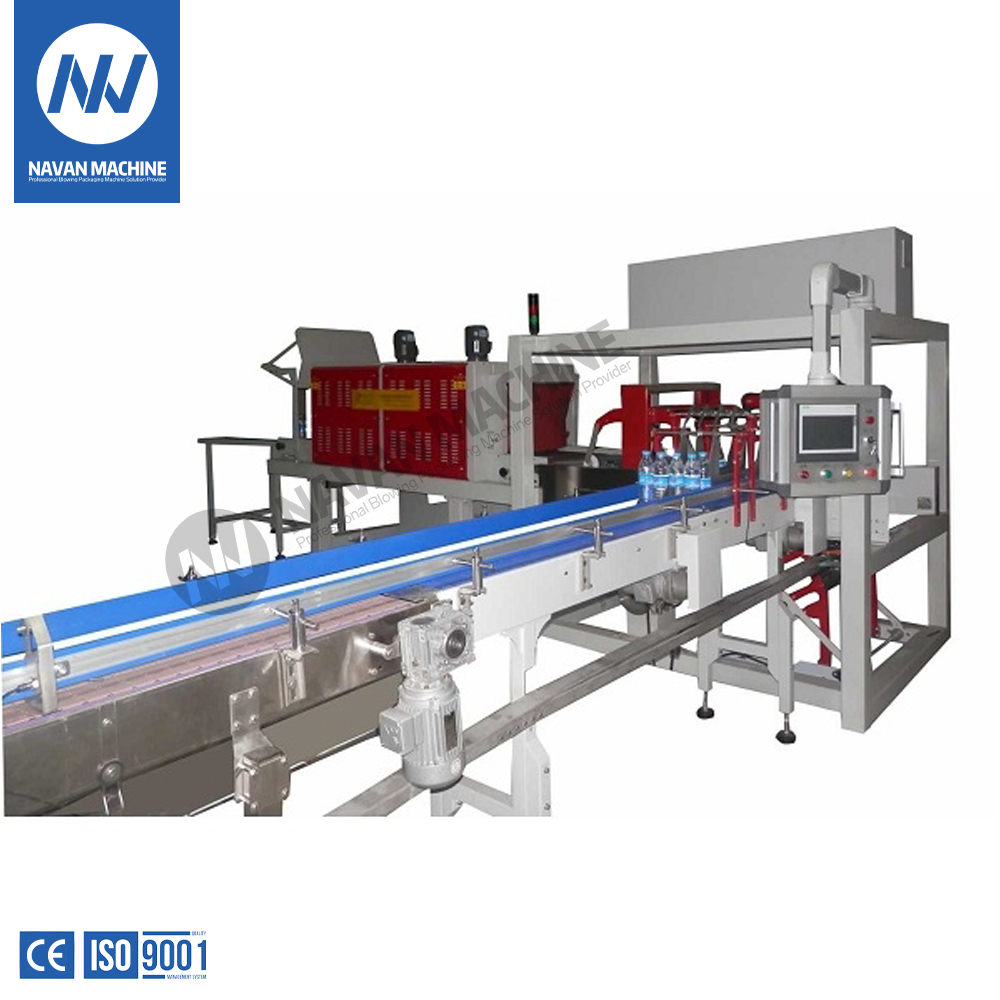

Automatic One-piece Heat Film Shrink Wrapper Packing Machine
Designed for Bottled Drinking Water, Beverage, Juice, dairy products, etc.
Suitable for Medium Capacity Production Line
Packing Speed: 15 Packs/ Minute
  • NV-MBS15

  • NAVAN MACHINE

Availability:

NV-MBS15 热收缩膜包装机

Application(2)

Brief Introduction

Based on the classical heat shrinkable packaging film machine, NV-MB6535 Upper and Lower Heat Shrink Film Sealing & Cutting Machine is designed and manufactured with high efficiency and continuous operation.

By heating shrinkage and cooling, this machine can easily arrange, set up a single product (such as PET bottle), set up a group, push the bottle and wrap the film, and finally form a collection package.

The appearance of the products after packaging are firm, regular and beautiful.

And this machine is very cost efficient.


Main Features
1) It is provided with such automatic functions as automatic bottle feeding, automatic bottle distributing, automatic bottle placing and pressure releasing, in- place inspection, case feeding, case supporting, case discharging, etc.
2) It adopts man-machine interface with friendly operation, featured by fast communication capability, powerful diagnosis function and high degree of automation..
3) It adopts side bottle feeding, takes small floor space, simplifies the conveying system before the case packer and reduces investment for the whole line equipment.
4)  It adopts linear guide rail translation, with more advanced and reasonable structure, easier and more stable action and less power consumption.

5) Conforming to national safety standards, it is provided with various protection functions. Alarms will be given timely in case of malfunctions and the machine will be stopped for protection.


Product Specification
1) Packaging Product: 380ml/500ml/1000ml/2000ml PET Bottled Water and Tin Canned Beverage  (or other special containers)
2) Packaging Specification: 2×3, 3×4, 4×6 (or other combinations)
3) Max Package Dimension: 460×280×350 mm
4) With or without cardboard supporting tray

Machine Specification
1) Machine Dimension: 5000×3688×2100 mm
2) Shrinkage Tunnel Dimension: 1800×650×450 mm
3) Packaging Speed:60 Packs/Minute - 70 Packs/Minute
4) Conveying Belt Width: 610 mm
5) Voltage/Power: 380V /19KW
6) Working Air Pressure: 0.6-0.8 Mpa
7) Air Consumption: 0.3 m3/minute
8) Packaging Form:One piece heat shrink film wrapping

9) Packaging Material : LDP
