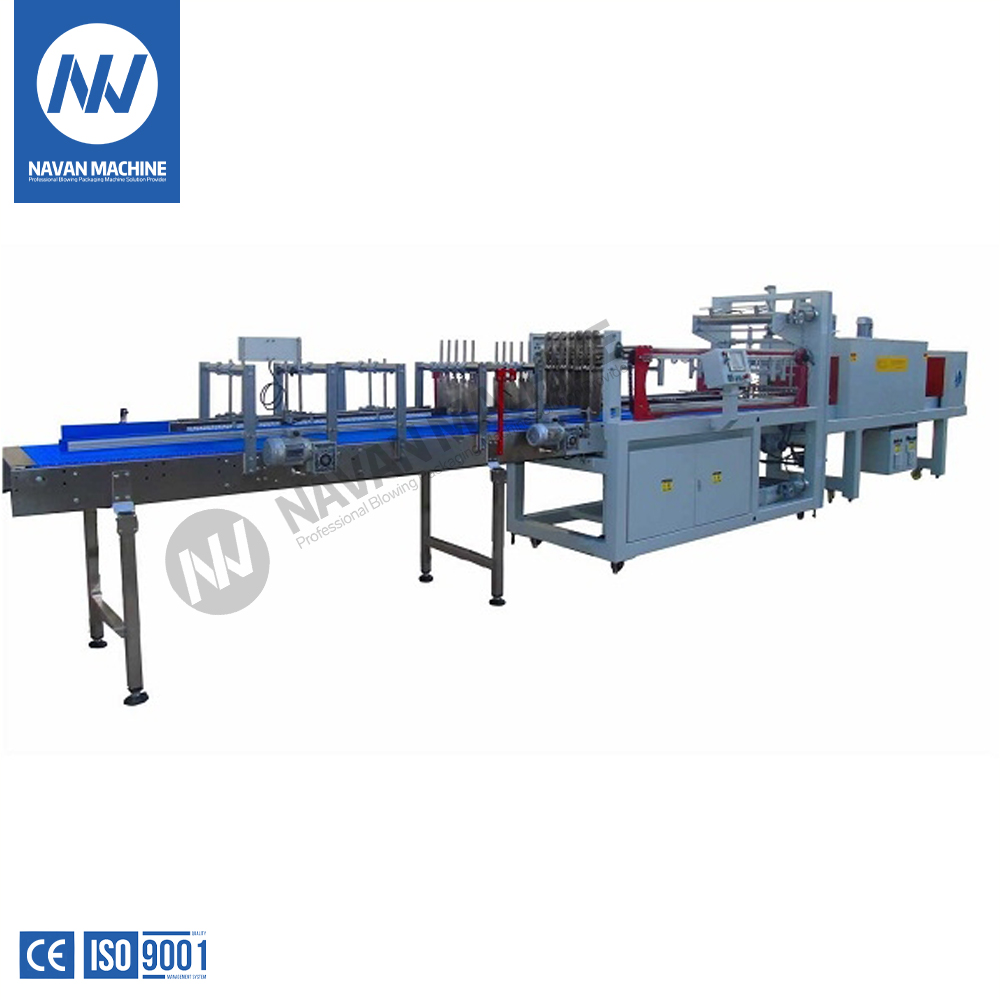

NV-MBS18 Automatic Upper and Lower Film Sealing&Cutting Heat Shrink Wrapper Packing Machine
Automatic Upper and Lower Film Sealing&Cutting Heat Shrink Packaging
Designed for Bottled drinking water, beverage, juice, dairy products, etc.
Suitable for Medium Capacity Production Line
Packing Speed: 18 Packs/ Minute
  • NV-MBS18

  • NAVAN MACHINE

Availability:





NV-MBS18 上下膜封切热收缩包装机


Application(2)

Brief Introduction

NV-MBS18 Automatic Upper and Lower Film Sealing&Cutting Heat Shrink Wrapper Packing Machine

Automatic Upper and Lower Film Sealing&Cutting Heat Shrink Packaging
Designed for Bottled drinking water, beverage, juice, dairy products, etc.
Suitable for Medium Capacity Production Line
Packing Speed: 18 Packs/ Minute


Main Features
1)  Specially designed and manufactued for the middle speed packing requirements of drinks (pure water,beverage,fruit juice and milk product,etc).
2)  During the product forward conveying process,it can automatically group into package,so as to save time and enhance packing efficiency.
3)  Adopt the Programmable Logic Controller(PLC),which can carry out the automatically work flow.
4) Use the isothermal sealing cutter,its surface spray TEFLON COAT,the seal is even and secure.
5)  Touch-screen operating panel with user-friendly interface and absolutely an easy-to-operate machine.

6)  It can suit for different bottleneck and bottle combination.



Product Specification
1) Packaging Product :380ml/500ml/1000ml/2000ml PET Bottled Water and Tin Canned Beverage  (or other special containers)
2) Packaging Specification:2×3, 3×4, 4×6 (or other combinations)
3) Max Package Dimension: 440×300×330 mm
4) With or without cardboard supporting tray

Machine Specification
1) Machine Dimension: 12240×1100×2100 mm
2) Shrinkage Tunnel Dimension: 1800×650×450 mm
3) Packaging Speed:18 Packs/Minute
4) Conveying Belt Width: 550 mm
5) Voltage/Power: 380V /30KW
6) Working Air Pressure: 0.6-0.8 Mpa
7) Air Consumption: 0.6 m3/minute
8) Packaging Form:Upper and Lower Heat Shrink Film Sealing&Cutting Packaging (Double Row)

9) Packaging Material : LDP



Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
