NV-MBS25 Automatic Upper And Lower Film Sealing&Cutting Heat Shrink Wrapper Packing Machine
Automatic Upper and Lower Film Sealing&Cutting Heat Shrink Packaging
Designed for Bottled drinking water, beverage, juice, dairy. etc
Suitable for Medium Capacity Production Line
Packing Speed: 20 Packs/Minute
  • NV-MBS25

  • NAVAN MACHINE

Availability:

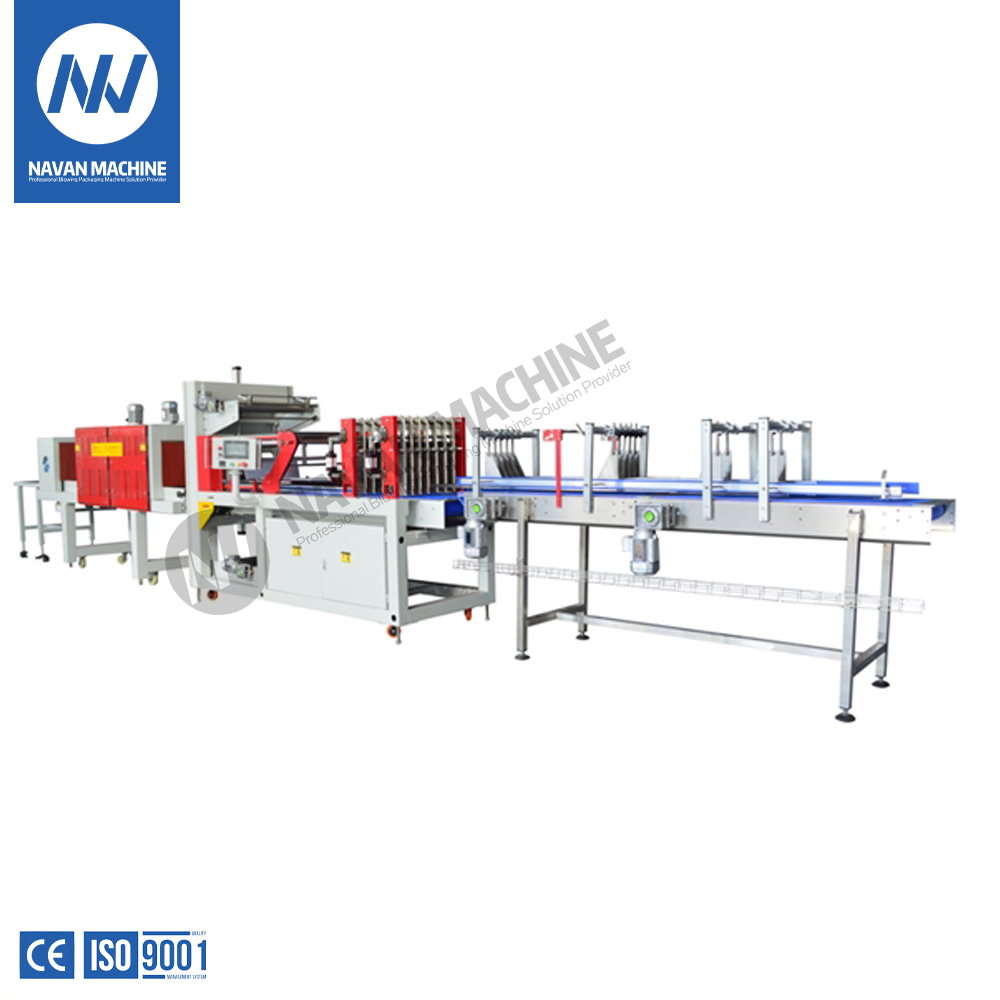

NV-MBS25-1 上下膜封切热收缩包装机

Application(2)

Brief Introduction

As a newly updated packaging equipment, NV-MBS25 Upper and Lower Heat Shrink Film  Sealing & Cutting Machine is designed and manufactured with high efficiency and continuous operation based on the characteristics of heat shrinkable packaging film. It can arrange, set up a single product (such as PET bottle), set up a group, push the bottle and wrap the film, and finally form a collection package by heating shrinkage and cooling. The products after packaging are firm, regular and beautiful in appearance and cost saving.



Main Features
1)  Specially designed and manufactued for the middle speed packing requirements of drinks (pure water,beverage,fruit juice and milk product,etc).
2)  During the product forward conveying process,it can automatically group into package,so as to save time and enhance packing efficiency.
3)  Adopt the Programmable Logic Controller(PLC),which can carry out the automatically work flow.
4)  Use the isothermal sealing cutter,its surface spray TEFLON COAT,the seal is even and secure.
5)  Touch-screen operating panel with user-friendly interface and absolutely an easy-to-operate machine.
6)  It can suit for different bottleneck and bottle combination.


Basic Technical Parameters

Product Model
NV-MBS25
Packing Speed
15-20 Packs / Min
Machine Size (mm)
12240×1100×2150
Max Packing Size
(mm)
440×300×330
Shrink Tunnel Size
(mm)
1800×650×450
Conveyor Belt Width
(mm)
347
Voltage/Power
3 Phase 5 Line
380V/50Hz, 19KW
Air Pressure and
Consumption
0.6-0.8 Mpa
0.5 m 3/minute
Packaging Material
PE POF Shrink Film
Width: ≦600 mm
Thick: 0.06-0.12 mm
Sealing Cutting Temperature
Shrinking Temperature
190℃~230℃
200℃~280℃
Machine Weight (KG)
2400
Deliver Packing Size (mm)
3200×1360×2400
3550×1150×1750
