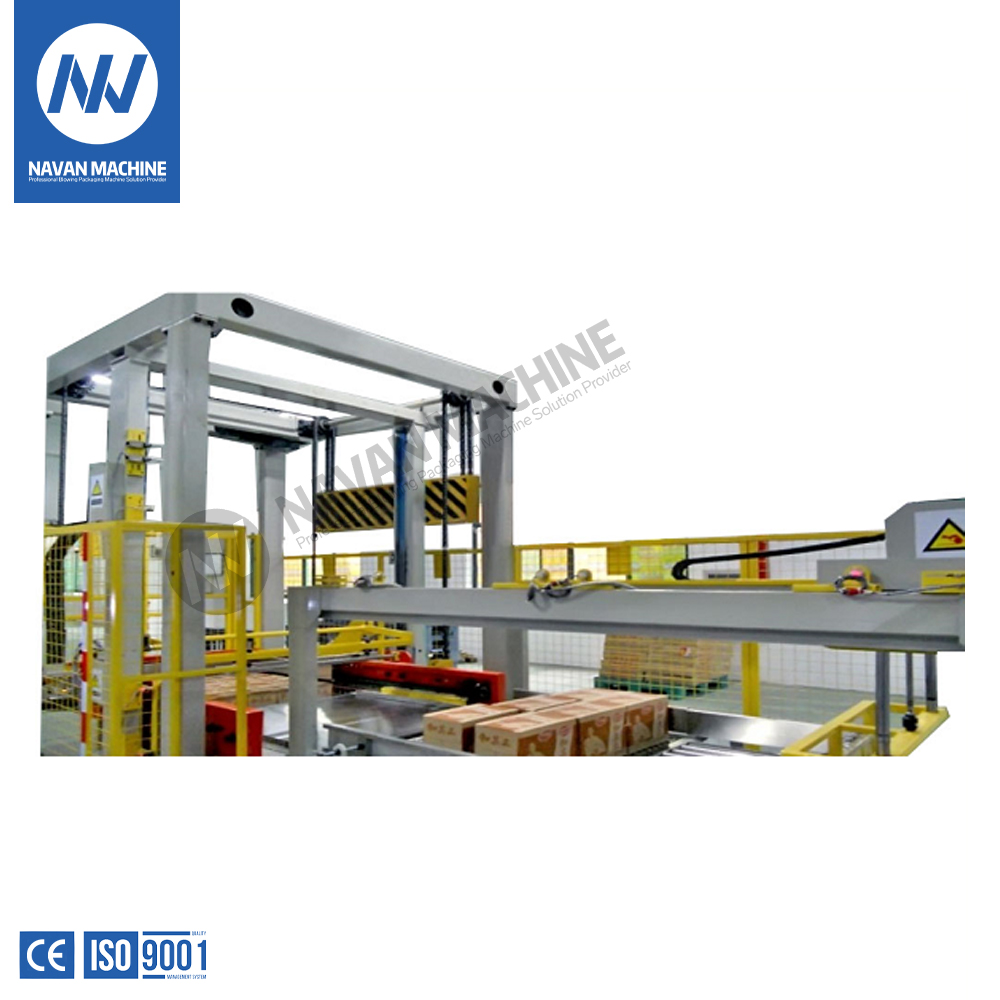

NV-MD30 Frame Type Palletizer
Frame Type Palletizing Solution
Widely used  for corrugated cartons, plastic cartons, barrel-shaped and bag-shaped containers
PLC+Touch-screen controlling system
High speed, more stable and space saving
Production Capacity : 30 Cartons / Minute
  • NV-MD30

  • NAVAN MACHINE

Availability:

NV-MD 30 框架式码垛机

Application-3


Brief Introduction
As an important part of the solution of unmanned packaging in the secondary packaging production line, NV-MD 30 Frame Type Palletizer is a medium-sized production palletizer designed and manufactured with advanced international technology. It has excellent characteristics such as excellent safety performance, fast moving speed, high positioning accuracy and durability of key components.

Main Features

1) The palletizer is used to palletize the cartons that have been loaded into vessels onto pallets (wood, plastic) according to certain arrangements for automatic piling.

2) The cartons can be piled into multiple layers and pushed out, and can be conveniently conveyed by the forklift truck to the warehouse for storage.

3) The equipment adopts PLC + touch screen control, realizing intelligent operation and management.

4) It is convenient and easy to operate. It can greatly reduce labor force and lower labor intensity.

5) It is designed with the concepts of high speed, stability, and space saving.

6) It adopts split type plate release, which is faster and saves more space.

7) With multiple functions in one machine, it realizes adjustment rapidly and frees you from the worry of replacing the piled products.

8) Application range: corrugated cases, plastic cases, barrel-shaped packaging materials, and bag-shaped packaging materials.


Product Specification
1) Packaging Product :Cartons, plastic boxes, bottled and bagged products.

Machine Specification
1) Machine Dimension: 7300×5300×3200 mm
2) Working Capacity:30 Cartons / Mintue
3) Electrical Voltage/Power:380V / 10 KW
4) Air Consumption: 110L/Minute,5-6 Kg / cm2
5) Max Palletizing Height:  1800 mm
6) Max Load of Each Layer : 250 Kg
7) Max Load of Each Stack: 1500 Kg
8) Packaging Form:Cases and Cartons palletizing
9) Packaging Material : Cardboard Carton or Plastic Cases
