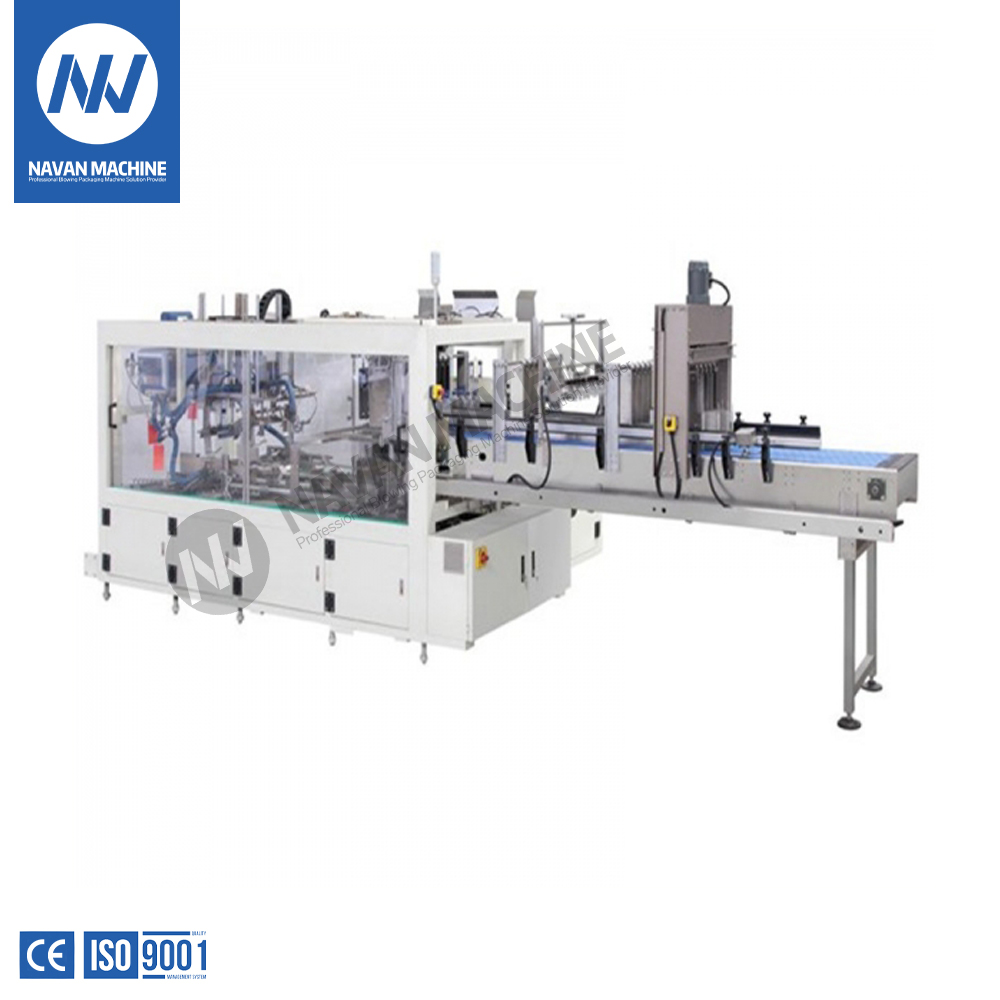

NV-ZX25 One-piece Carton Wrapping Machine Carton Packing Machine
One-piece Carton Wrapping Solution
Widely used in the industries such as bottled/canned water,beverage,beer,etc
Advanced cardboad one-time forming technology
Adopts well-known hot-melt adhesive equipment
Packing Speed: 25 Cartons / Minute
  • NV-ZX25

  • NAVAN MACHINE

Availability:

NV-ZX25 一片式纸箱裹包机

Brief Introduction
A high efficient packaging equipment, NV-ZX25 One-piece Carton Wrapping Machine is designed and manufactured with high automatic operation based on the Hot-melt Adhesive Glue. It can pack your products within customized carton sheet. The products after packaging are safely protected and beautiful in appearance.

Main Features
1) This machine is suitable for PET, PP bottle, glass bottle and Tetra Pak. It is easy to change the bottle type and is suitable for various combination packing methods.
2) The bottle feeding machine is designed with plastic steel mesh conveyor. The arrangement is neat and can be divided into six rows, five rows or four rows.
3) Adopt the principle of machine arm, make the paper and product reach the position point, and make the product lightly fall on the paper, make the structure of the machine more reasonable, lighter and more stable.
4) Compared with the traditional models, the model is reasonable and saves space.

5) The imported hot melt adhesive equipment makes the operation more convenient and simple, and the equipment is durable. The products packaged by it are beautiful in appearance, convenient in storage and transportation.


Product Specification

1) Packaging Product :380ml/500ml PET Bottled Water and Tin Canned Beverage  (or other special containers)
2) Max Packaging Carton Dimension: 550<L+W+H<1000 mm

Machine Specification
1) Machine Dimension: 5130×2600×1800 mm
2) Packaging Speed:20 Packs/Minute
3) Voltage/Power: 380V /7KW
4) Hot Melt Adesive Solidify Time: 1.5~2 Second
5) Working Air Pressure: 0.6-0.8 Mpa
6) Air Consumption: 600 NL /minute
7) Packaging Form:One piece Carton Wrapping (adhesive by hot-melt glue)

8) Packaging Material : Cardboard Carton Sheet


Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
