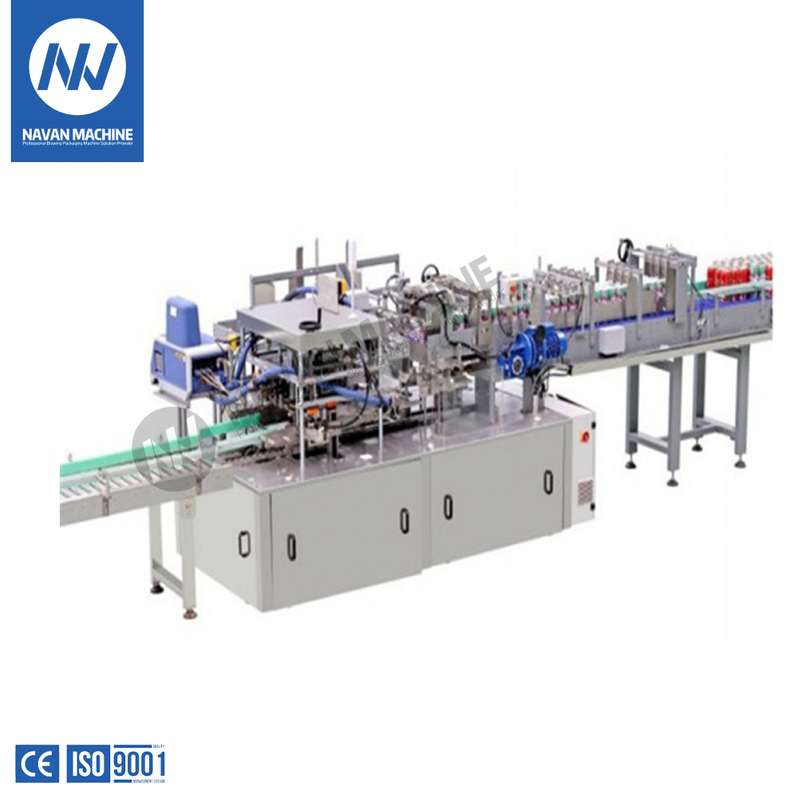

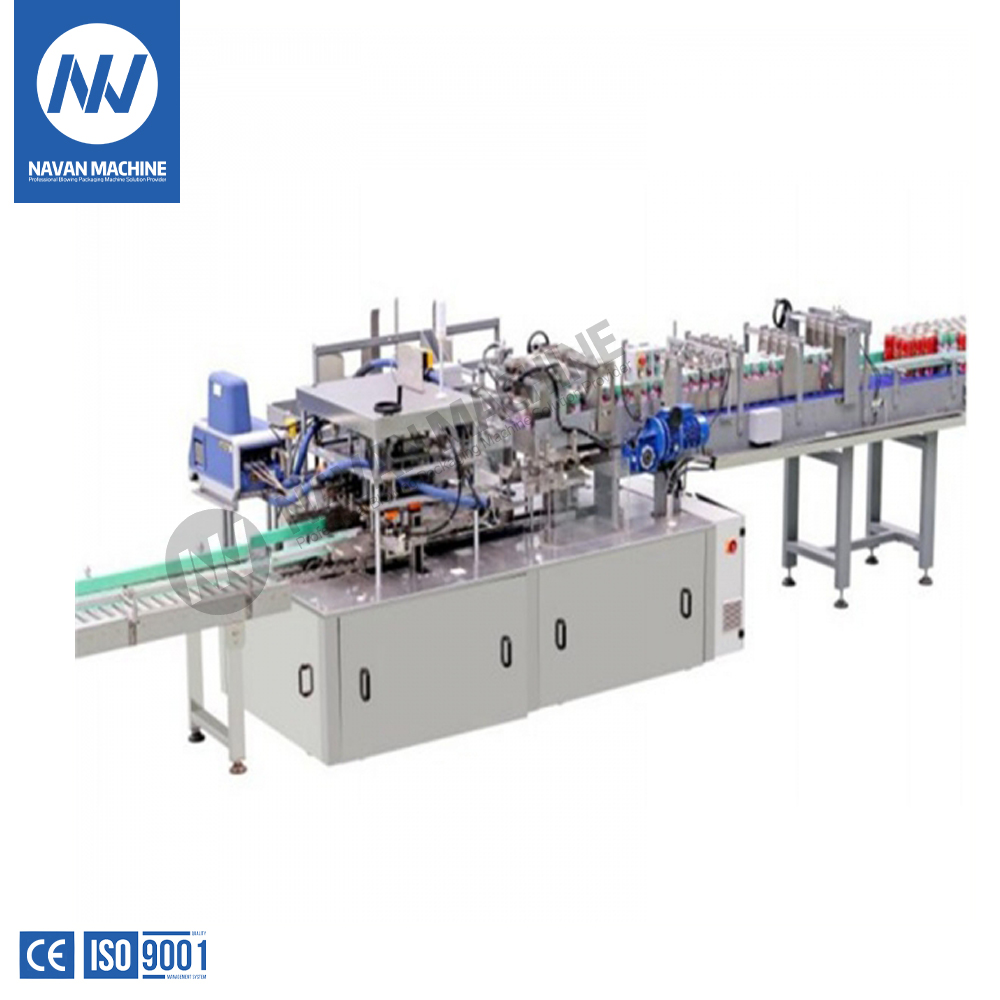

NV-ZX35 One-piece Carton Wrapping Machine Carton Packing Machine
One-piece Carton Wrapping Solution
Widely used in the industries such as bottled/canned water,beverage,beer,etc
Advanced cardboad one-time forming technology
Adopts well-known hot-melt adhesive equipment
Packing Speed: 30 Cartons / Minute
  • NV-ZX35

  • NAVAN MACHINE

Availability:

NV-ZX35 一片式纸箱裹包机


Brief Introduction
A high efficient packaging equipment, NV-ZX35 One-piece Carton Wrapping Machine is designed and manufactured with high automatic operation based on the Hot-melt Adhesive Glue. It can pack your products within customized carton sheet. The products after packaging are safely protected and beautiful in appearance.

Main Features
1) Specially design for carton packing for beer, beverage, bottled Water, medicament, food ect bottle production line.carton wrapping Saves 1/5 cost thantraditional packing type.
2) Machine adopts convergence system and touch screen to control every function of operation, can input, amend and memory different Packing specification data.
3) This machine adopts cardboard one-time forming, unique technology of pressing carton, carton forming more solid with beautiful packing effect, minimum labor intensity,the minimum requirements for cardboard.
4) Adopt known hot melt equipment, easy for operation, durable. Packingeffect is artistic and easy for store and transportation.
5) Delicate figure and save space and safe.


Product Specification
1) Packaging Product :380ml/500ml PET Bottled Water and Tin Canned Beverage  (or other special containers)
2) Max Packaging Carton Dimension: 550<L+W+H<1000 mm

Machine Specification
1) Machine Dimension: 5130×2600×1800 mm
2) Packaging Speed:30 Packs/Minute
3) Voltage/Power: 380V /7KW
4) Hot Melt Adesive Solidify Time: 1.5~2 Second
5) Working Air Pressure: 0.6-0.8 Mpa
6) Air Consumption: 600 NL /minute
7) Packaging Form:One piece Carton Wrapping (adhesive by hot-melt glue)

8) Packaging Material : Cardboard Carton Sheet



Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
