Rotary Blowing-Labeling-Filling-Capping Combiblock Machines, innovation of new PET blowing/filling solution, integrate blow molding machine ,labeling machine and filling/capping machine into one single Combiblock .
Based on the full experience of turnkey projects, we have integrated the blowing and filling technologies to become one fundamental structure of combi-block technology. Th rough the innovation of online molding technology, blowing and filling technology, reduces additional equipment such as conveying, empty bottles sort, stack and storage and improving the sanitary condition of packaging, reducing the cross contamination.Comparing with traditional technology, the whole line efficiency increased 20%, equipment investment saving more than 20%, floor space saving 35%, energy consumption decreased more than 30%, water saving more than 35%, cost saving and spare parts consumption decreased about 50%, So as to reduce the general production cost ofbeverage enterprises.
NBLFC Series
NAVAN MACHINE
8422301090
| Capacity: | Please select |
|---|---|
| Bottle volume: | Please select |
| Application: | Please select |

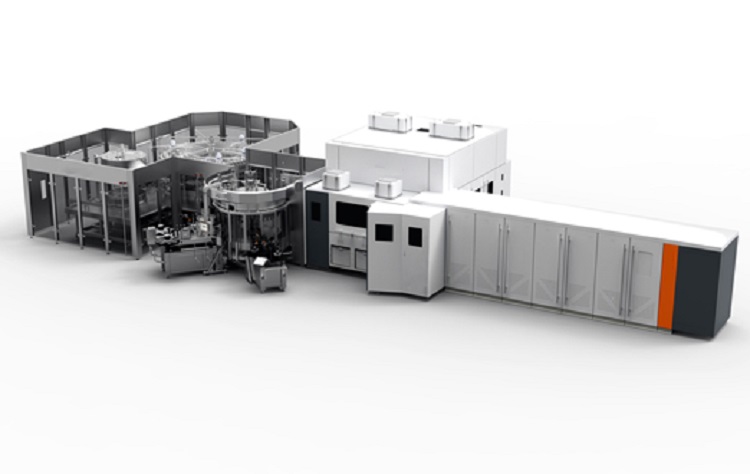

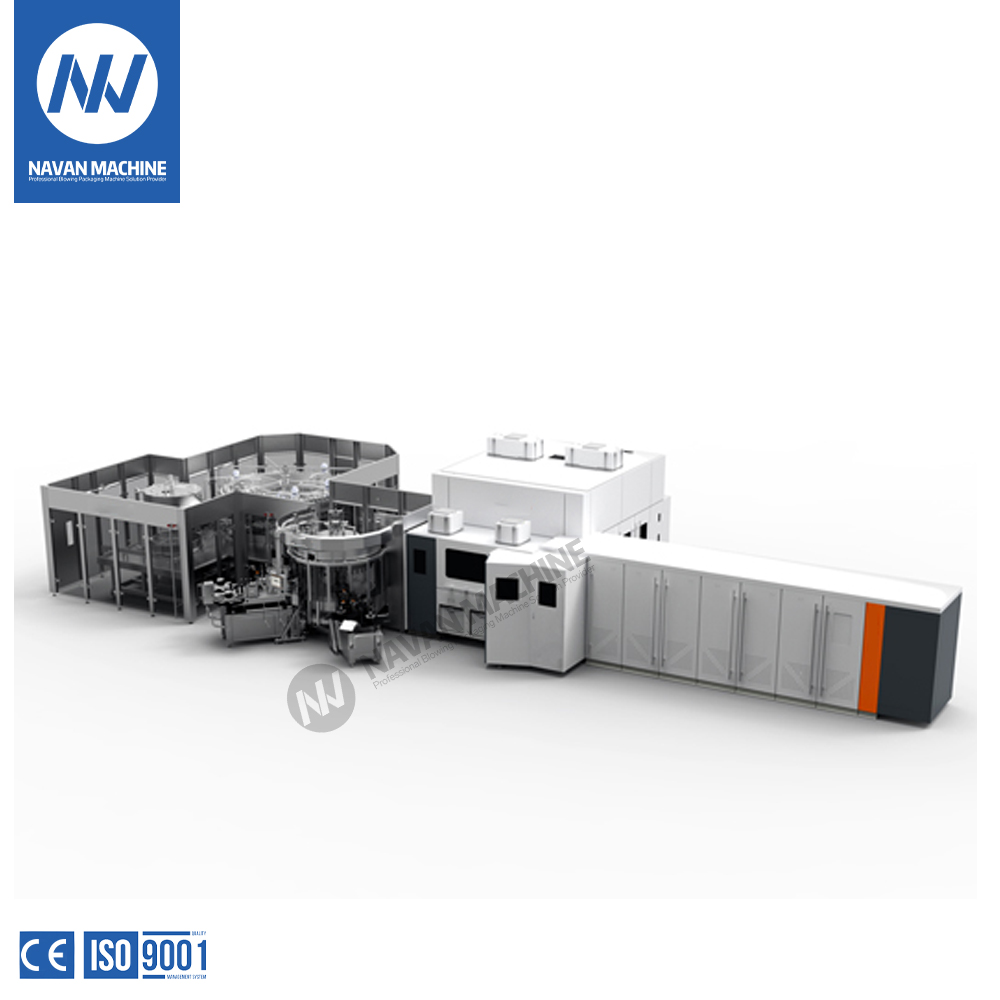

Navan water Blowing-Labeling-Filling-Capping Combiblock Machines production line
In view of the development trend of integrated, integrated, economical, convenient and intelligent equipment, on the basis of years of research and development and through independent innovation, collaborative innovation and open innovation, New MeiXing has created the StarBloc super all-in-one solution with leading technology and excellent performance.
NavanBloc All-in-One is an all-in-one machine that combines four modules of blowing, labeling, filling and capping. It is suitable for PET bottles of 200-2500ml with a maximum capacity of 48,000 bottles per hour to meet the high quality production requirements of different products such as water, beverages, condiments and dairy products.
1. Preform feed-in and unscrambling
It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.
2. Heater Unit
It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.
3. Blowing unit
Special manipulator delivers heated preforms to moulds along certain cam curve. After stretch pre-blow, the preform will be blown to bottles by connecting high pressure compressed air. Special manipulator sends the finished bottle out along certain cam curve.
4. Filling unit
The blow-made bottles are transported to filler via starwheel. After entering filler, the bottle is held by gripper of lifting cylinder and realizes up and down under effect of cam.
The filler adopts gravity filling way. Bottle mouth rises to open filling valves and start filling. While product rises and plugs up air return hole, the filling will be finished. After filling, bottle mouth moves down and leaves the filling valve.
5. Capping unit
Bottles enter capper via transition starwheel. The anti-rotation knife of capper blocks bottle neck to keep bottle vertical and prevent rotation. Capping heads keep revolution and do rotation. Under effect of cam, the action of gripping cap, sleeve cap, screwing cap and discharging cap to finish the whole capping course. The finished bottles are conveyed via bottle-out starwheel onto bottle-out conveyor, and then are sent out of the combiblock. The whole machine adopts console sealing windows, beautiful and decent.
Navan water Blowing-Labeling-Filling-Capping Combiblock Machines production line
In view of the development trend of integrated, integrated, economical, convenient and intelligent equipment, on the basis of years of research and development and through independent innovation, collaborative innovation and open innovation, New MeiXing has created the StarBloc super all-in-one solution with leading technology and excellent performance.
NavanBloc All-in-One is an all-in-one machine that combines four modules of blowing, labeling, filling and capping. It is suitable for PET bottles of 200-2500ml with a maximum capacity of 48,000 bottles per hour to meet the high quality production requirements of different products such as water, beverages, condiments and dairy products.
1. Preform feed-in and unscrambling
It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.
2. Heater Unit
It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.
3. Blowing unit
Special manipulator delivers heated preforms to moulds along certain cam curve. After stretch pre-blow, the preform will be blown to bottles by connecting high pressure compressed air. Special manipulator sends the finished bottle out along certain cam curve.
4. Filling unit
The blow-made bottles are transported to filler via starwheel. After entering filler, the bottle is held by gripper of lifting cylinder and realizes up and down under effect of cam.
The filler adopts gravity filling way. Bottle mouth rises to open filling valves and start filling. While product rises and plugs up air return hole, the filling will be finished. After filling, bottle mouth moves down and leaves the filling valve.
5. Capping unit
Bottles enter capper via transition starwheel. The anti-rotation knife of capper blocks bottle neck to keep bottle vertical and prevent rotation. Capping heads keep revolution and do rotation. Under effect of cam, the action of gripping cap, sleeve cap, screwing cap and discharging cap to finish the whole capping course. The finished bottles are conveyed via bottle-out starwheel onto bottle-out conveyor, and then are sent out of the combiblock. The whole machine adopts console sealing windows, beautiful and decent.
