News Detail Views: 8 Author: Site Editor Publish Time: 2021-07-09 Origin: Site
In the past years , the kombucha drink is becoming more and more popopular in the Africa and Europe area . The market demands is booming development . To reach and help our clinets catch consumpers quickly .

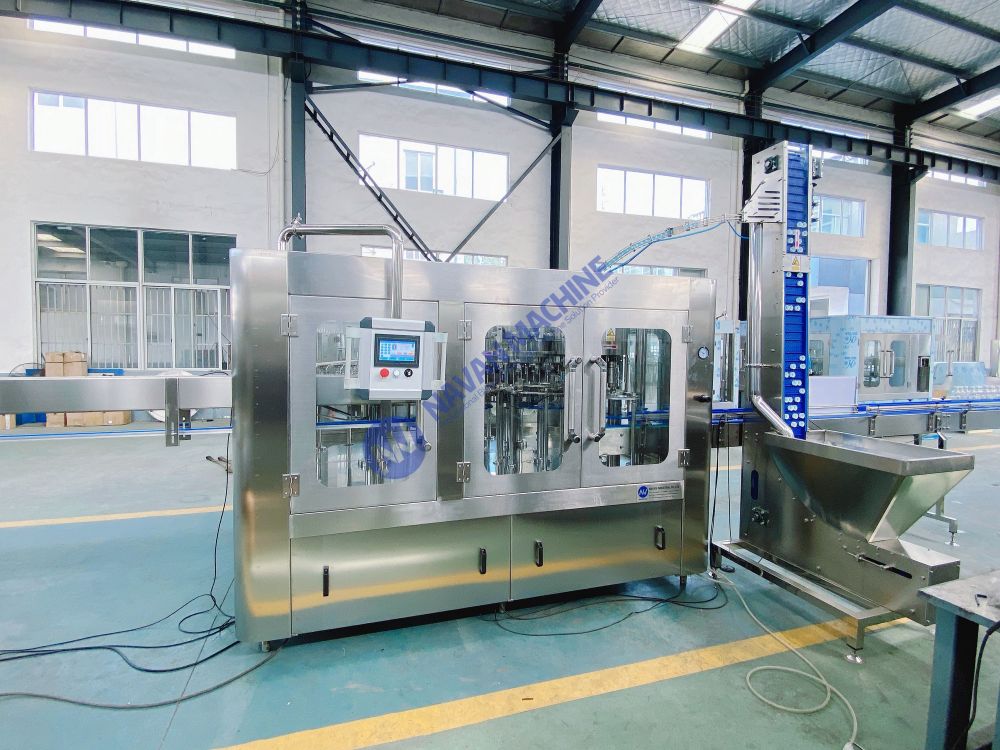

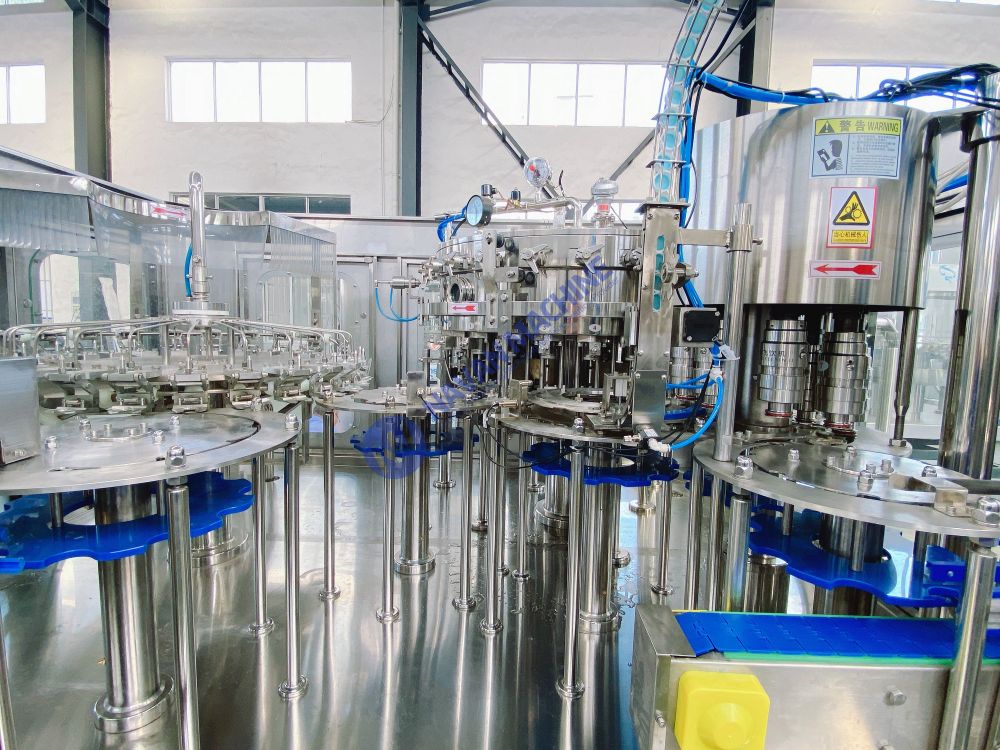

We design and manufacturing an fully advanced and customized bottling machines with basicbottle rinsing filling capping fuction .

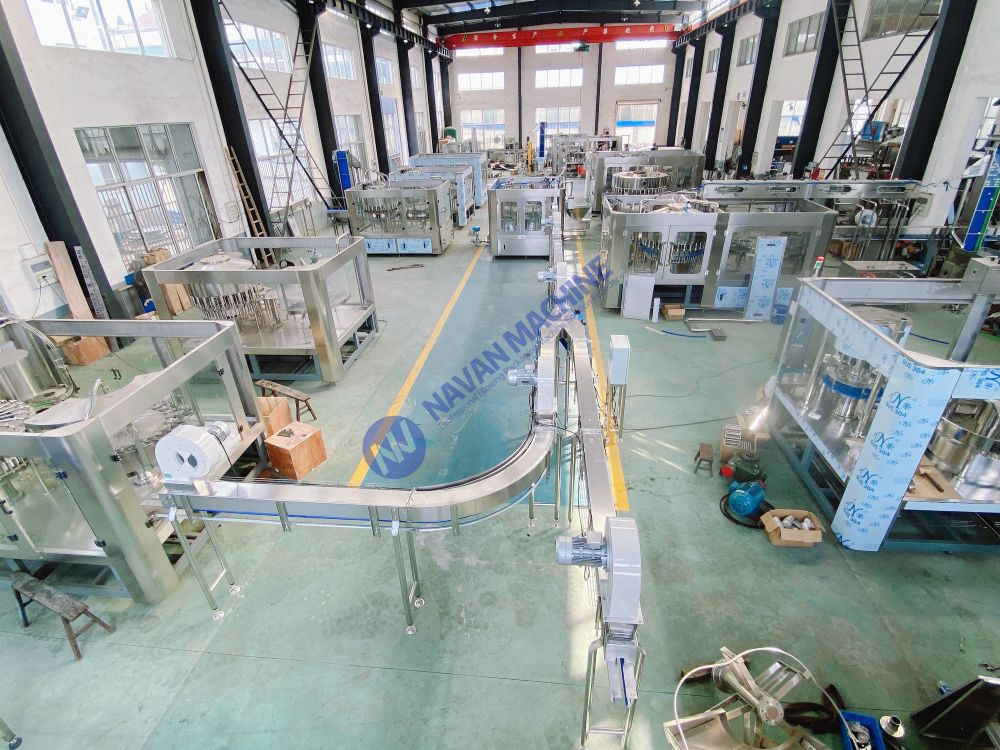

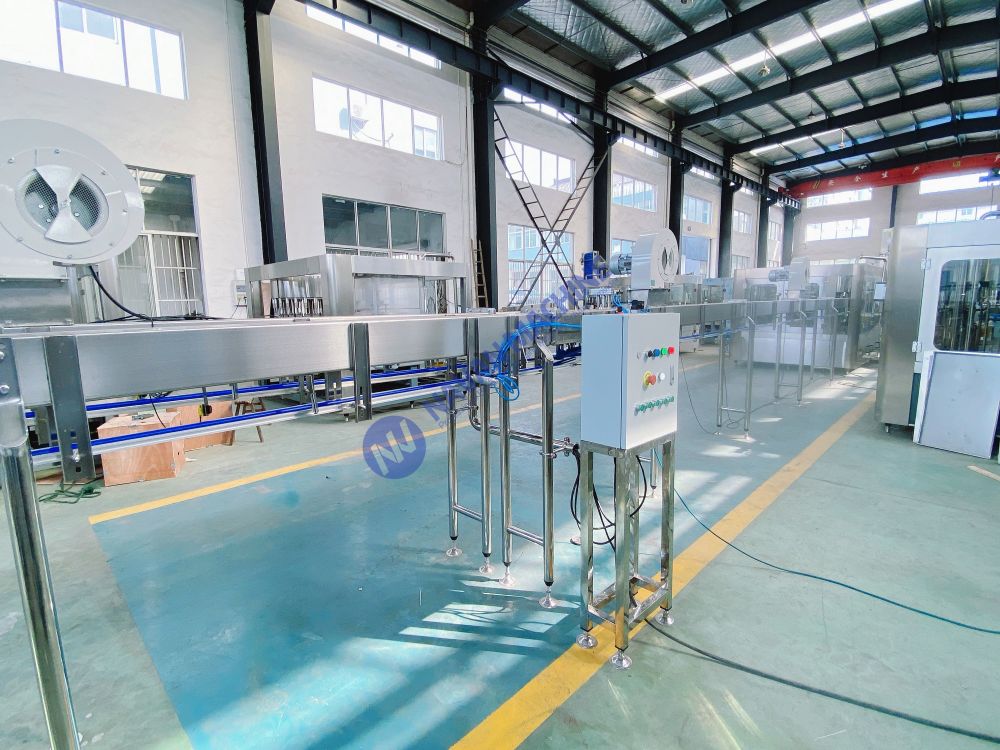

And to improve the production capacity , reduce investment on blowing machines , we design Y - type air conveyor switch device controlled by PLC , it allowed two line empty bottle input feeeding at the same time . Besides this we add Pneumatic film regulating valve to avoid liquid foam during filling ,larger the filling speed .
Model | CGFD8-8-4 | CGFD12-12-5/6 | CGFD18-18-6 | CGFD24-24-8 |
Price / FOB SHANGHAI | 13500USD | 19500USD | 24500USD | 37500USD |
Application | Soda water , sparkling water , Govas, cola etc ...carbonated drink | |||
Number of washing, filling and capping heads | 8-8-4 | 12-12-5/6 | 18-18-6 | 24-24-8 |
Production capacity(500ml) | 2000 | 4000 | 6000-7000 | 10000-12000 |
Filling precision | ≤±5mm(liquid level) | ≤±5mm(liquid level) | ≤±5mm(liquid level) | ≤±5mm(liquid level) |
User Ambient Conditions | Temperature:10~40℃; Humidity: No dew | Temperature:10~40℃; Humidity: No dew | Temperature:10~40℃; Humidity: No dew | Temperature:10~40℃; Humidity: No dew |
Suitable bottle specification | Volume=100-2000ml Diameter φ=50-100 Bottle height H=150 ~340mm | Volume=100-2500ml Diameter φ=50-108 Bottle height H=150 ~350mm | ||
Bottle type | Plastic bottle / PET Bottle
| Plastic bottle / PET Bottle
| Plastic bottle / PET Bottle
| Plastic bottle / PET Bottle
|
Bottle neck/Cap Style | Plastic Screw Cap φ=20-50
| Plastic Screw Cap φ=20-50
| Plastic Screw Cap φ=20-50
| Plastic Screw Cap φ=20-50
|
Machine material | Food stage SS304 OR SS316 | Food stage SS304 OR SS316 | Food stage SS304 OR SS316 | Food stage SS304 OR SS316 |
Air source pressure (Mpa) | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 |
Filling way/principle | Isobaric filling | |||
Motor power(kw) | Main motor 1.9kw | Main motor 3.5kw | Main motor 4.0kw | Main motor 4.8kw |
Control System | SIMENS PLC+ TOUCH SCREEN | SIMENS PLC+ TOUCH SCREEN | SIMENS PLC+ TOUCH SCREEN | SIMENS PLC+ TOUCH SCREEN |
Features | No Bottle No Filling No Bottle No Capping | No Bottle No Filling No Bottle No Capping | No Bottle No Filling No Bottle No Capping | No Bottle No Filling No Bottle No Capping |
Power Supply | Voltage:220V~415V,3phase; Frequency:50HZ/60HZ or your requirement | Voltage:220V~415V,3phase; Frequency:50HZ/60HZ or your requirement | Voltage:220V~415V,3phase; Frequency:50HZ/60HZ or your requirement | Voltage:220V~415V,3phase; Frequency:50HZ/60HZ or your requirement |
Overall dimensions (mm) | 1900*1420*2000 | 2050*1800*2400 | 2580*2100*2200 | 2780*2200*2200 |
Weight (kg) | 1500 | 2500 | 3500 | 4500 |
