Semi Automatic 400 - 1200BPH 3 - 6L PET Bottle Stretch Blow Moilding Machine

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

Navan 3L-6L Semi Automatic Blow Molding Machine factory and 3L-6L Semi Automatic Blow Molding Machine wholesalers, We produce NB series of fully automatic and semi-automatic PET blow molding machines with production capacity from 400 to 8000 bottles per hour to satisfy different customers' requirements.

Our products Certificated by CE , ISO . In order to meet customers’ costomized requirements, factory offer blowing machine making capacity ranges from 50ml to 30L, suitable for all kinds of PET bottles such as mineral water, carbonated beverages, fruit juice, teas, edible oils cosmetics, detergents, and wide-mouth jar, etc. Navan Machinery is an ideal choice for PET packaging enterprises.

  • NB-500 Series

  • NAVAN MACHINE

  • 8477309000

Capacity:
Please select
Bottle volume:
Please select
Application:
Availability:

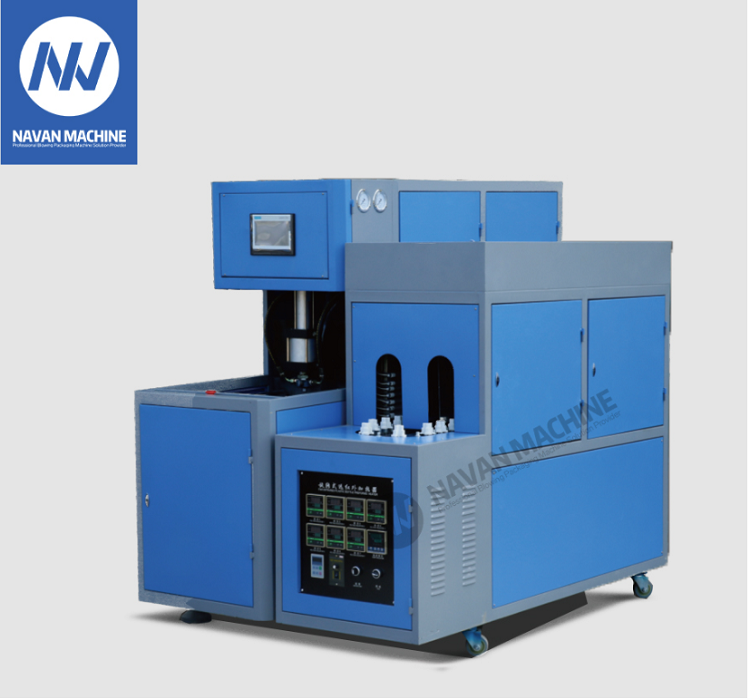

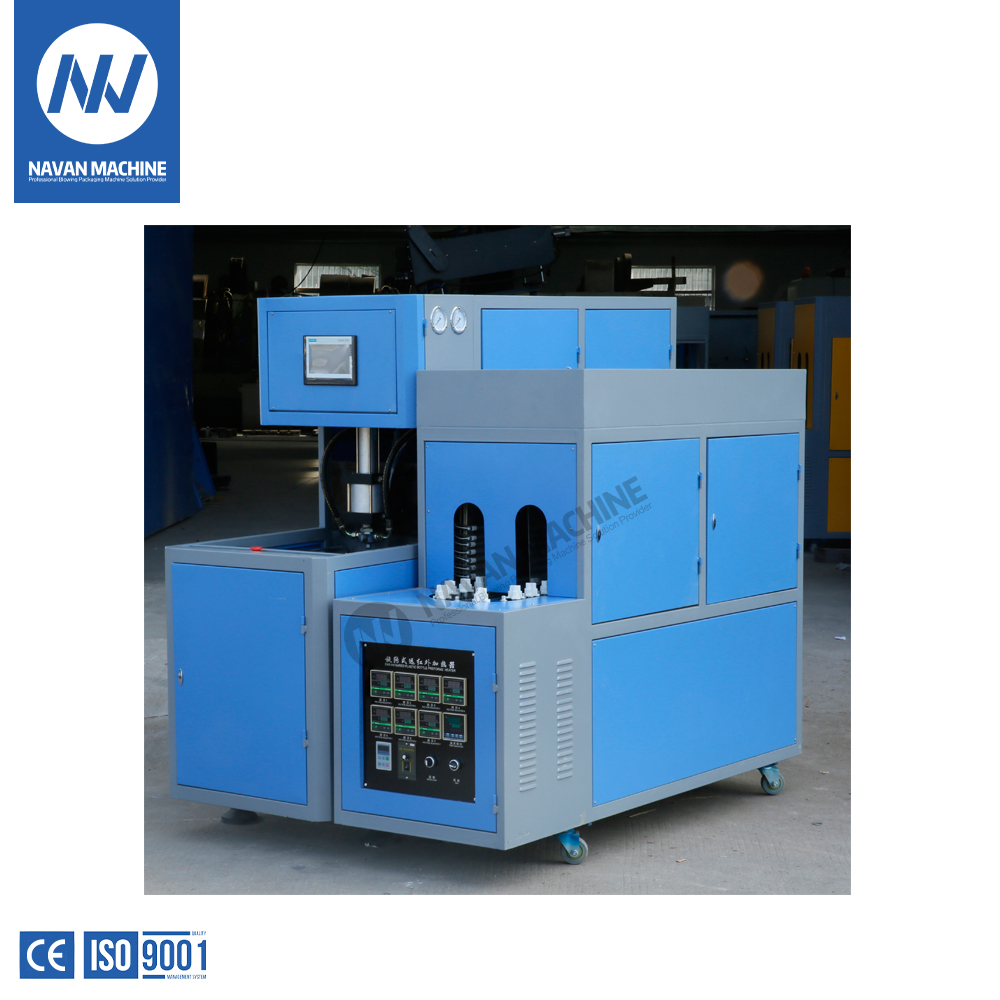

Semi Automatic 400 - 1200BPH 3 - 6L PET Bottle Stretch Blow Moilding Machine


The semi-automatic blow molding machine meets CE standards.

It is able to blow carbonated beverage bottles, mineral water bottles, cosmetic bottles, pesticide bottles and jars, etc


Controlled by a microcomputer, the technical parameters involved can be controlled more accurately.


Adopting advanced touch screen control system, simple, fast and stable operation.


Using adjustable far-infrared heating tube, heating temperature is constant, easy to debug.Independent temperature control to ensure that the preform baking reaches the ideal state.


Adopting double-boom five-point four-rod clamping structure, sprocket mold adjustment, high-hardness cast iron or steel plate, high mold clamping force, wear resistance, tight and fine clamping seam.


The  simple and safe operation , Easy installation , only one person one machine , no special training , simple and convenient.

Semi Automatic 400 - 1200BPH 3 - 6L PET Bottle Stretch Blow Moilding Machine

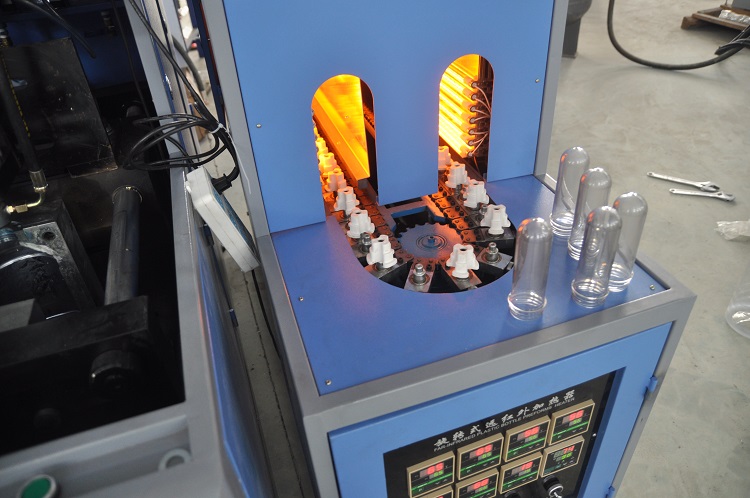

New Heating System.

*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.

*Cycle air-cooling system keeps the oven temperature constantly.

Semi Automatic 400 - 1200BPH 3 - 6L PET Bottle Stretch Blow Moilding Machine

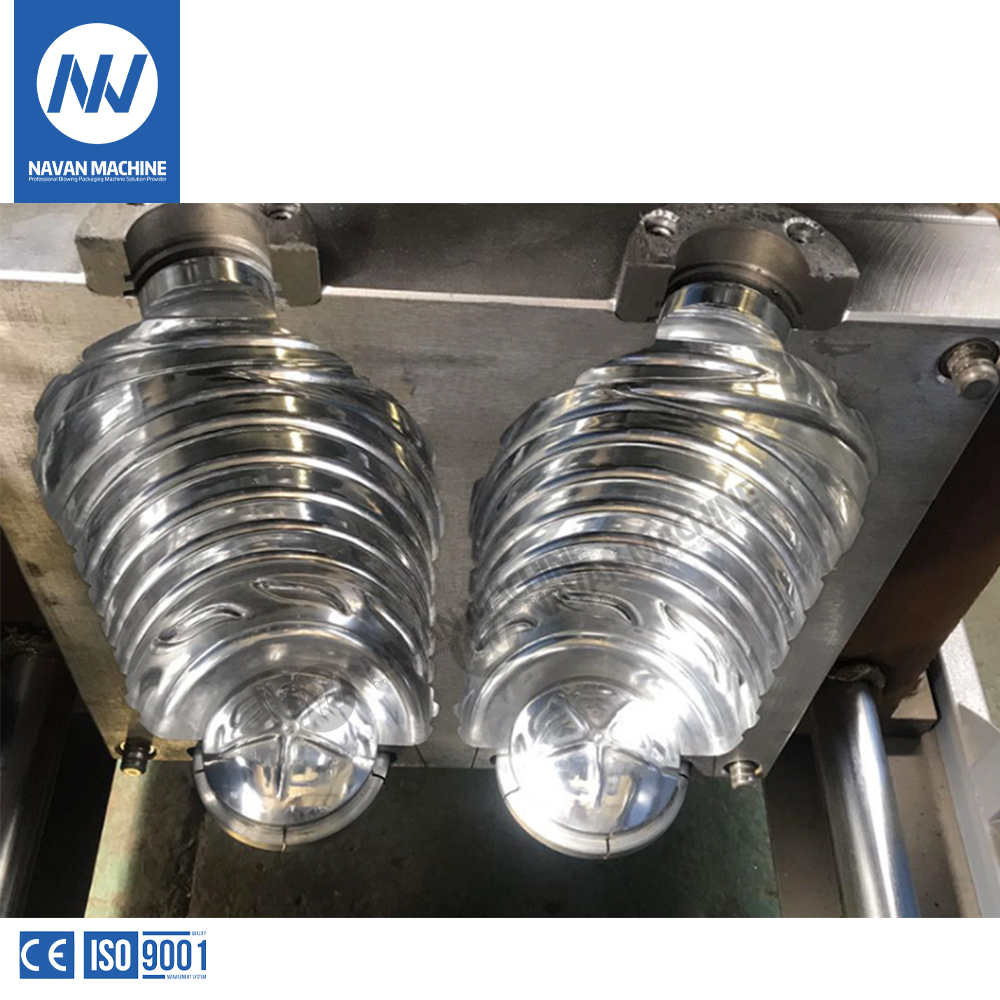

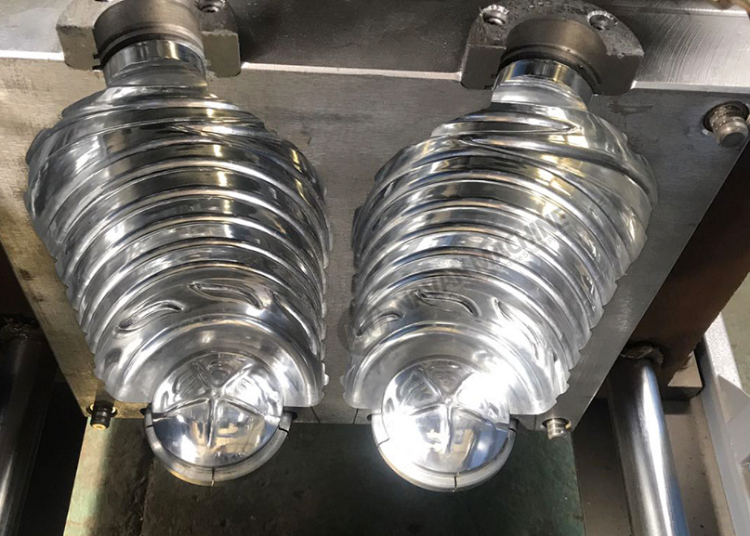

Easy To Change Bottle Shape.

* Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.

Semi Automatic 400 - 1200BPH 3 - 6L PET Bottle Stretch Blow Moilding Machine

Intelligent Human-Machine Interface.

*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday

*Failure warning and troubleshooting.

Semi Automatic 400 - 1200BPH 3 - 6L PET Bottle Stretch Blow Moilding Machine


Container

Max Container Volume Itr

6

Max, Neck Diameter   mm

120

Max Container Diameter  mm

185

Max Container Height mm

380


  Model
NB-500
NB-6L-2




Molding
Clamping Force kg
25000
30000
Clamping Stroke mm
215
215
Stretching strok mm
400
400
Bottom Stroke mm
\
\
Cavity Spacing mm
300
90-120
Number of Cavity Cavities
1-2
1-2
Carriage Unit pcs
72
96
Theoretical Output
bph
400-1100
800-1200

Electrical System
Total Power kw
18
42
Heating Power kw
32x0.5KW=16
40x1KW=40
Number of Lamp Layers Layers
8
10


Air System
Operating Pressure kg/cm²
7-9
7-9
Low Pressure Air Consumpt Itr/min
600
800
Blowing Pressure kg/cm²
20-30
20-30
High Pressure Air Consumpt Itr/min
1200
1600


Chiller
Operating Pressure kg/cm²
2-4
2-4
Temperature Range ℃
10-12
10-12
Consumption kcal/hr
1000
2000
Flow Rate Itr/min
100
100

Machine(Blower)
Main machine dimensions mm(L*W*H)
1900 x650x1800
2000 x780x1800
Main Machine Weight kg
750
800

Machine(Heater)
Heater Dimensions mm(L*W*H)
1700 x670x1600
2170 x670x1600
Heater Weight kg
350
400

Semi Automatic 400 - 1200BPH 3 - 6L PET Bottle Stretch Blow Moilding Machine

Navan Filling Machine1Navan Filling Machine2Navan Filling Machine3
